Montageplatte, angled DD
Item no. 7085111 | EAN 4012195163305
- Product description
-

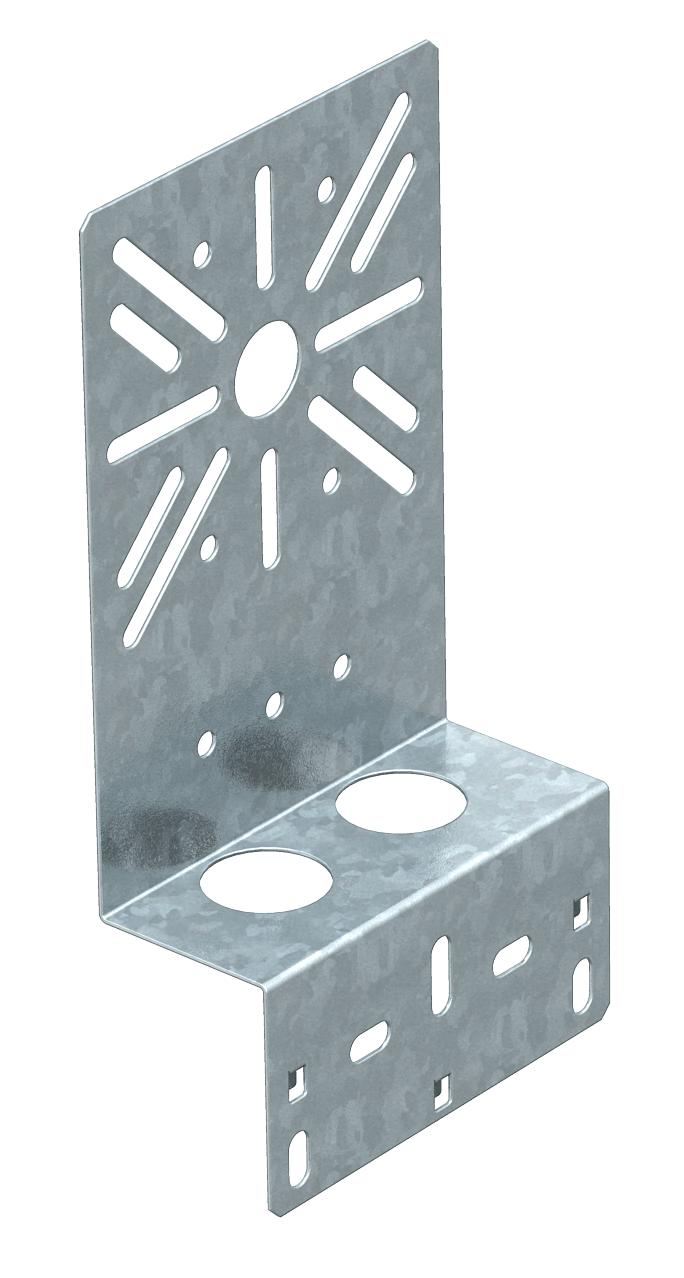

Product descriptionAngled mounting plate, for fastening on the side rail of the cable tray.
-
- Technical data
-
Technical data

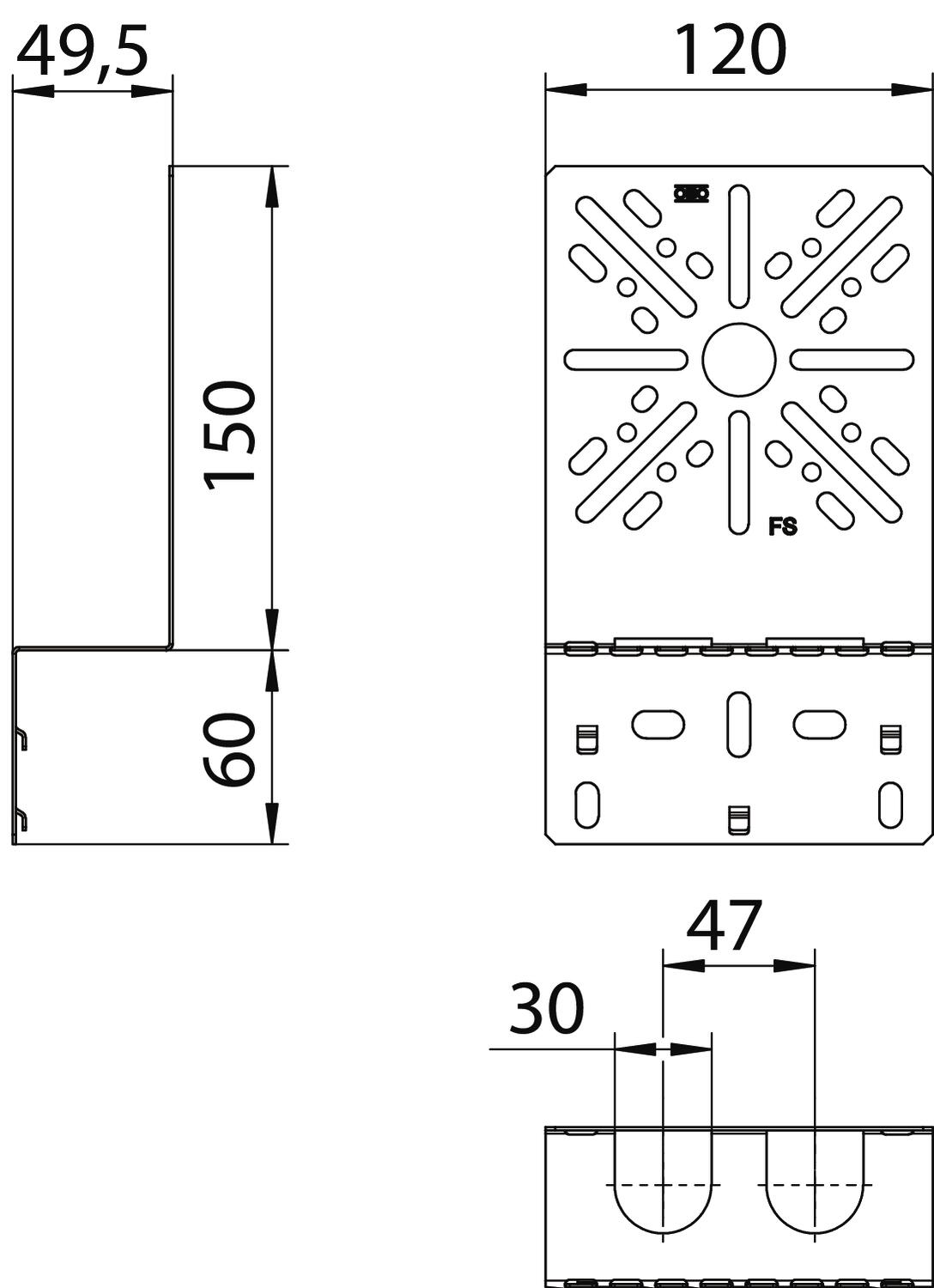

Colour zinc Dimension 210x120 Fastening type Screw fastening Height 210 mm Material Steel Plate thickness 1 mm Rustproof steel, pickled no Surface Strip galvanised zinc/aluminium, Double Dip Version for Vertical Width 120 mm Width 7,87 in - All types
- Downloads
-
Data sheet MP WI KL. DD / 7085111 , 0.19MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfEU declaration of conformity MP WI KL. DD / 7085111 , 0.11MB , pdfREACH Declaration of conformity MP WI KL. DD / 7085111 , 0.27MB , pdfRoHS Declaration of conformity MP WI KL. DD / 7085111 , 0.28MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
