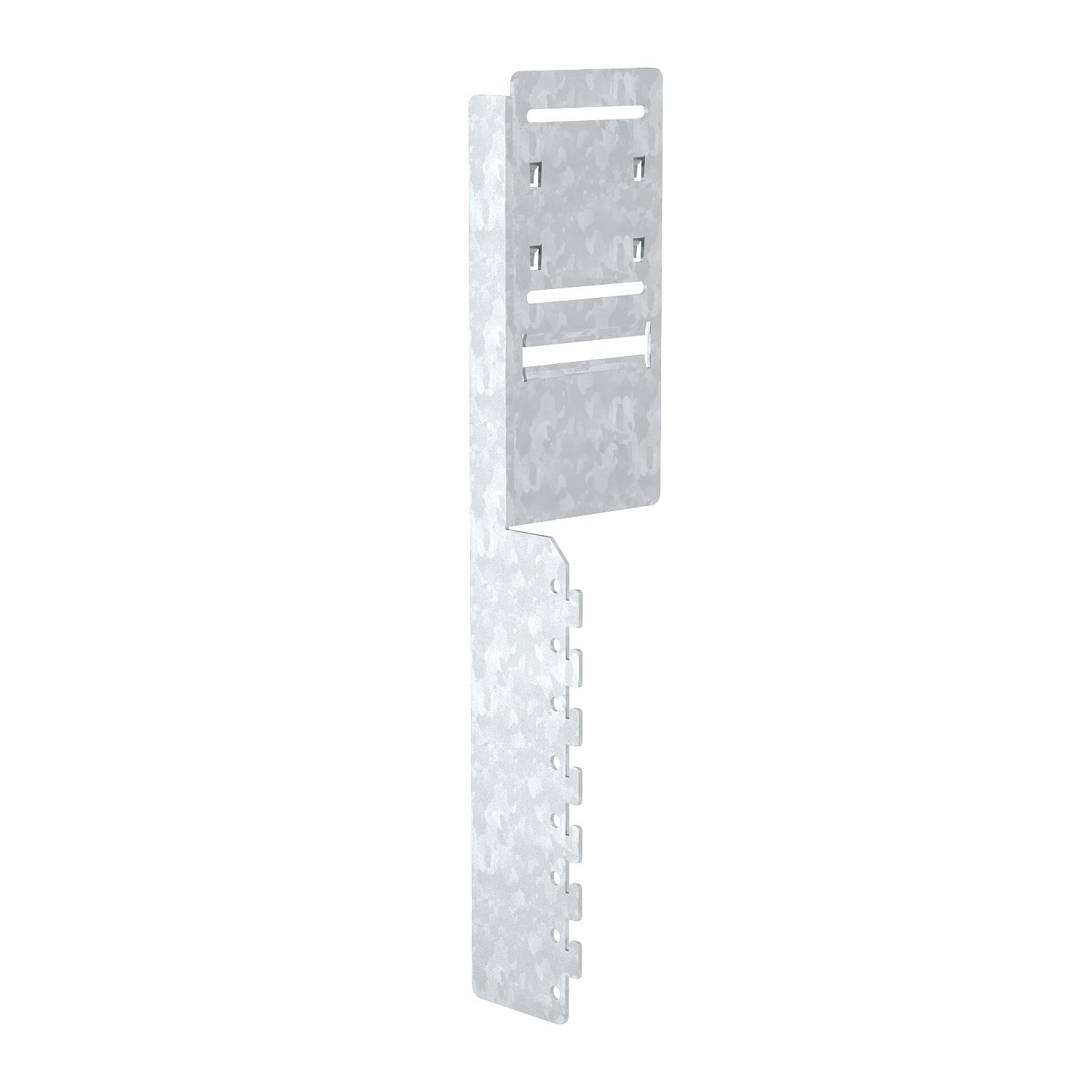

Mounting and connection profile for convection grids, trunking height 70 mm

Item no. 6279824 | EAN 4012195680802

Item no. / Types

for duct dimension

Product description

Product description

Mounting and connection profile for panel mounting of device installation trunking in conjunction with vertical convection grids. The installation and connection profile is locked onto the fixing panel and accepts the profile connector, type PVV/N2... vertically. Please observe the trunking dimensions.
The mesh slats are simply attached to the slat holder.

Technical data

Technical data

Dimension	99x400x68
Fastening type	Lockable
for duct dimension	70x210
Height	68 mm
Length	400 mm

Material	Steel
Surface	Strip galvanized
Trunking mounting	Attach and screw
Version for	Wall mounting
Width	99 mm

All types

All types

Types	for duct dimension	Item no.	Quantity	SSU
MVKG70130	70x130	6279820	piece	10 piece
MVKG70170	70x170	6279822	piece	10 piece
MVKG70210	70x210	6279824	piece	10 piece

Downloads

Data sheet MVKG70210 / 6279824 , 0.19MB , pdf

Catalogue Geräteeinbaukanäle und Säulen , 28.91MB , pdf

EU declaration of conformity MVKG70210 / 6279824 , 0.13MB , pdf

UK Declaration of Conformity MVKG70210 / 6279824 , 0.14MB , pdf

Download

Product graphic MVKG70210 / 6279824, 48.91 kB, jpg

Scale drawing MVKG70210 / 6279824, 48.42 kB, jpg

No invitation to tender text is available for this product.
