Mounting and connection profile for convection grids, trunking height 90 mm
Item no. 6279828 | EAN 4012195680826
- Product description
-
Product description

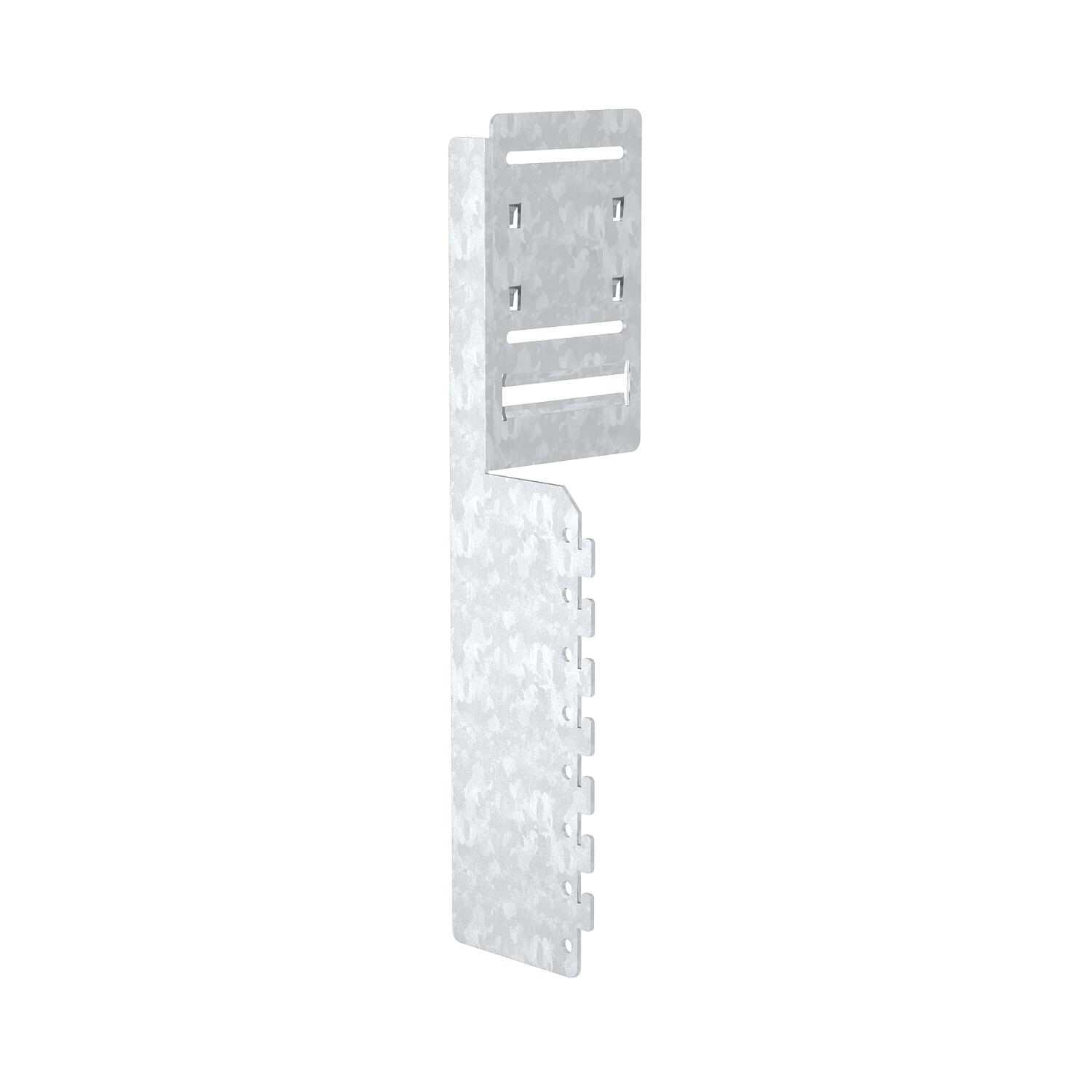

Mounting and connection profile for panel mounting of device installation trunking in conjunction with vertical convection grids. The installation and connection profile is locked onto the fixing panel and accepts the profile connector, type PVV/N2... vertically. Please observe the trunking dimensions.
The mesh slats are simply attached to the slat holder.
-
- Technical data
-
Technical data
Dimension 99x360x88 Fastening type Lockable for duct dimension 90x170 Height 88 mm Length 360 mm Material Steel Surface Strip galvanized Trunking mounting Attach and screw Version for Wall mounting Width 99 mm - All types
- Downloads
-
Data sheet MVKG90170 / 6279828 , 0.21MB , pdfDeclaration of conformity MVKG90170 / 6279828 , 0.13MB , pdfUK Declaration of Conformity MVKG90170 / 6279828 , 0.14MB , pdfNo invitation to tender text is available for this product.
