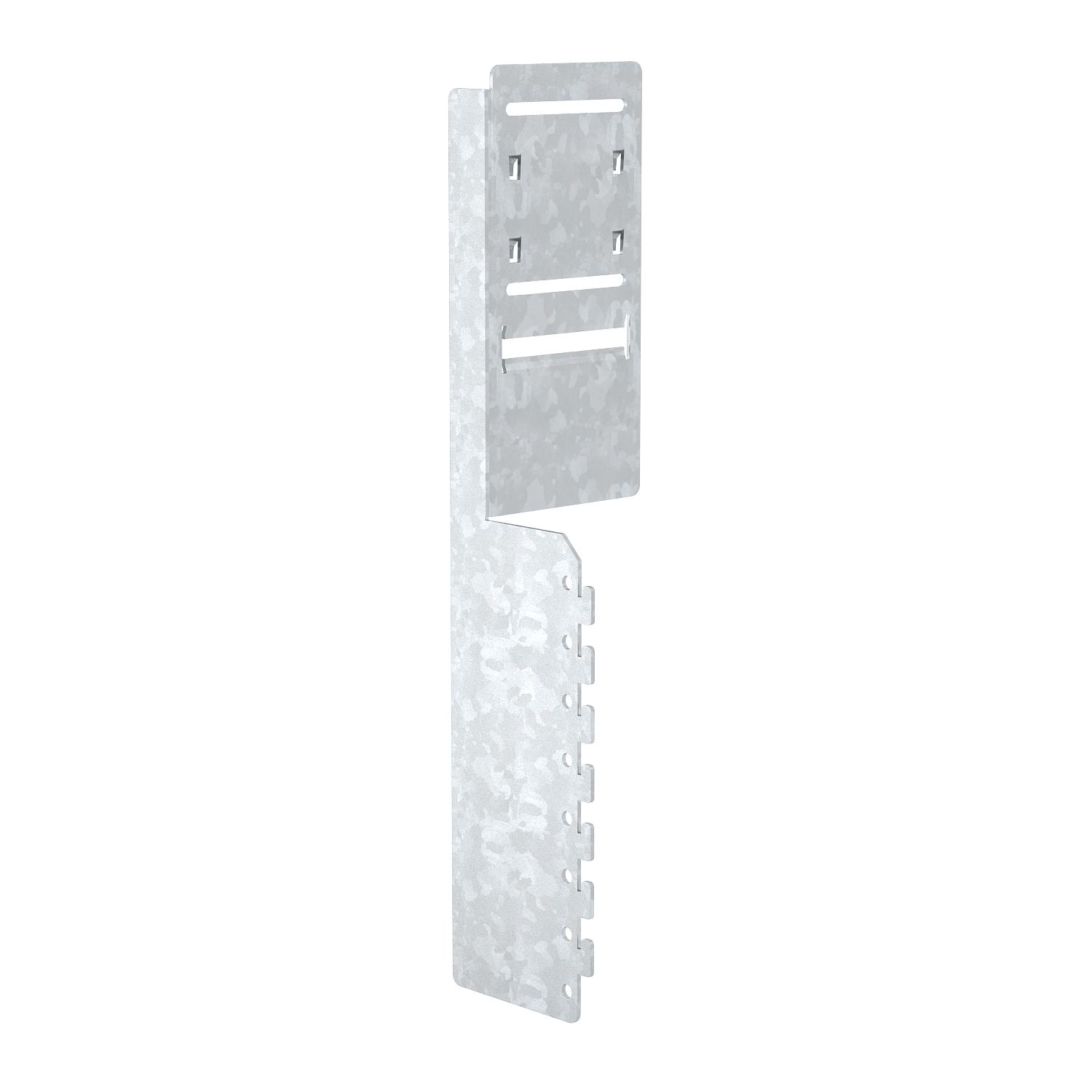

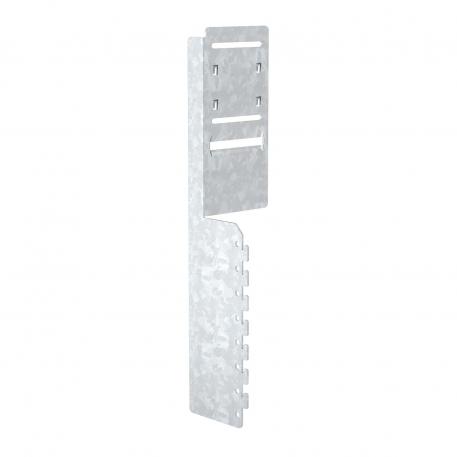

Mounting and connection profile for convection grids, trunking height 90 mm
Item no. 6279830 | EAN 4012195680857
- Product description
-
Product description
Mounting and connection profile for panel mounting of device installation trunking in conjunction with vertical convection grids. The installation and connection profile is locked onto the fixing panel and accepts the profile connector, type PVV/N2... vertically. Please observe the trunking dimensions.
The mesh slats are simply attached to the slat holder.
-
- Technical data
-
Technical data
Dimension 99x400x88 Fastening type Lockable for duct dimension 90x210 Height 88 mm Length 400 mm Material Steel Surface Strip galvanized Trunking mounting Attach and screw Version for Wall mounting Width 99 mm - All types
- Downloads
-
Data sheet MVKG90210 / 6279830 , 0.19MB , pdfDeclaration of conformity MVKG90210 / 6279830 , 0.13MB , pdfUK Declaration of Conformity MVKG90210 / 6279830 , 0.14MB , pdfNo invitation to tender text is available for this product.
