- Product description
-

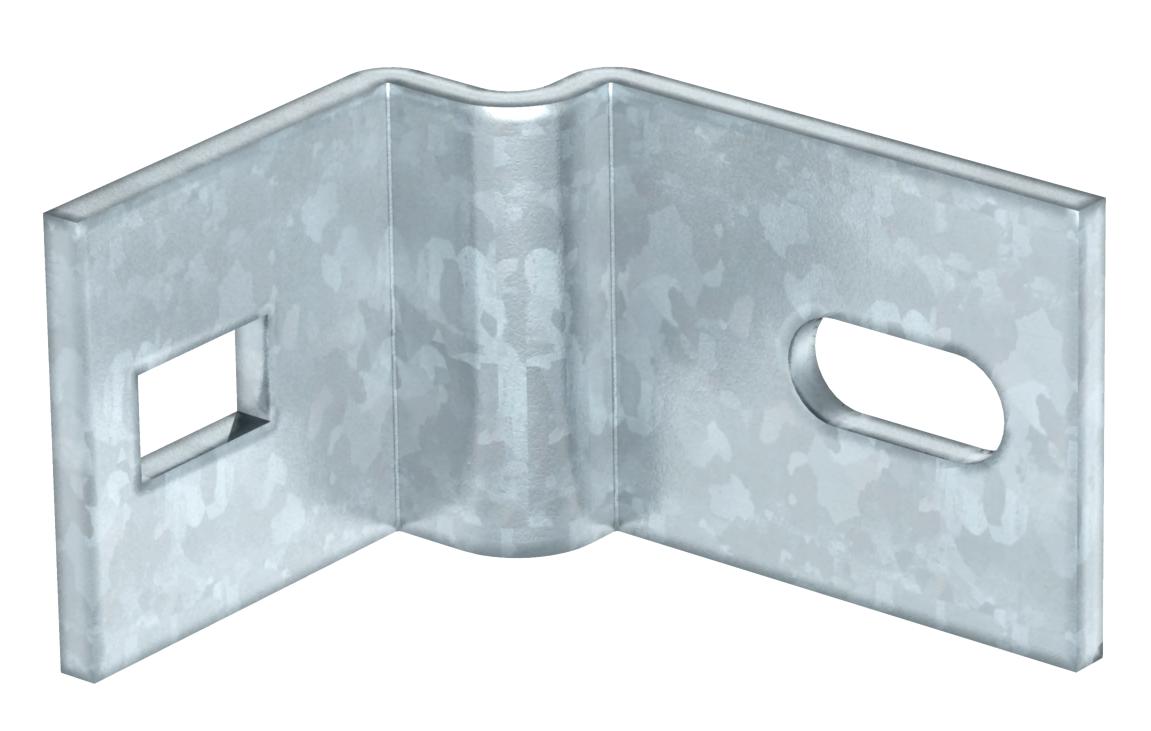

Product descriptionMounting angle for mounting IS 8 supports on the wall.
- Technical data
-
Technical data

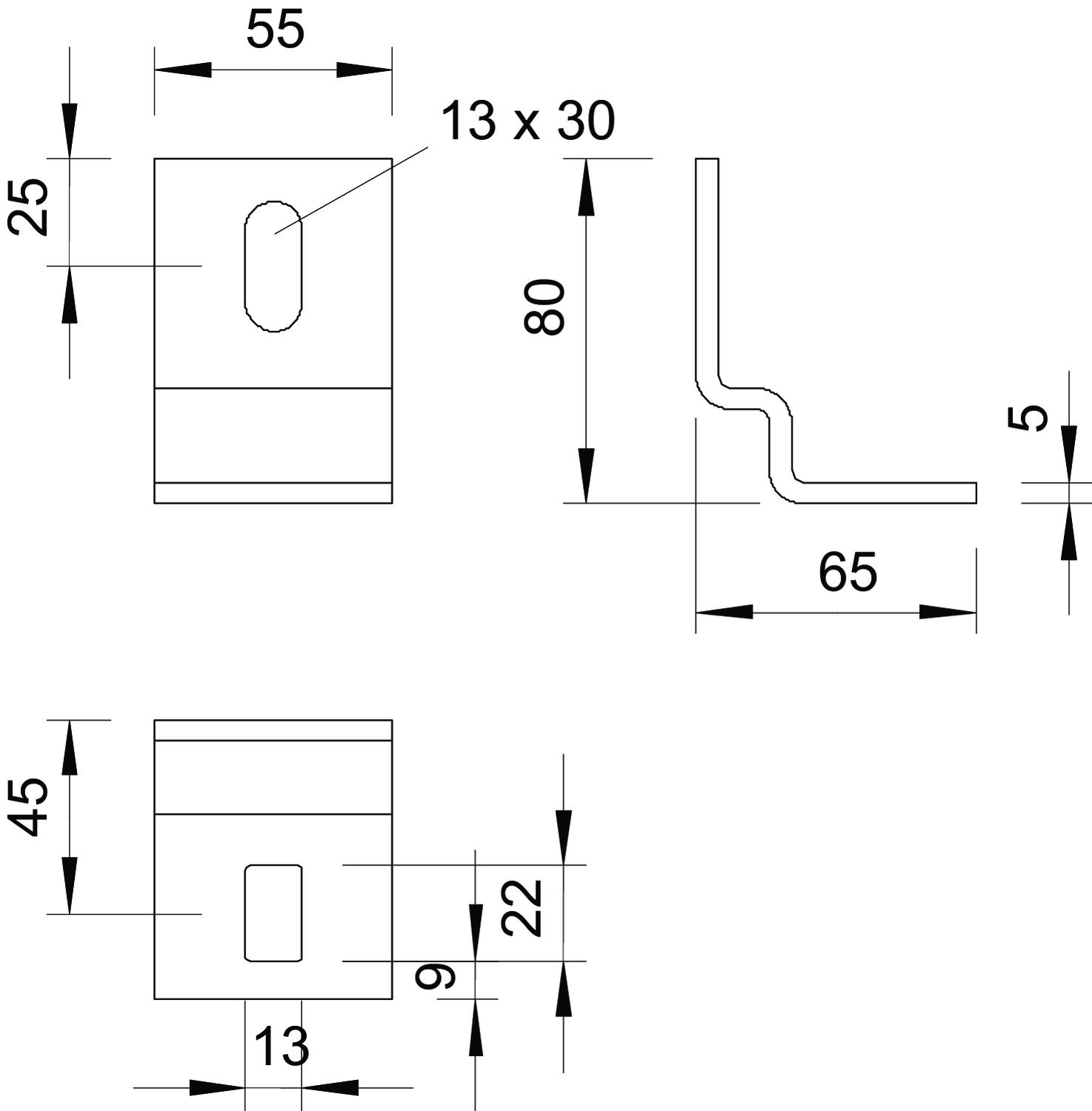

Adjustable no Colour zinc CO₂ Footprint (GWP) Cradle-to-Gate 0,744 kg CO₂e / 1 Piece Dimension 80x65 Height 65 mm Length 80 mm Maintain electrical functions yes Material Steel Suitable for profile shapes I profile Surface Hot-dip galvanised Version for Fastening bracket Width 55 mm With screw accessories yes - All types
- Downloads
-
Data sheet BW 80 55 FT / 6019528 , 0.16MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfEU declaration of conformity BW 80 55 FT / 6019528 , 0.13MB , pdfREACH Declaration of conformity BW 80 55 FT / 6019528 , 0.13MB , pdfRoHS Declaration of conformity BW 80 55 FT / 6019528 , 0.13MB , pdfMounting instructions Mounting instructions, U support systems , 0.04MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
