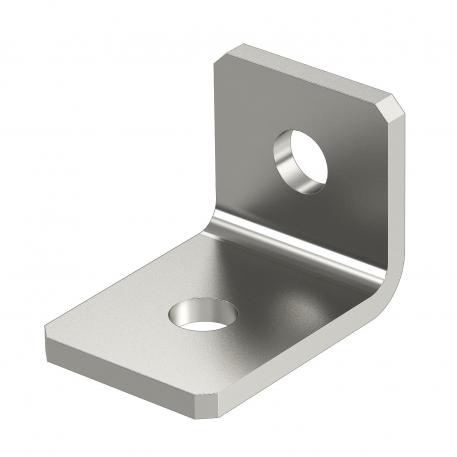

Mounting bracket, 90° with 2 holes A2
Item no. 1124699 | EAN 4012195804994
- Product description
-
Product descriptionMounting bracket with two holes to connect profile rails 41 x 41 mm and 41 x 21 mm at an angle of 90°.
-
- Technical data
-
Technical data

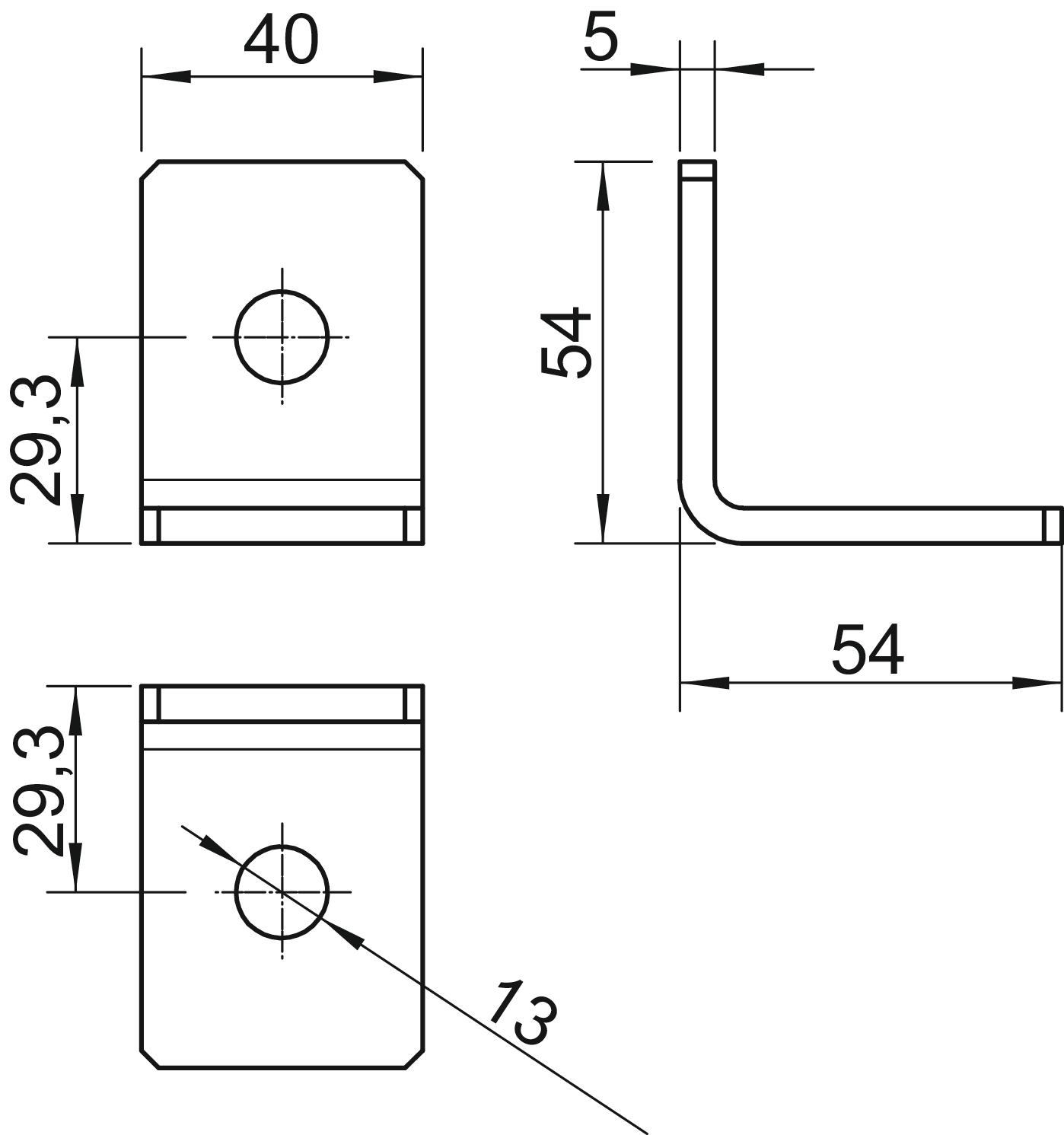

CO₂ Footprint (GWP) Cradle-to-Gate 0,708 kg CO₂e / 1 Piece Dimension 54x54x40x4 Height 54 mm Hole size 13 mm Length 54 mm Material Stainless steel Material thickness 4 mm Rustproof steel, pickled no Suitable for profile shapes C profile Surface Bright, treated Version for 90° angle Width 40 mm With screw accessories no - All types
- Downloads
-
Data sheet GMS 2 VW 90 A2 / 1124699 , 0.18MB , pdfBrochure Rail systems , 2.10MB , pdfEU declaration of conformity GMS 2 VW 90 A2 / 1124699 , 0.04MB , pdf
