- Product description
-
Product description

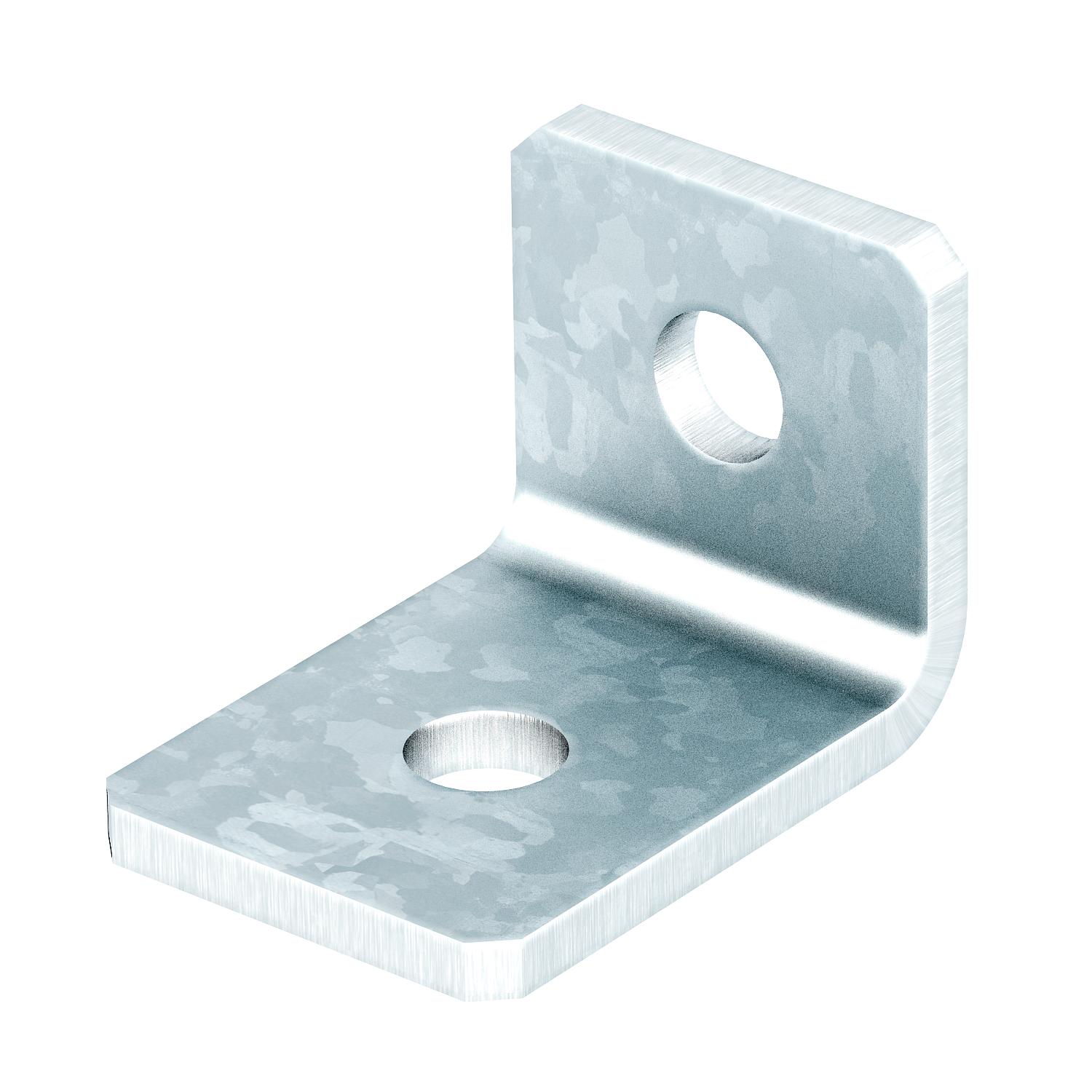

Mounting bracket with two holes to connect profile rails 41 x 41 mm and 41 x 21 mm at an angle of 90°.
-
- Technical data
-
Technical data

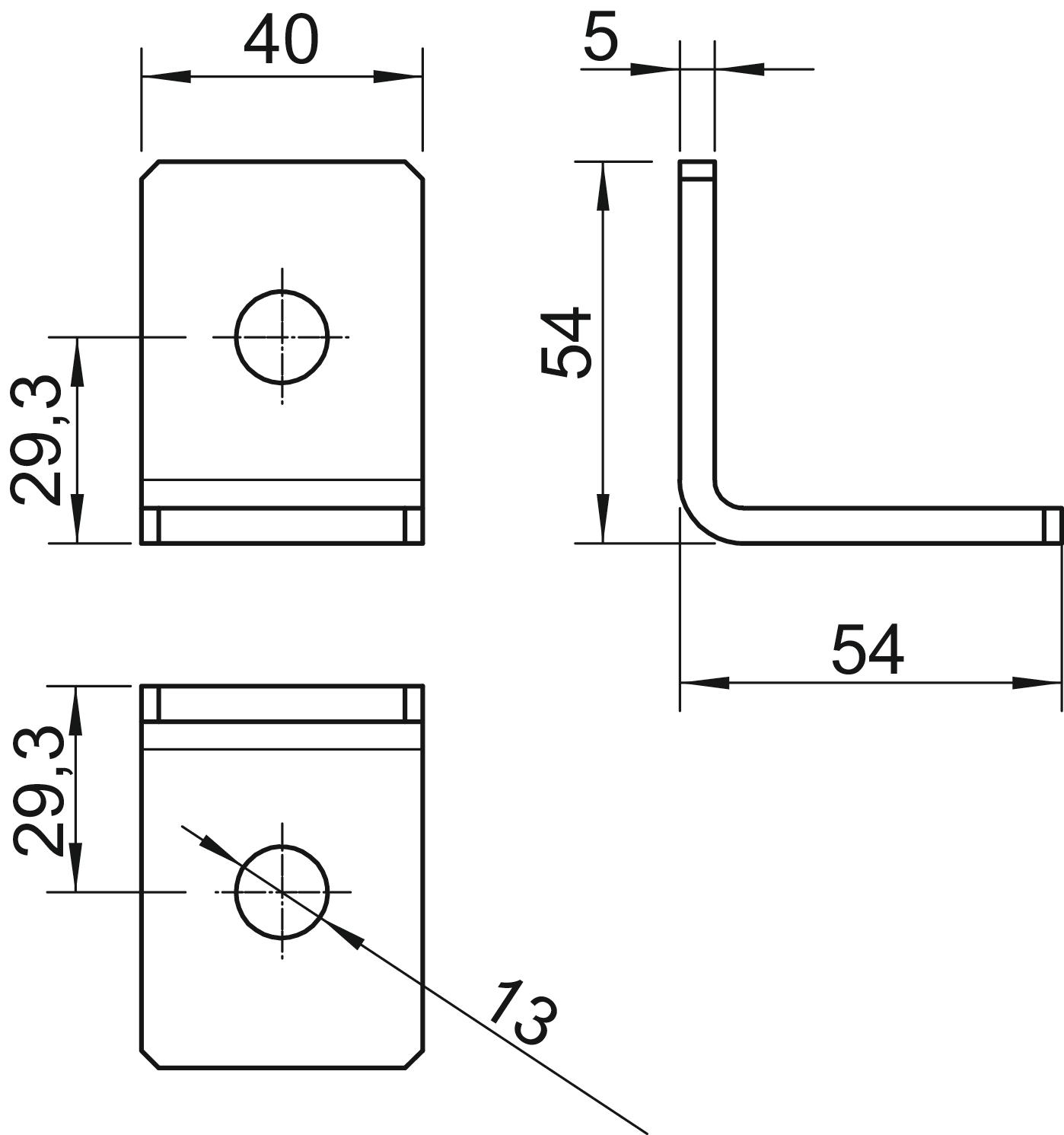

Dimension 54x54x40x5 Hole size 13 mm Material Steel Material thickness 5 mm Rustproof steel, pickled no Suitable for profile shapes C profile Surface Hot-dip galvanised Version for 90° angle With screw accessories no Dimensions
Height 54 mm Length 54 mm Width 40 mm - All types
- Downloads
-
Data sheet GMS 2 VW 90 FT / 1124659 , 0.21MB , pdfBrochure Rail systems , 2.10MB , pdfDeclaration of conformity GMS 2 VW 90 FT / 1124659 , 0.04MB , pdfREACH Declaration of conformity GMS 2 VW 90 FT / 1124659 , 0.12MB , pdfRoHS Declaration of conformity GMS 2 VW 90 FT / 1124659 , 0.12MB , pdf
