Mounting bracket, 90° with 3 holes FT
Item no. 1124661 | EAN 4012195486107
- Product description
-
Product description
Mounting bracket with three holes to connect profile rails 41 x 41 mm and 41 x 21 mm at an angle of 90°.
-
- Technical data
-
Technical data

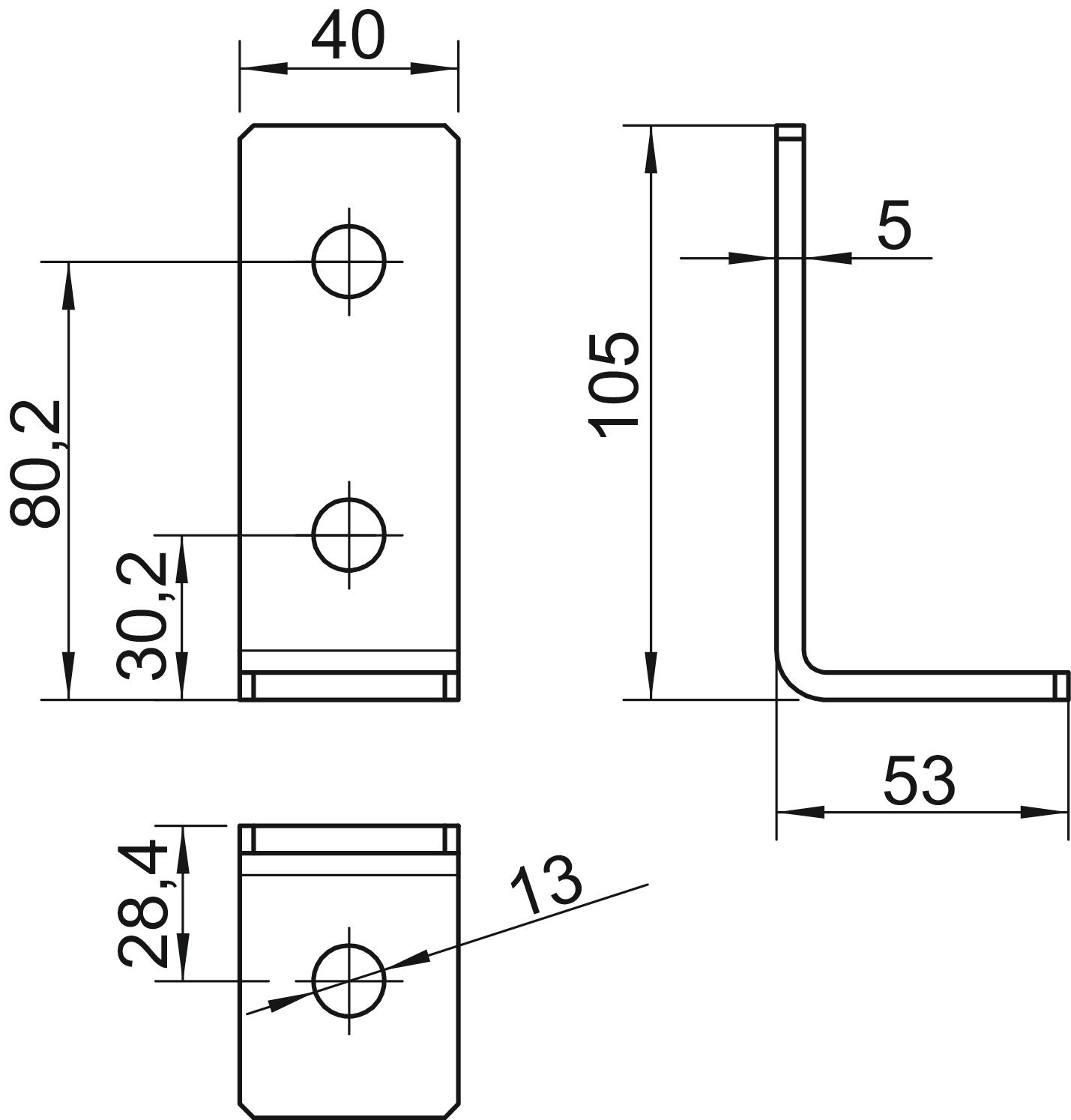

Dimension 105x53x40x5 Hole size 13 mm Material Steel Material thickness 5 mm Rustproof steel, pickled no Suitable for profile shapes C profile Surface Hot-dip galvanised Version for 90° angle With screw accessories no Dimensions
Height 53 mm Length 105 mm Width 40 mm - All types
