Mounting/branch piece 60 A4 200
morepic-1 morepic-2

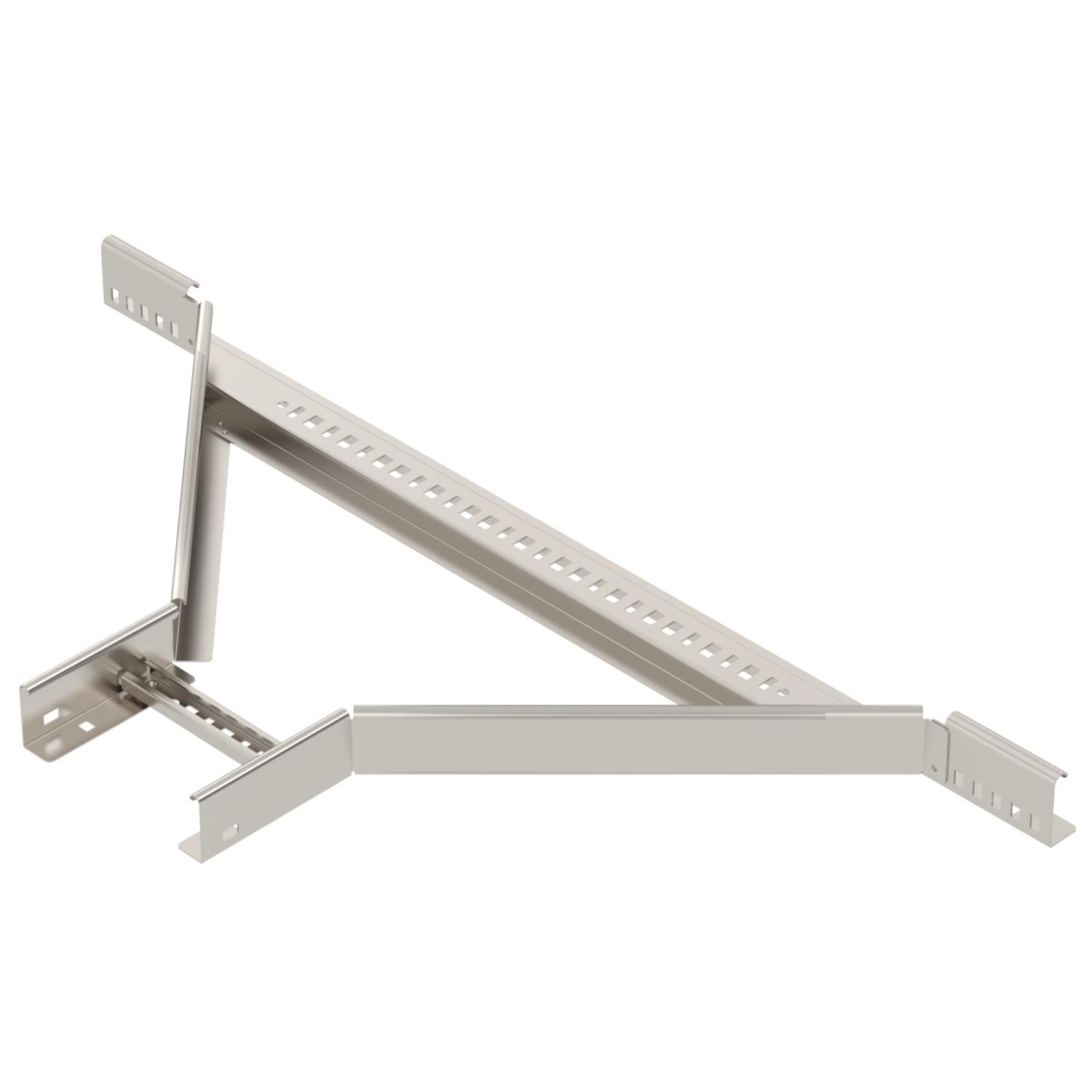

Mounting/branch piece 60 A4

Item no. 6225894 | EAN 4012196567461

Product description
Product description
Mounting/branch with welded rung for use in the cable ladder types with a side height of 60 mm.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Colour stainless steel
Connector version Without connectors

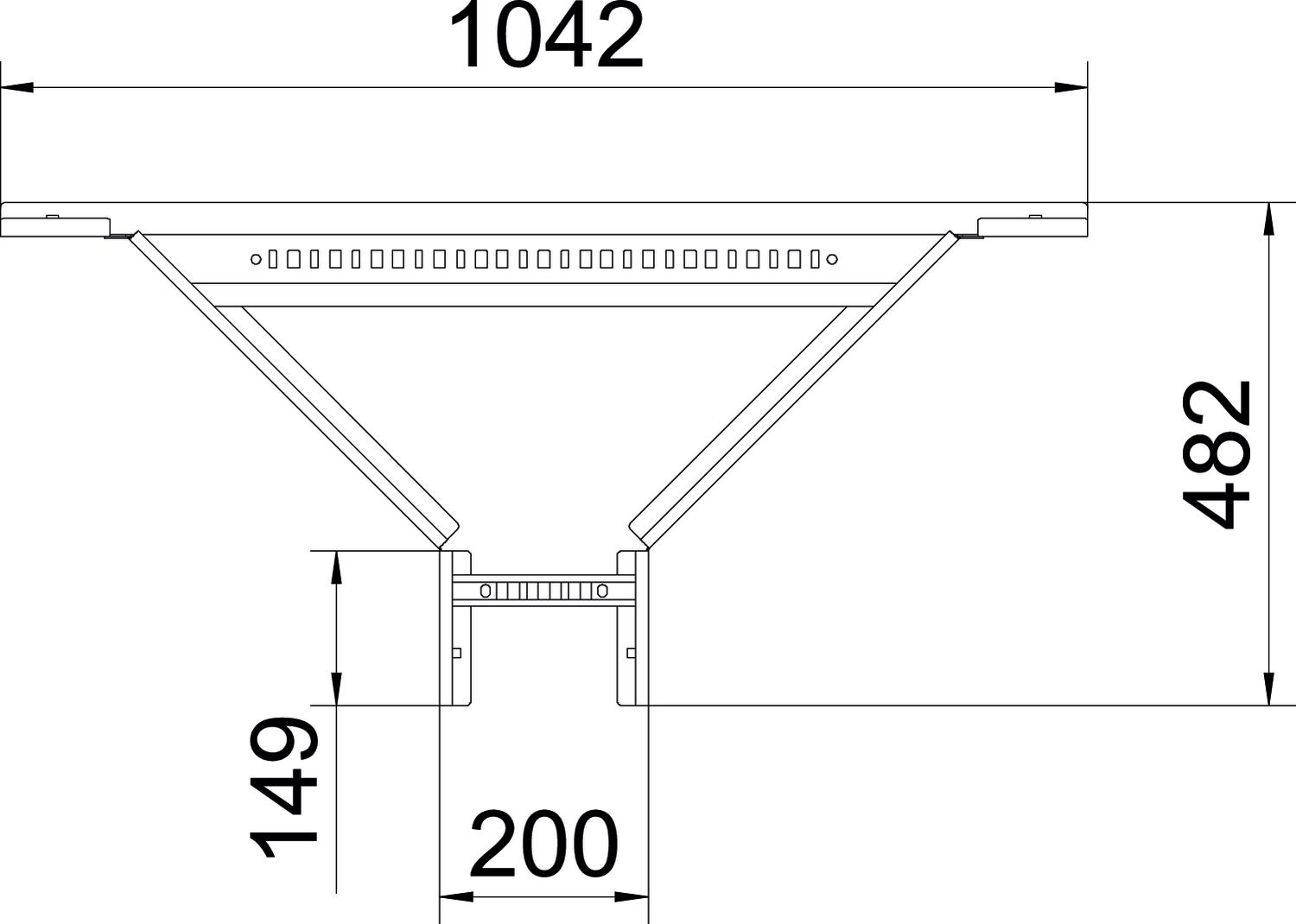

Dimension 60x200
Dimension B 200 mm
Height 60 mm
Maintain electrical functions no
Material Stainless steel
Rail thickness 1,5 mm
Rustproof steel, pickled no
Side rail version Flat profile
Surface Bright, treated
Version of the rungs Profile perforated
Wide-span version no
Width 200 mm
All types

All types

Types Width Item no. Quantity SSU
LAA 620 R3 A4 200 mm 6225894
1 piece
LAA 630 R3 A4 300 mm 6225896
1 piece
LAA 640 R3 A4 400 mm 6225898
1 piece
LAA 650 R3 A4 500 mm 6225900
1 piece
LAA 660 R3 A4 600 mm 6225902
1 piece
Accessories

Mounting accessories

Products Types Item no. Quantity SSU
Straight connector A4 Straight connector A4 LVG 60 A4 6208835
10 piece
