Mounting/branch piece 60 A4 500

morepic-1

morepic-2

Mounting/branch piece 60 A4

Item no. 6225900 | EAN 4012196567515

Item no. / Types

Width

Product description

Product description

Mounting/branch with welded rung for use in the cable ladder types with a side height of 60 mm.

Technical data

Technical data

Connector version	Without connectors
Dimension	60x500
Maintain electrical functions	no
Material	Stainless steel
Rail thickness	1,5 mm

Rustproof steel, pickled	no
Side rail version	Flat profile
Surface	Bright, treated
Version of the rungs	Profile perforated
Wide-span version	no

Dimensions

Dimension B	500 mm
Height	60 mm

Width	500 mm

All types

All types

Types	Width	Item no.	Quantity	SSU
LAA 620 R3 A4	200 mm	6225894	piece	1 piece
LAA 630 R3 A4	300 mm	6225896	piece	1 piece
LAA 640 R3 A4	400 mm	6225898	piece	1 piece
LAA 650 R3 A4	500 mm	6225900	piece	1 piece
LAA 660 R3 A4	600 mm	6225902	piece	1 piece

Accessories

Mounting accessories

Products	Types	Item no.	Quantity	SSU
Straight connector A4	LVG 60 A4	6208835	piece	10 piece

Downloads

Data sheet LAA 650 R3 A4 / 6225900 , 0.18MB , pdf

Guide KTS Kabeltragsysteme , 1.61MB , pdf

Brochure Welded cable ladder system , 2.10MB , pdf

Catalogue Kabeltragsysteme , 45.23MB , pdf

Declaration of conformity LAA 650 R3 A4 / 6225900 , 0.16MB , pdf

Mounting instructions Mounting instructions, cable ladder systems , 6.45MB , pdf

Mounting instructions KTS mounting instructions Version 1.1 applicable for all OBO cable support systems , 2.00MB , pdf

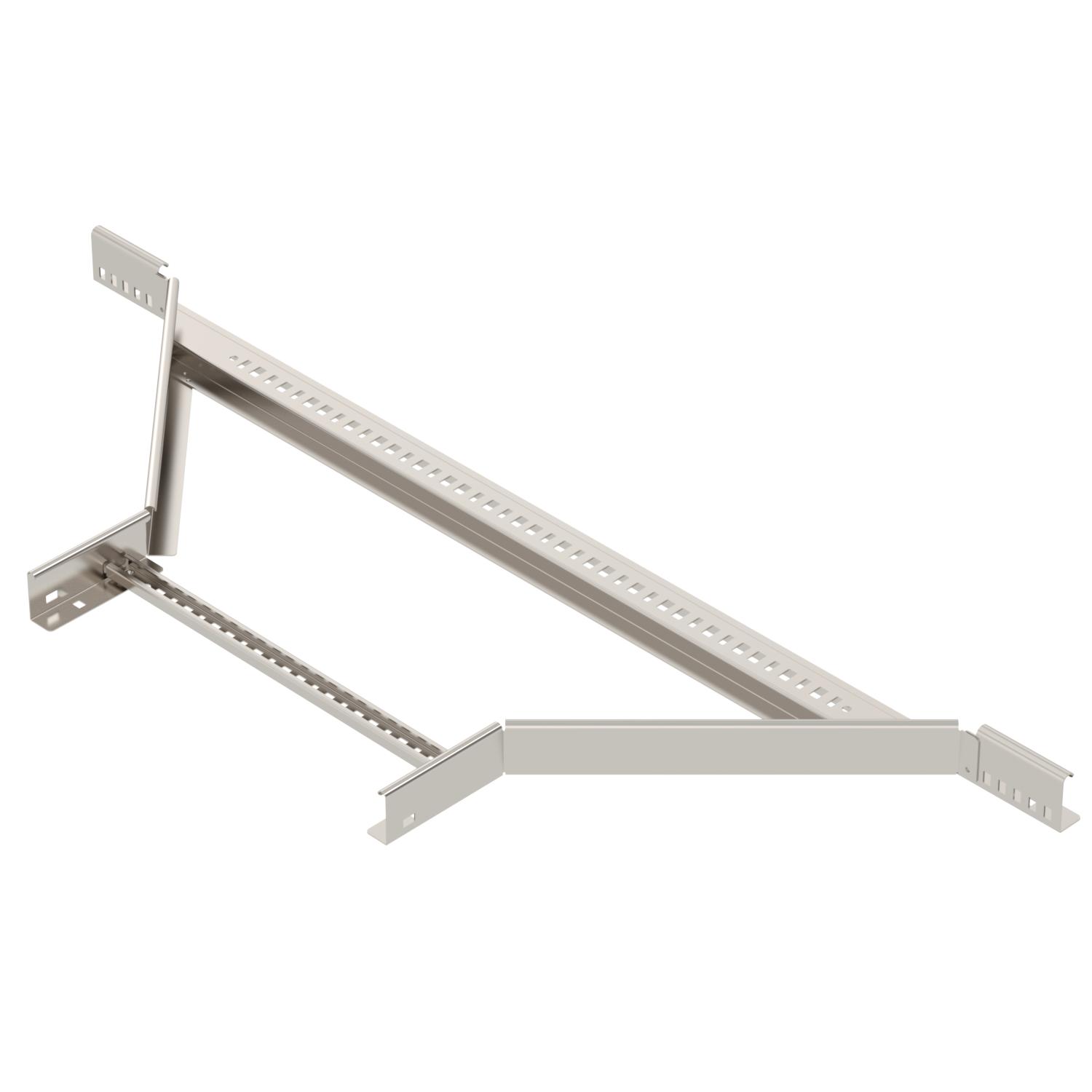

Product graphic LAA 650 R3 A4 / 6225900, 49.78 kB, jpg

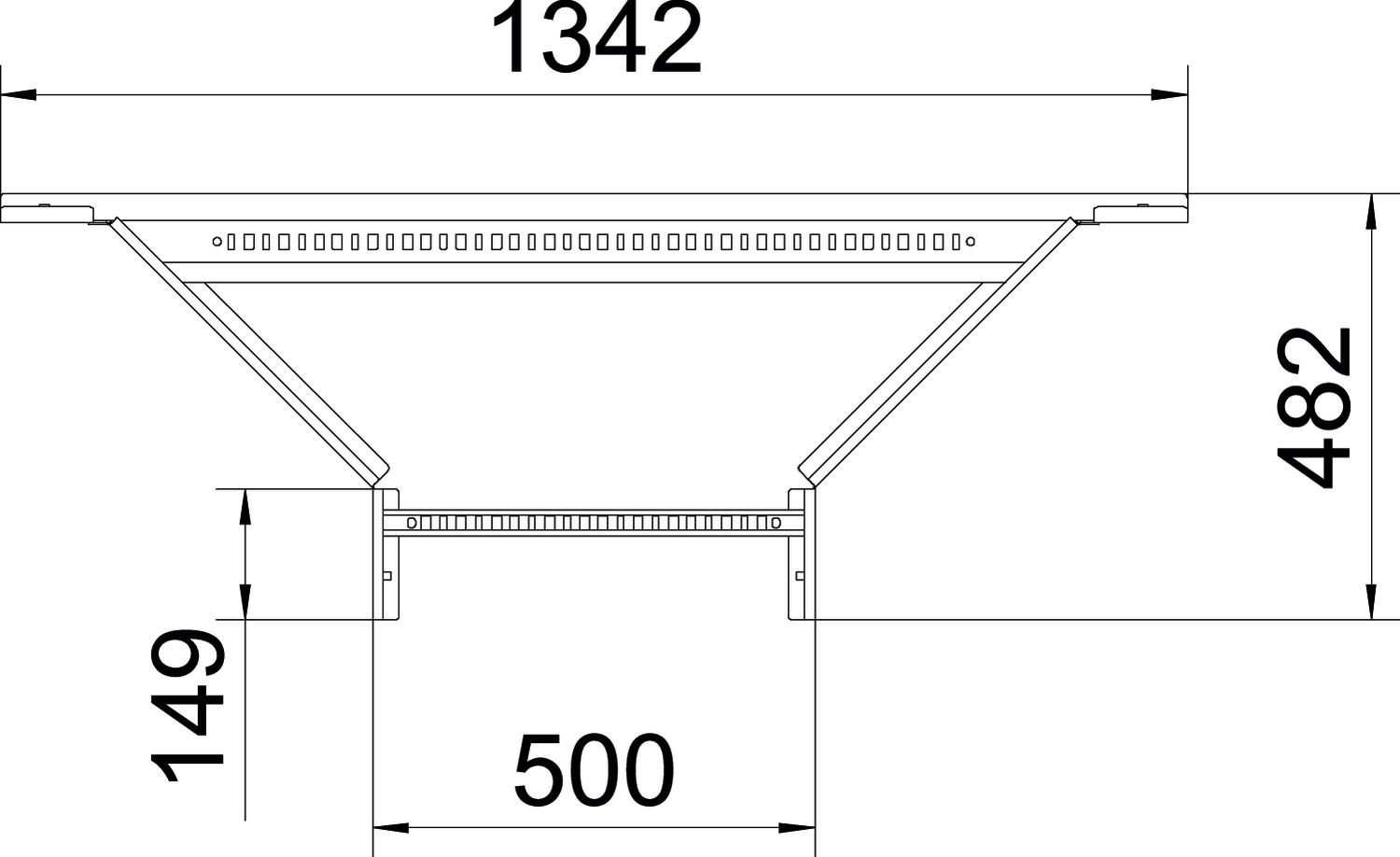

Scale drawing LAA 650 R3 A4 / 6225900, 68.62 kB, jpg

LAA 650 R3 A4 / 6225900
