Mounting lid for GES4, 400 mm
Item no. 7425066 | EAN 4012195245438
- Product description
-
Product description

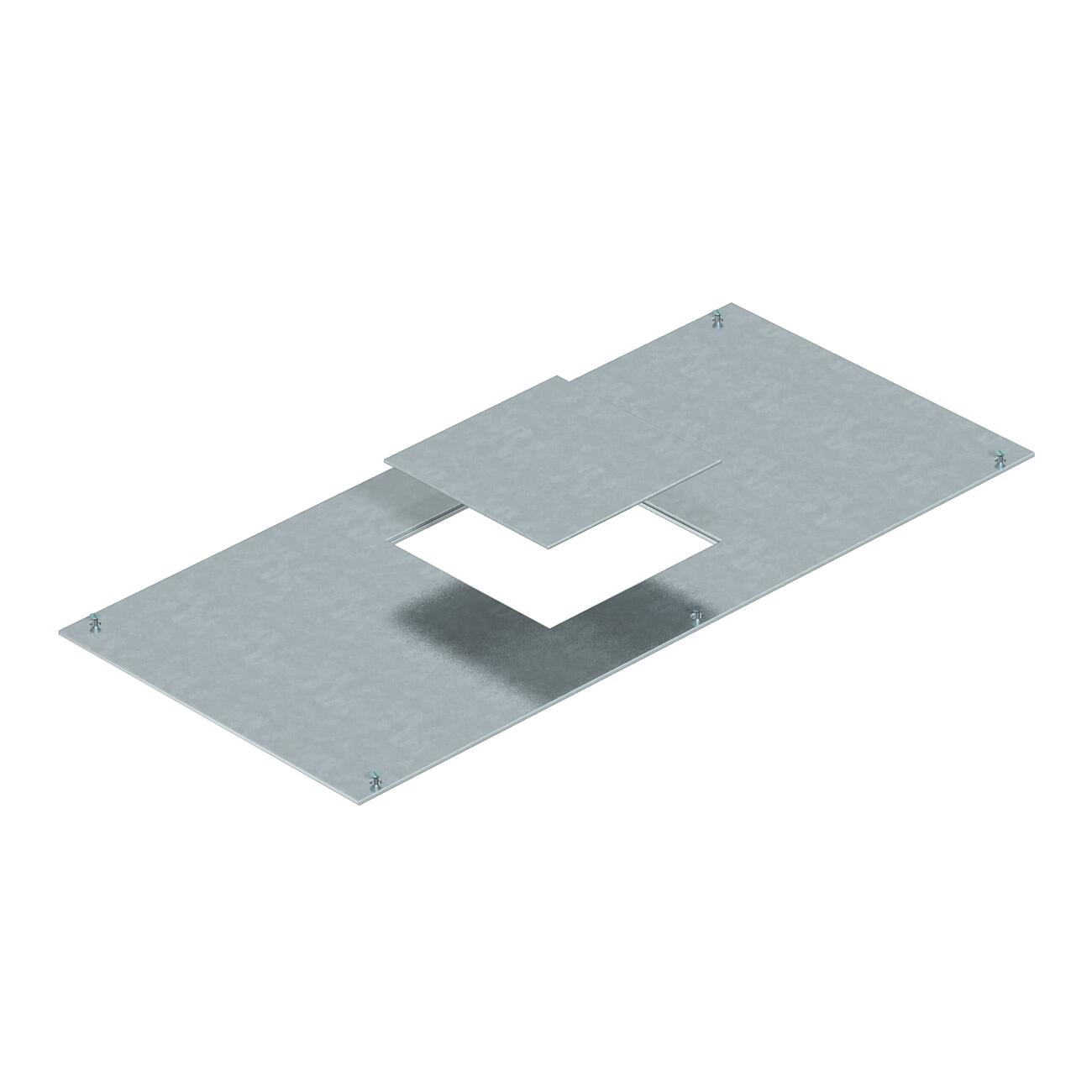

With mounting opening for the installation of an installation unit of nominal size 4. Mounting opening closed with blanking lid plate. Lid fixing screws contained in scope of delivery.
-
- Technical data
-
Technical data

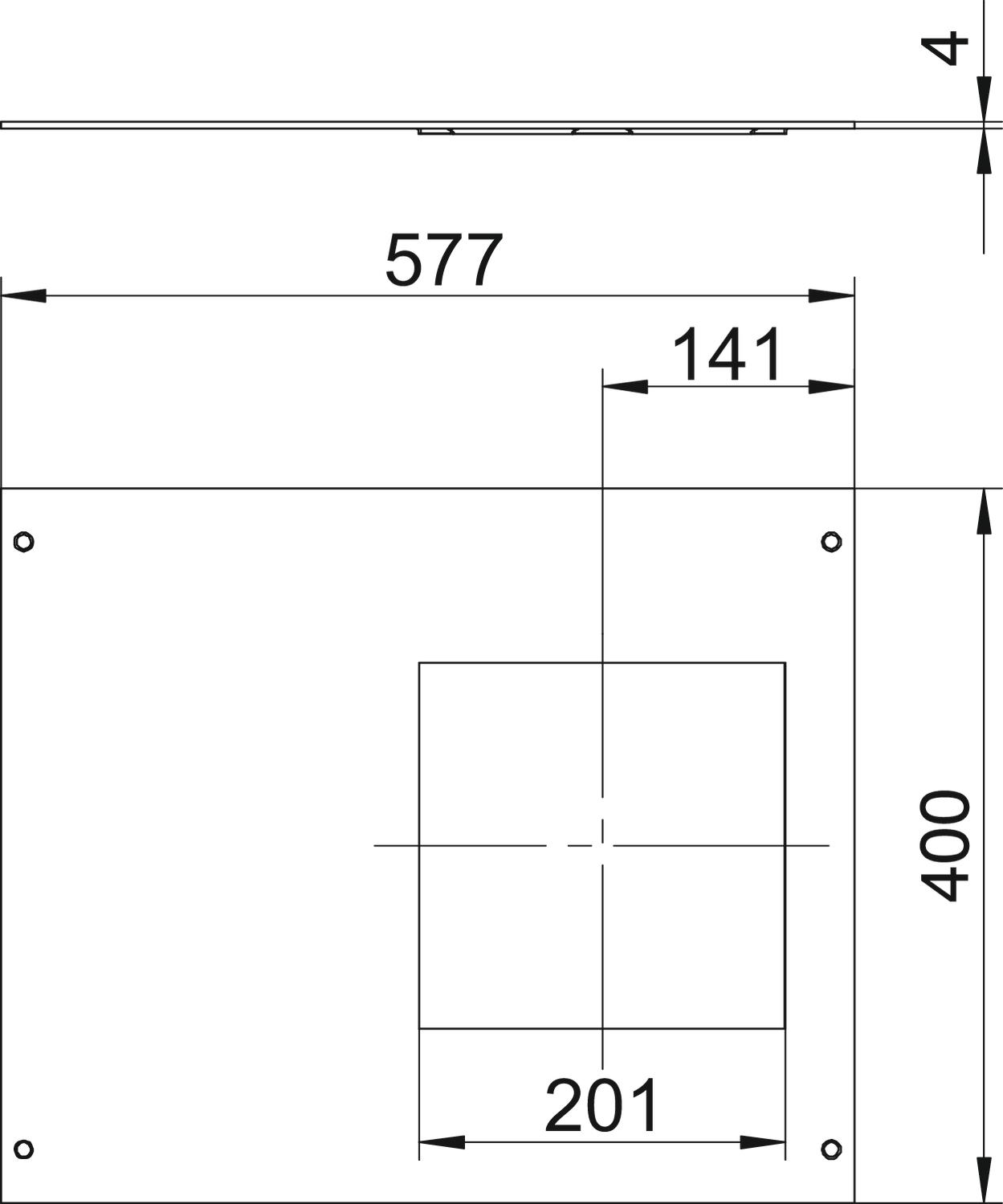

Cover fastening, locking no Dimension 400x600x4 Dimension a 201 mm Dimension A 577 mm Dimension c 141 mm Length 400 mm Material Steel Material thickness 4 mm Mounting opening For service outlet Mounting opening Square Mounting opening cover yes Number of mounting openings 1 Surface Strip galvanized Width 600 mm - All types
- Downloads
-
Data sheet OKA D 600 4 / 7425066 , 0.16MB , pdfDeclaration of conformity OKA D 600 4 / 7425066 , 0.13MB , pdfLabel approval VDE symbol approval, OKA , 0.18MB , pdfMounting instructions Mounting instructions, screed-flush duct systems OKA-G and OKA-W , 0.02MB , pdfNo invitation to tender text is available for this product.
