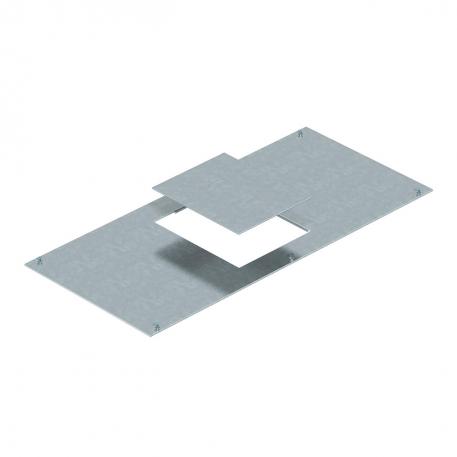

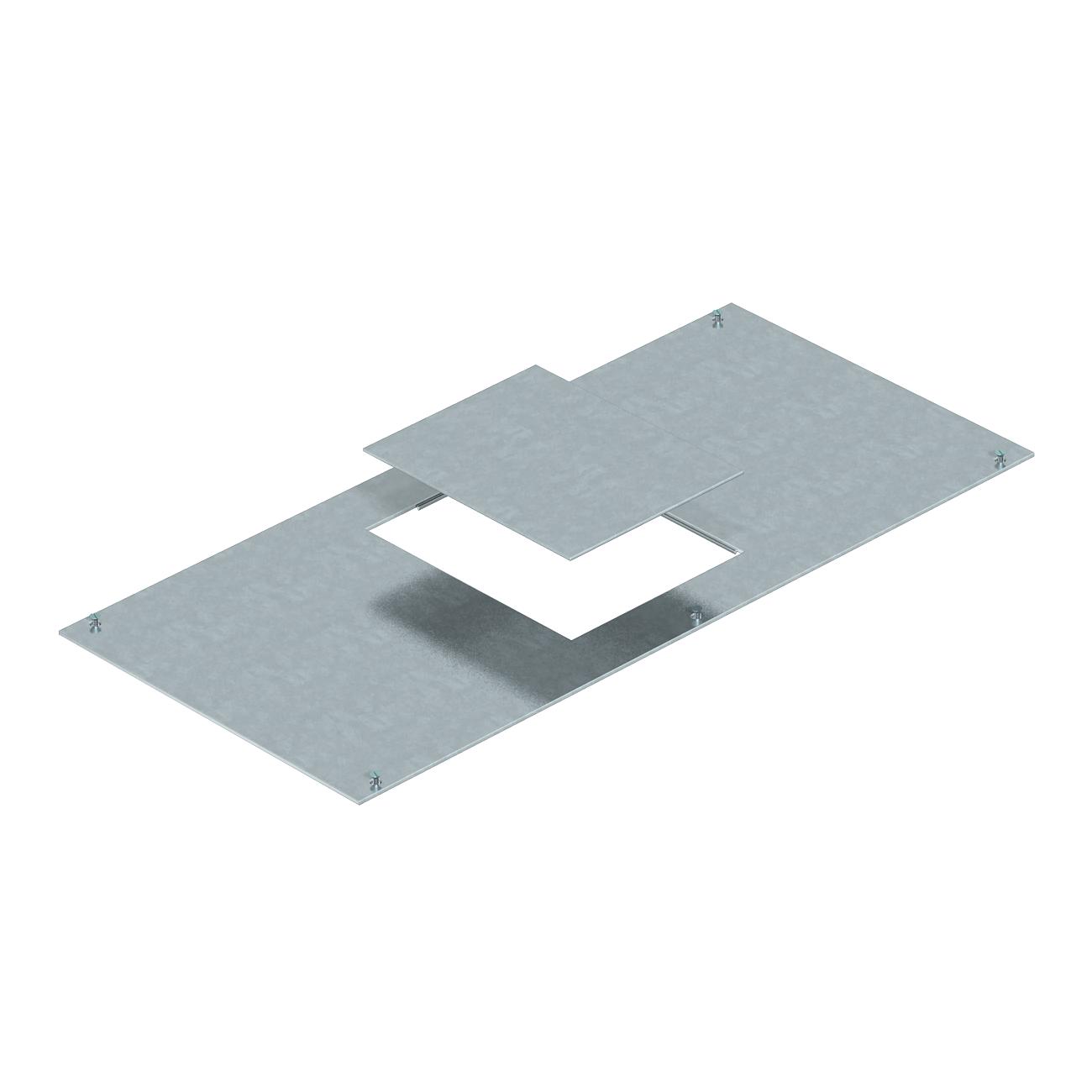

Mounting lid for GES6, 800 mm
Item no. 7402056 | EAN 4012195094128
- Product description
-
Product description
With mounting opening for the installation of an installation unit of nominal size 6. Mounting opening closed with blanking lid plate. Lid fixing screws contained in scope of delivery.
-
- Technical data
-
Technical data

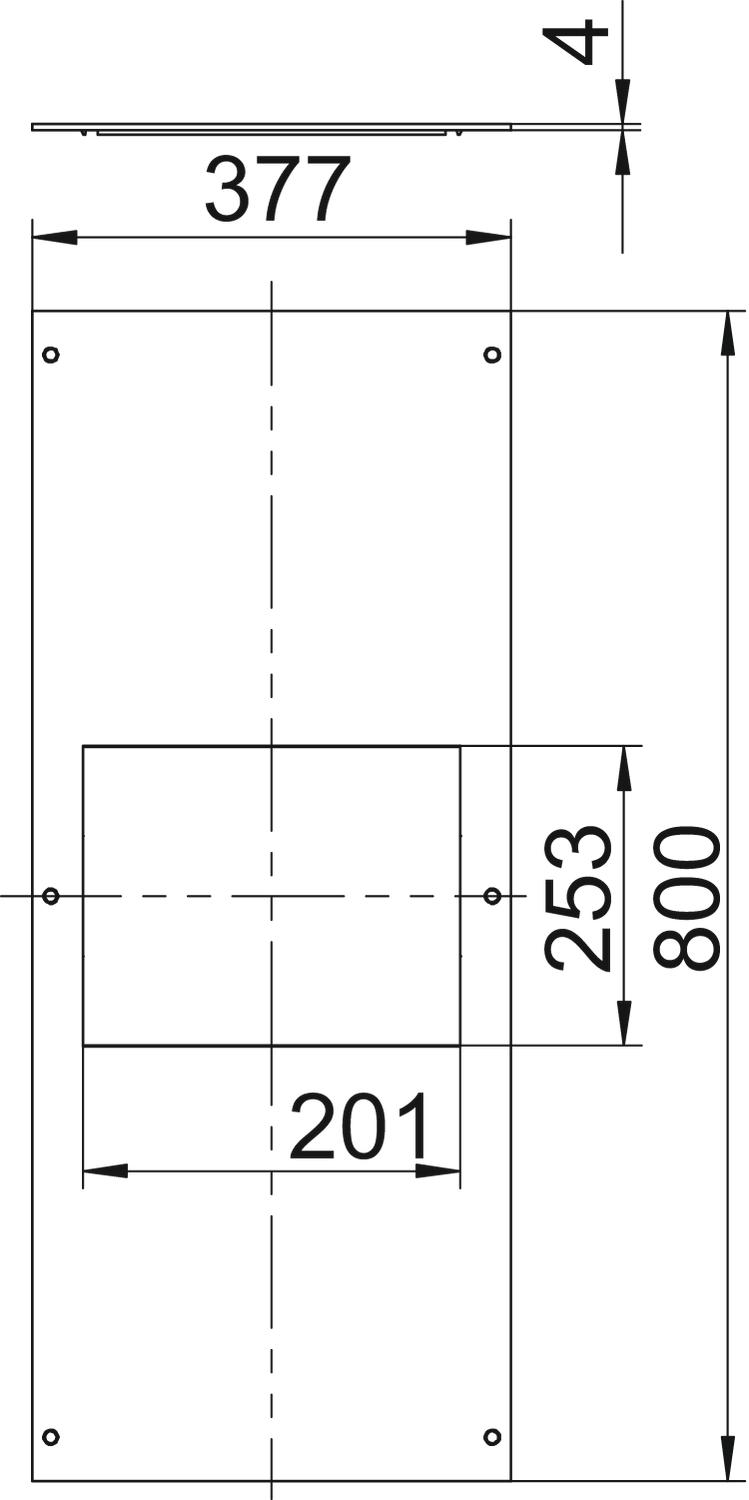

Cover fastening, locking no Dimension 800x400x4 Dimension A 377 mm Dimension a 201 mm Dimension b 253 mm Length 800 mm Material Steel Material thickness 4 mm Mounting opening Rectangular Mounting opening For service outlet Mounting opening cover yes Number of mounting openings 1 Surface Strip galvanized Width 400 mm - All types
- Downloads
-
Data sheet OKA DG6 400 / 7402056 , 0.16MB , pdfDeclaration of conformity OKA DG6 400 / 7402056 , 0.13MB , pdfLabel approval VDE symbol approval, OKA , 0.18MB , pdfMounting instructions Mounting instructions, screed-flush duct systems OKA-G and OKA-W , 0.02MB , pdfNo invitation to tender text is available for this product.
