Mounting lid for GES9, 400 mm
Item no. 7425102 | EAN 4012195245469
- Product description
-

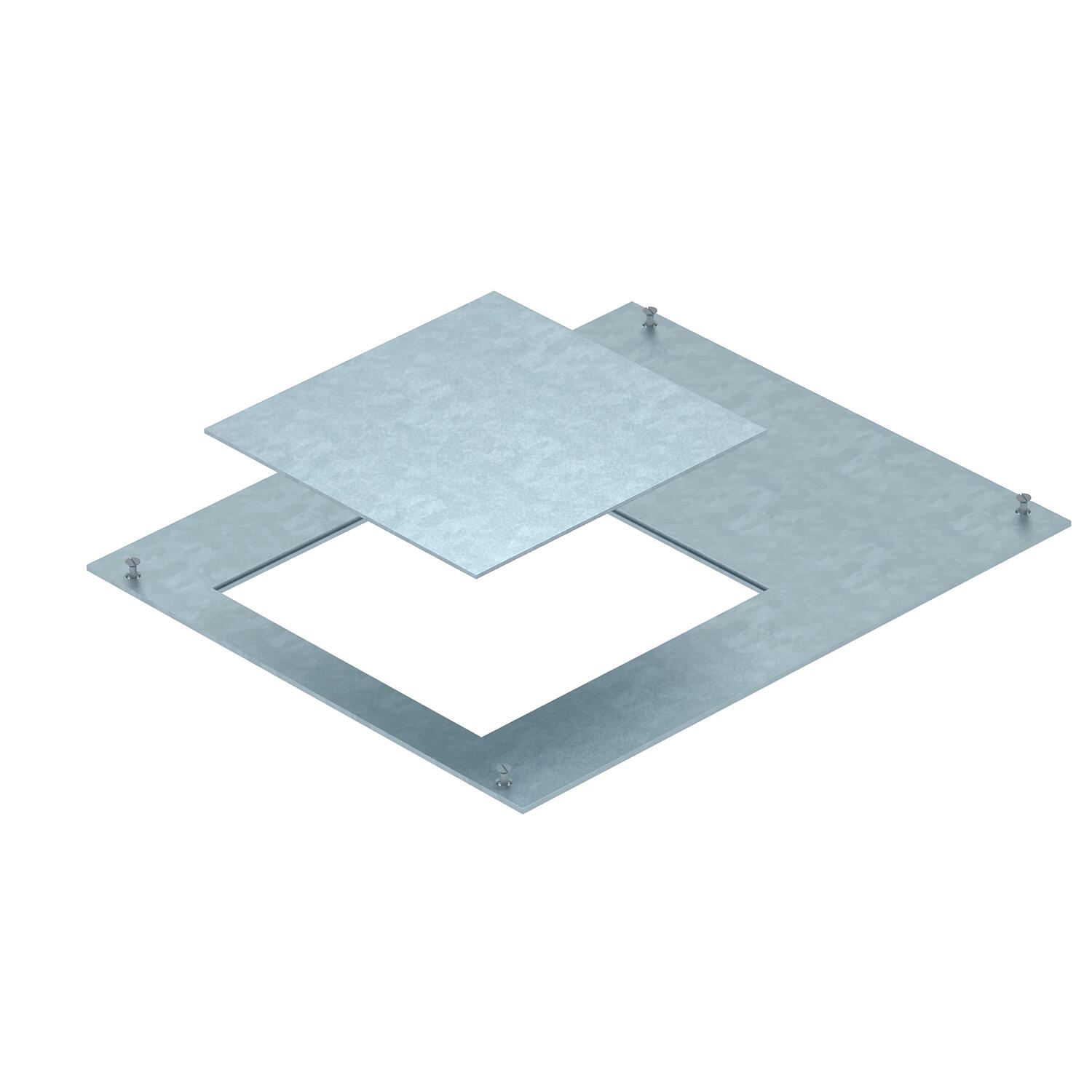

Product descriptionWith mounting opening for the installation of an installation unit of nominal size 9. Mounting opening closed with blanking lid plate. Lid fixing screws contained in scope of delivery.
-
- Technical data
-
Technical data

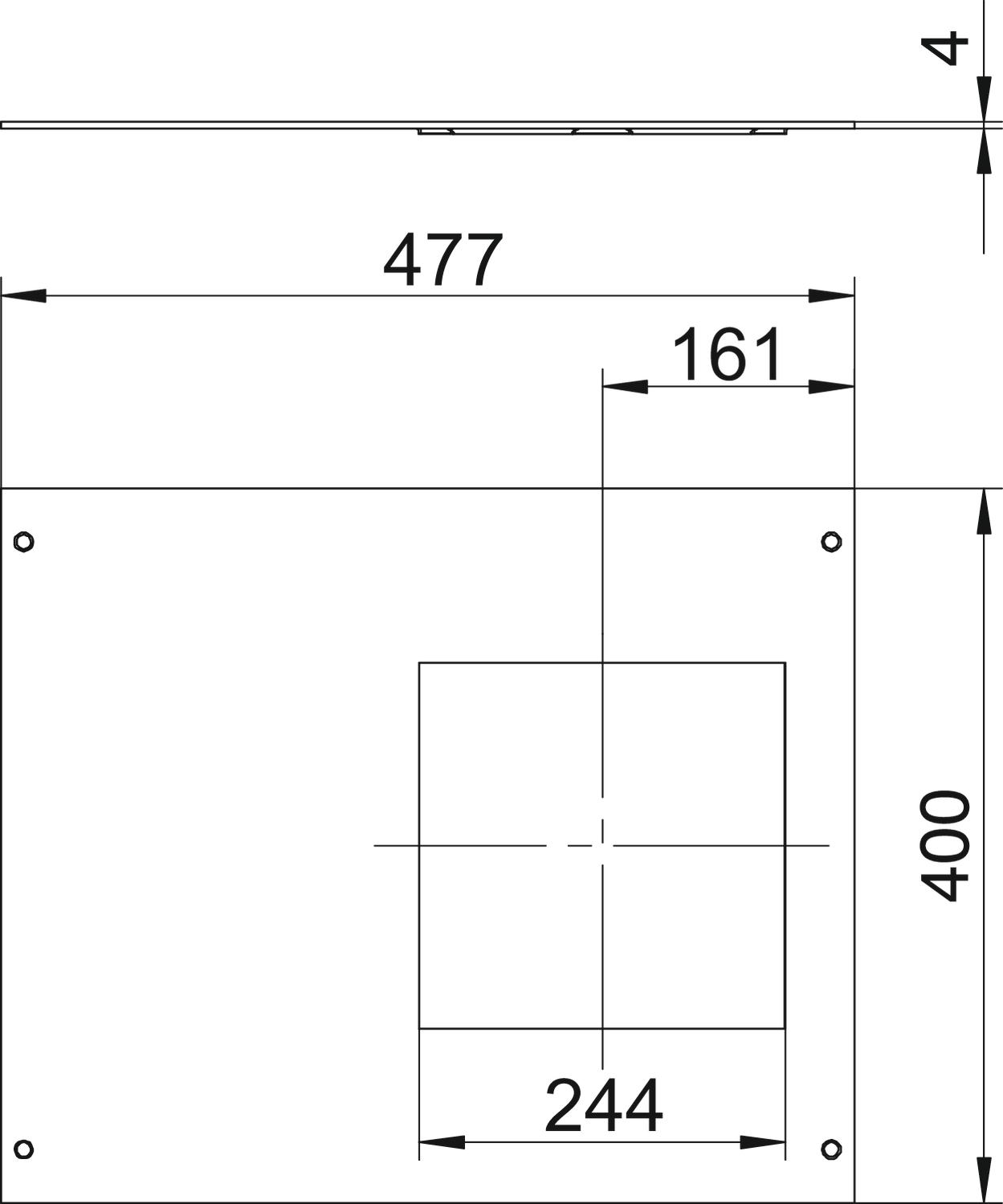

Cover fastening, locking no Dimension 400x500x4 Dimension A 477 mm Dimension a 244 mm Dimension c 161 mm Length 400 mm Material Steel Material thickness 4 mm Mounting opening Square Mounting opening cover yes Number of mounting openings 1 Surface Strip galvanized Width 500 mm - All types
- Downloads
-
Data sheet OKA D 500 9 / 7425102 , 0.17MB , pdfEU declaration of conformity OKA D 500 9 / 7425102 , 0.13MB , pdfLabel approval VDE symbol approval, OKA , 0.18MB , pdfMounting instructions Mounting instructions, screed-flush duct systems OKA-G and OKA-W , 0.02MB , pdfNo invitation to tender text is available for this product.
