- Product description
-
Product description

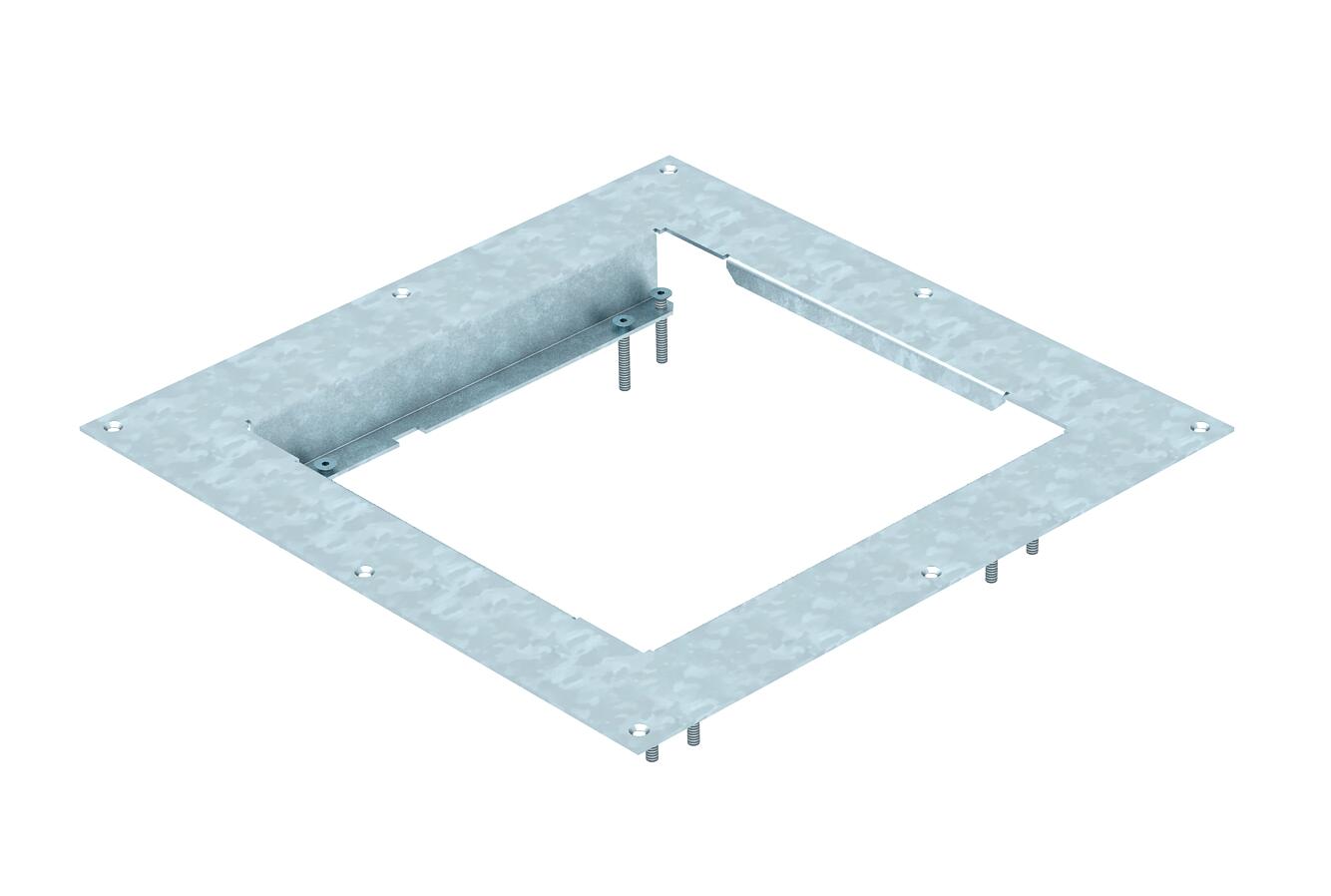

Mounting lid for the installation of height-adjustable cassettes of nominal size 9 in system floors.
-
- Technical data
-
Technical data

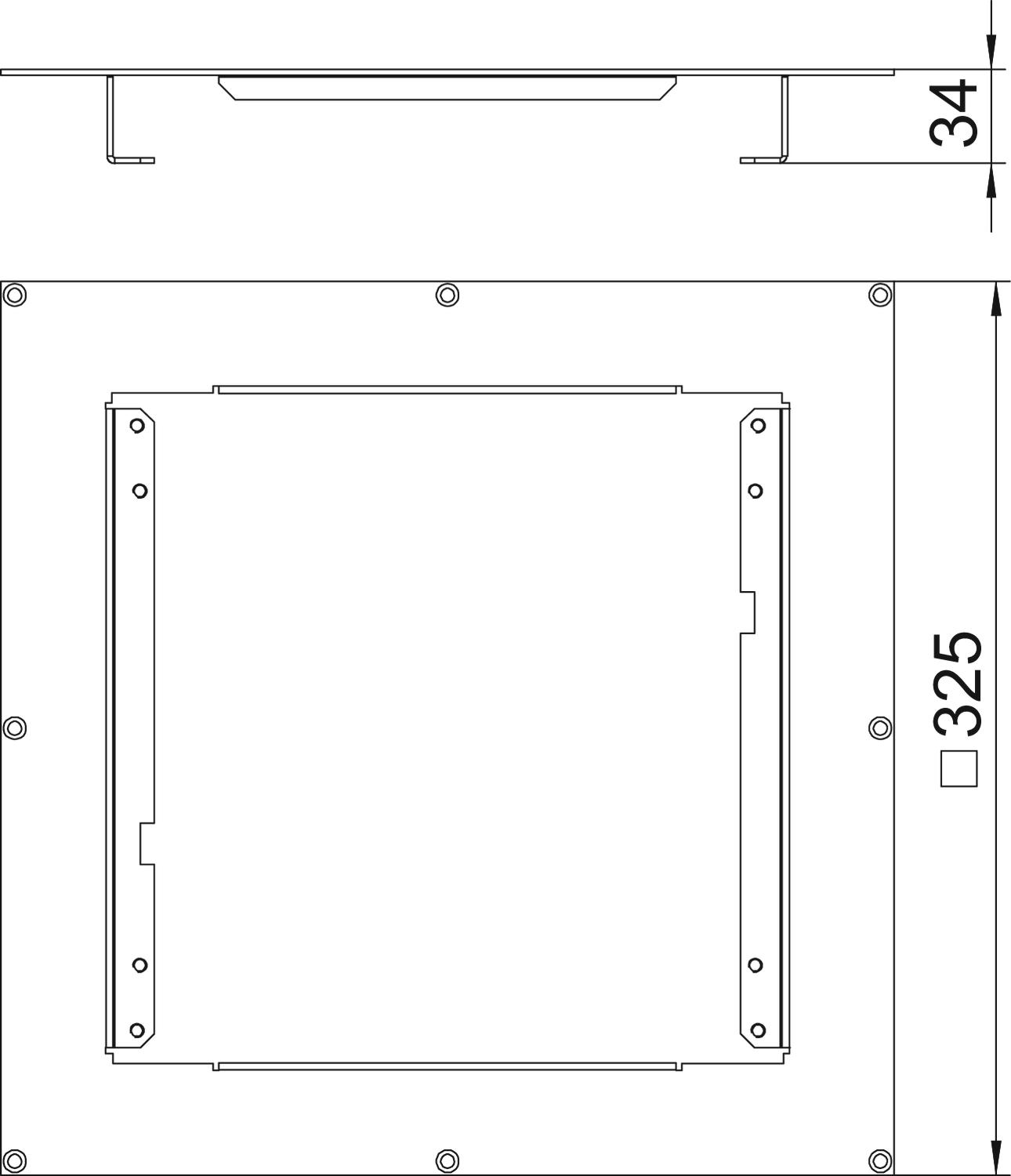

Cut-out dimensions 248x248 mm Dimension 340x340x34 Heavy-duty version no Material Steel Nominal size for device installation units 9 Surface Hot galvanized Dimensions
Length 325 mm Width 325 mm - All types
- Downloads
-
Data sheet DUG RK UAN 9 / 7428547 , 0.19MB , pdf
English
