Mounting lid for Telitank top, 800 mm 800 | 200 | 100
morepic-1 morepic-2

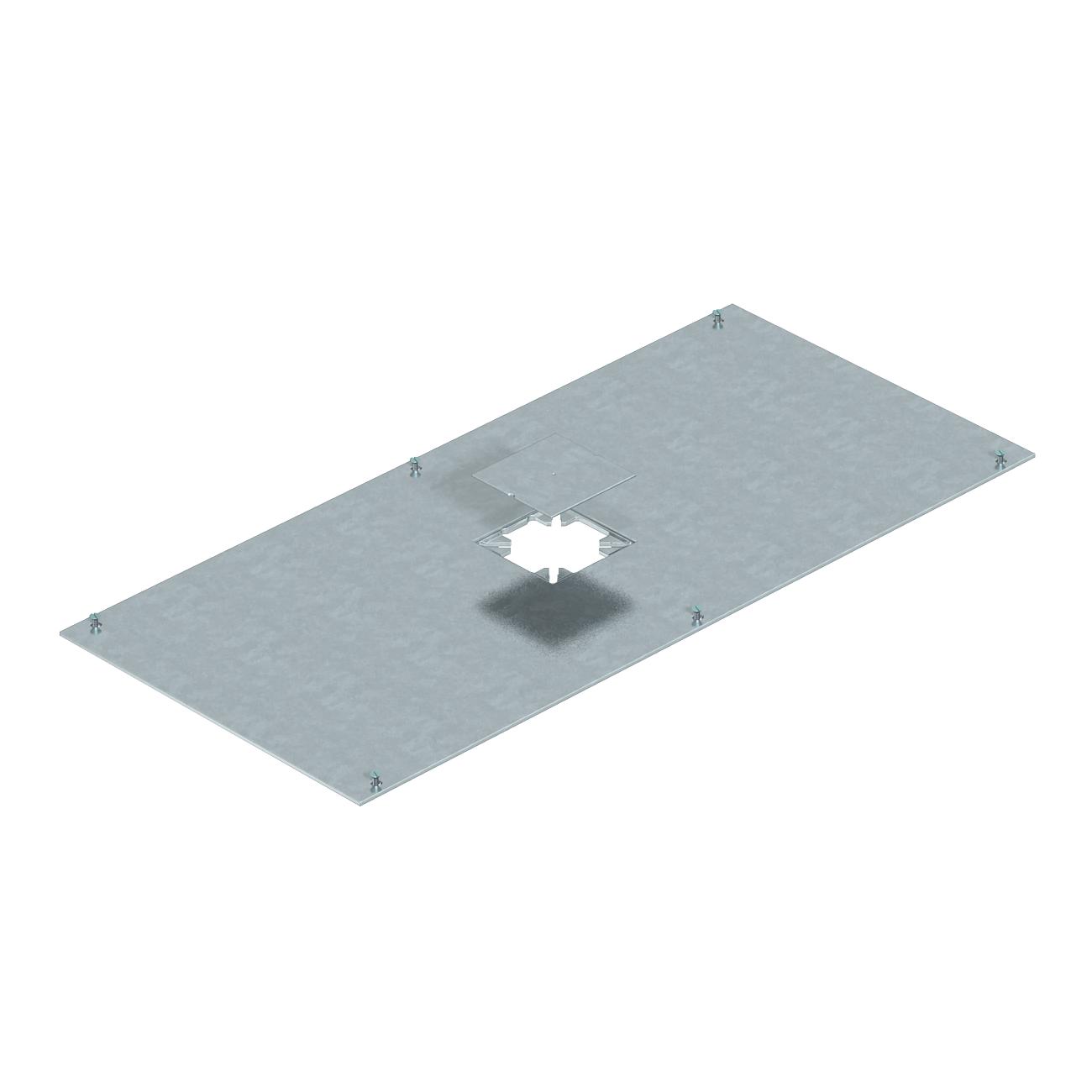

Mounting lid for Telitank top, 800 mm

Item no. 7401904 | EAN 4012195093640

800 mm
100 mm
Product description

Product description

With mounting opening for the setup of a Telitank. Mounting opening closed with blanking plate lid. Lid fixing screws contained in scope of delivery.


  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives

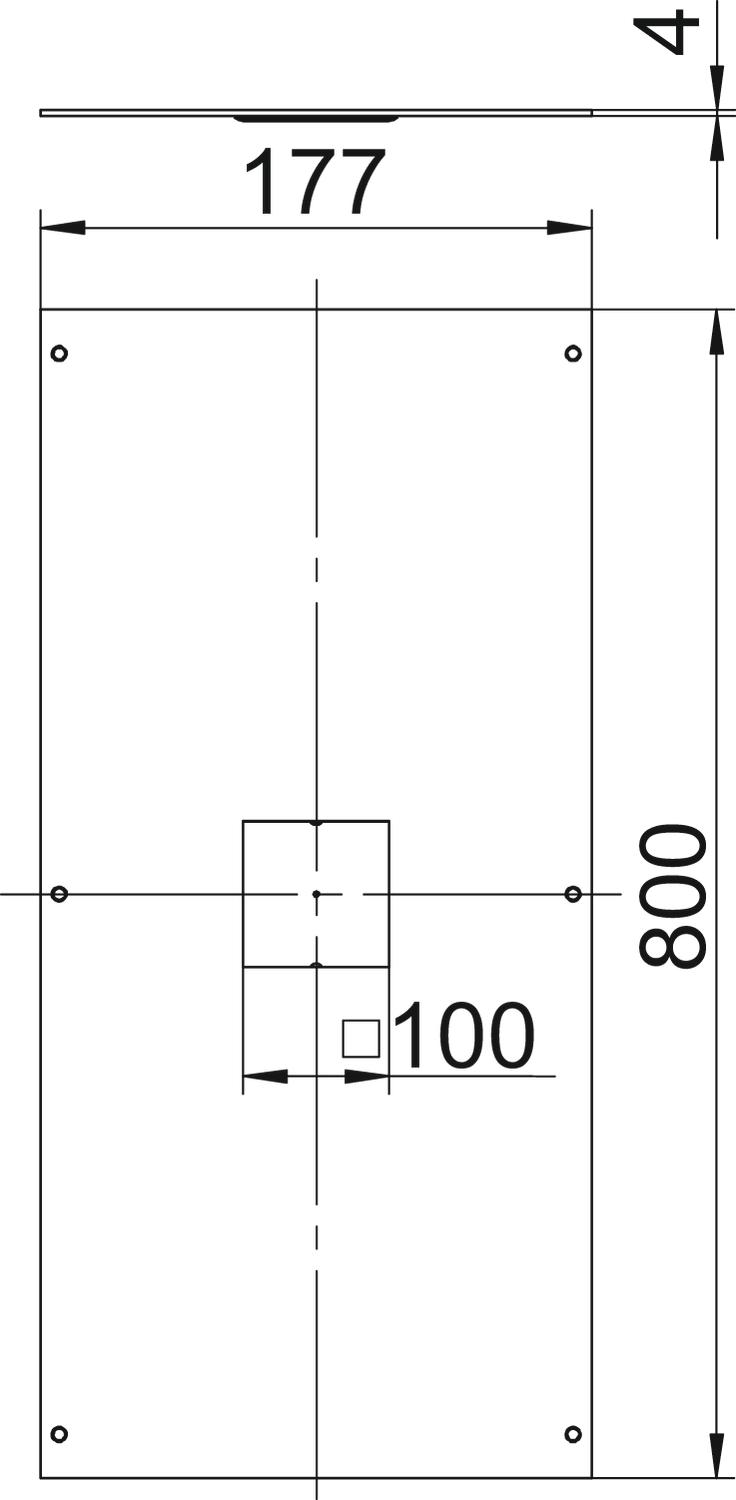

Technical data

Technical data

Cover fastening, locking yes
Dimension 800x200x4
Dimension a 100 mm
Dimension A 177 mm
Installation opening for on-floor tank yes
Length 800 mm
Material Steel
Material thickness 4 mm
Mounting opening For Telitank installation
Mounting opening Square
Number of mounting openings 1
Surface Strip galvanized
Width 200 mm
All types

All types

Types Length Width Dimension a Item no. Quantity SSU
OKA DAT 200 800 mm 200 mm 100 mm 7401904
1 piece
OKA DAT 300 800 mm 300 mm 100 mm 7401912
1 piece
OKA DAT 400 800 mm 400 mm 100 mm 7401920
1 piece
Downloads

Download

Declaration of conformity OKA DAT 200 / 7401904 , 0.13MB , pdf
Download

Download

No invitation to tender text is available for this product.
