Mounting lid for Telitank top, 800 mm 800 | 400 | 100
morepic-1 morepic-2

Mounting lid for Telitank top, 800 mm

Item no. 7401920 | EAN 4012195093701

800 mm
100 mm
Product description

Product description

With mounting opening for the set-up of a Telitank. Mounting opening closed with blanking plate lid. Lid fixing screws contained in scope of delivery.
  • Communautés Européennes, EC declaration of conformity according to EC directives

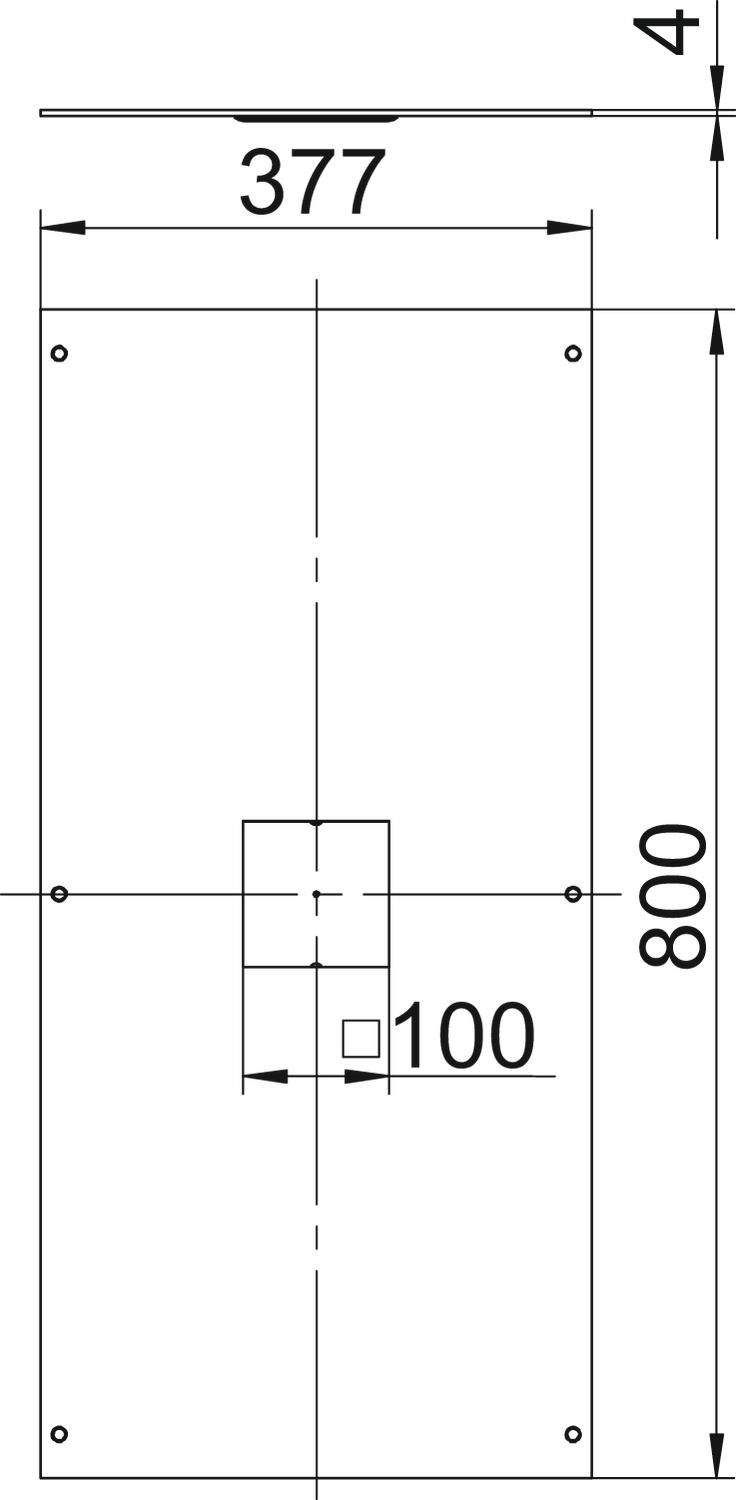

Technical data

Technical data

Cover fastening, locking yes
Dimension 800x400x4
Dimension a 100 mm
Dimension A 377 mm
Length 800 mm
Material Steel
Material thickness 4 mm
Mounting opening For on-floor tank
Number of mounting openings 1
Surface Strip galvanized
Width 400 mm
All types

All types

Types Length Width Dimension a Item no. Quantity SSU
OKA DAT 200 800 mm 200 mm 100 mm 7401904
1 piece
OKA DAT 300 800 mm 300 mm 100 mm 7401912
1 piece
OKA DAT 400 800 mm 400 mm 100 mm 7401920
1 piece
Downloads

Download

Declaration of conformity OKA DAT 400 / 7401920 , 0.13MB , pdf
Download

Download

No invitation to tender text is available for this product.
