- Product description
-
Product description

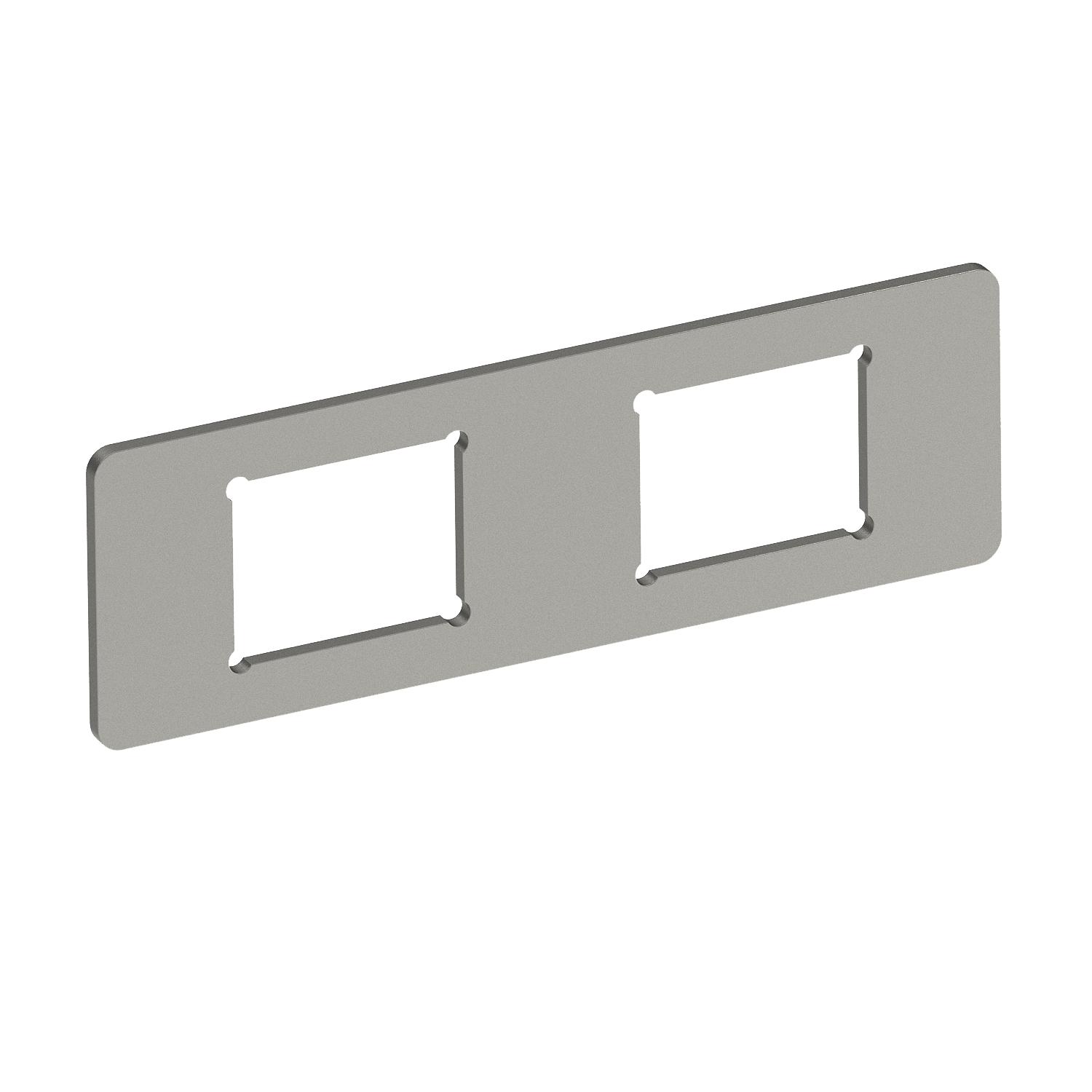

Mounting plate to accept two connection sockets for data technology of the following types: Brand-Rex: shielded module; EKU: E-Stone module; Dätwyler: KS-T, MS-K and KU-T module; R&M: Snap-In and Keystone module; Rutenbeck: UM and UMflex module; SETEC: MKJ, UKJ and XKJ module; Siemon TERA; Telegärtner: AMJ and UMJ module.

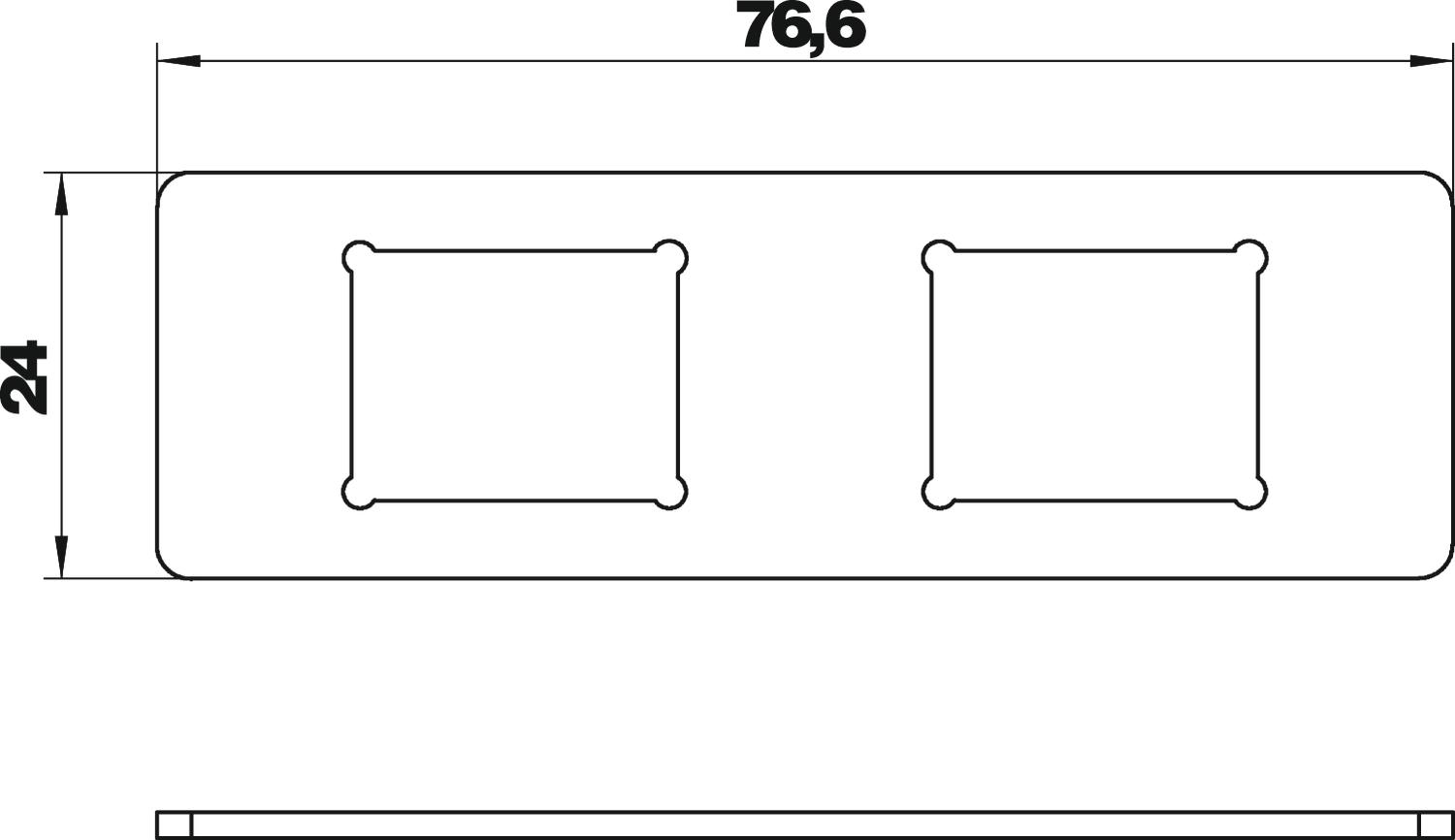

Dimensions of a mounting opening in mm: 19.30 x 14.80.
- Technical data
-
Technical data
Connection options 2 connection sockets for data technology of the following types: Brand-Rex; EKU; Dätwyler; Rutenbeck; SETEC; Siemon TERA; Telegärtner Decouplable no Dimension 77x24x1,5 Fastening type Lockable Floor covering protection frame no Floor plate no Heavy-duty version no Installation opening for on-floor tank no Labelling panel no Lowerable to be flush-floor no Material Stainless steel Seal installation option no Strain relief option yes Suitable for cavity floor installation yes Suitable for raised floor installation yes Suitable for screed-covered underfloor ducts yes Suitable for screed-flush closed underfloor ducts yes Suitable for underfloor ducts yes With floor covering recess no - All types
- Downloads
-
Data sheet MPMT45 2C / 7408705 , 0.16MB , pdfLabel approval VDE symbol approval, GES , 0.12MB , pdf
