Mounting plate, angled DD
Item no. 7085112 | EAN 4012195286790
- Product description
-

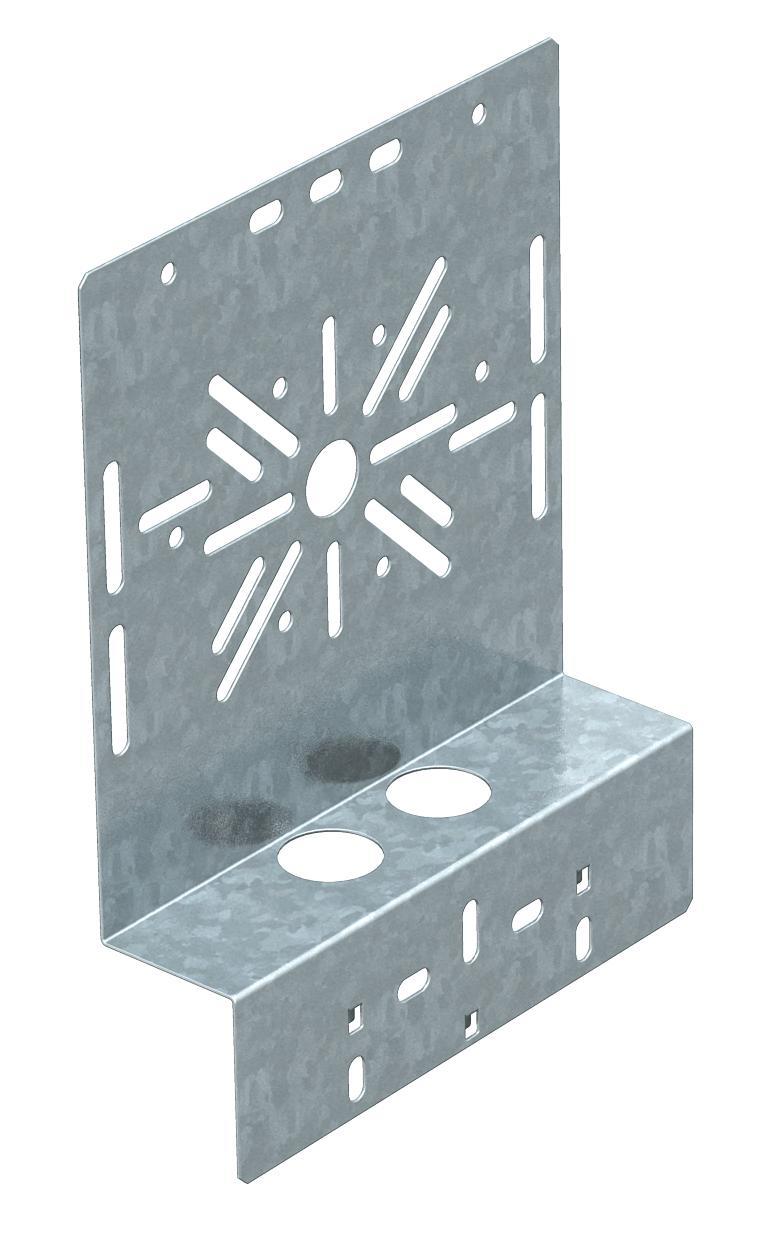

Product descriptionAngled mounting plate, for fastening on the side rail of the cable tray.
-
- Technical data
-
Technical data

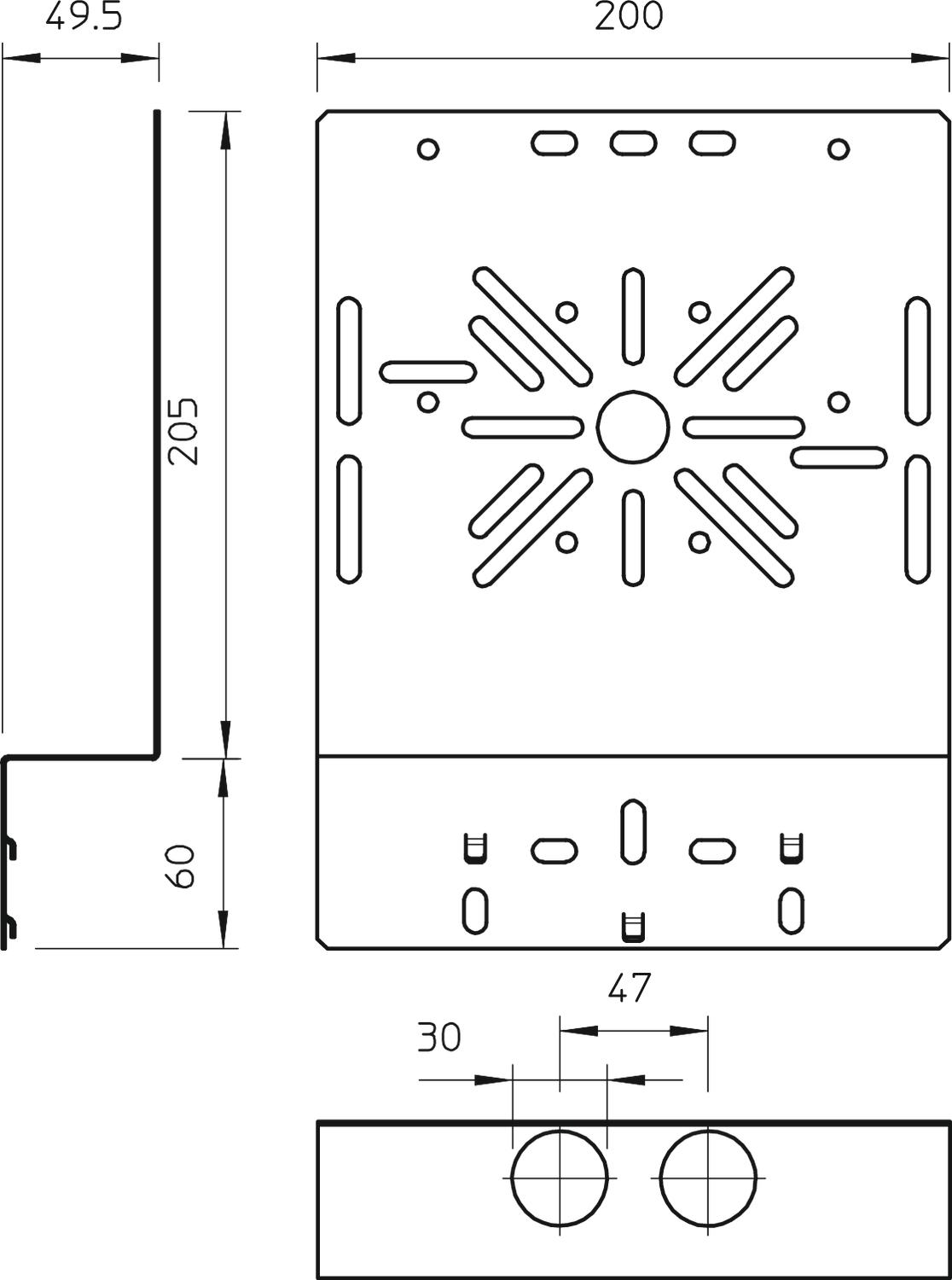

Colour zinc Dimension 265x200 Fastening type Screw fastening Height 240 mm Material Steel Plate thickness 1 mm Rustproof steel, pickled no Surface Strip galvanised zinc/aluminium, Double Dip Version for Vertical Width 200 mm Width 7,87 in - All types
- Downloads
-
Data sheet MP WI GR. DD / 7085112 , 0.17MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfEU declaration of conformity MP WI GR. DD / 7085112 , 0.11MB , pdfREACH Declaration of conformity MP WI GR. DD / 7085112 , 0.27MB , pdfRoHS Declaration of conformity MP WI GR. DD / 7085112 , 0.28MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
