Mounting plate for data technology, type A 2 | Type A

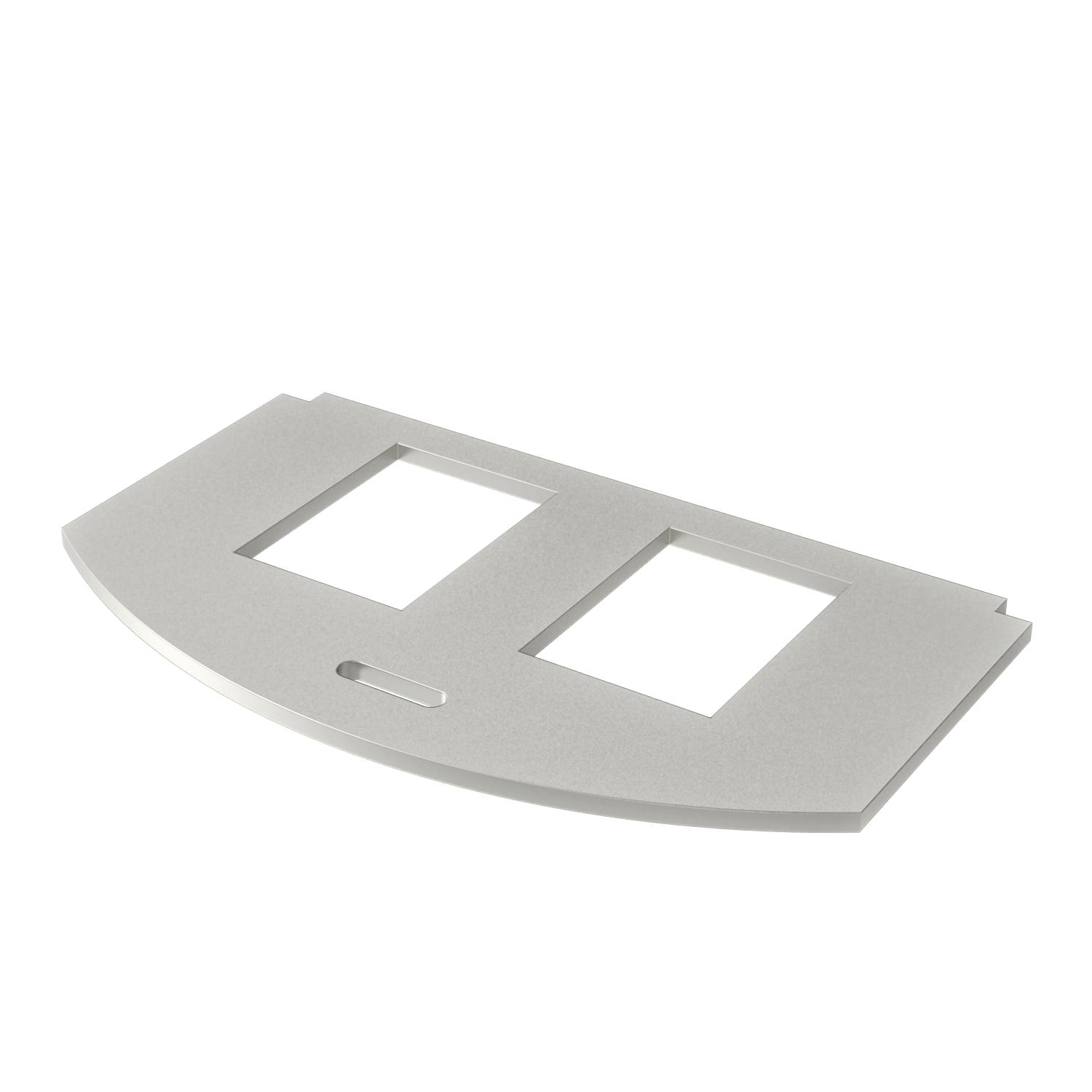

Mounting plate for data technology, type A

Item no. 7408802 | EAN 4012196460670

Item no. / Types

Number of installable devices

suitable for data connection module

Back to overview

Product description

Product description

Mounting plate to accept two data connection modules of the following types: AMP TYCO: Standard 110Connect, SL Series 110Connect and Toolless, AMP-Twist; Brand-Rex: unshielded; GG45; TKM RJ MOD; Nexans: LANmark with Adapter-Clip; Siemon CAT6; 3M K6 and K10.

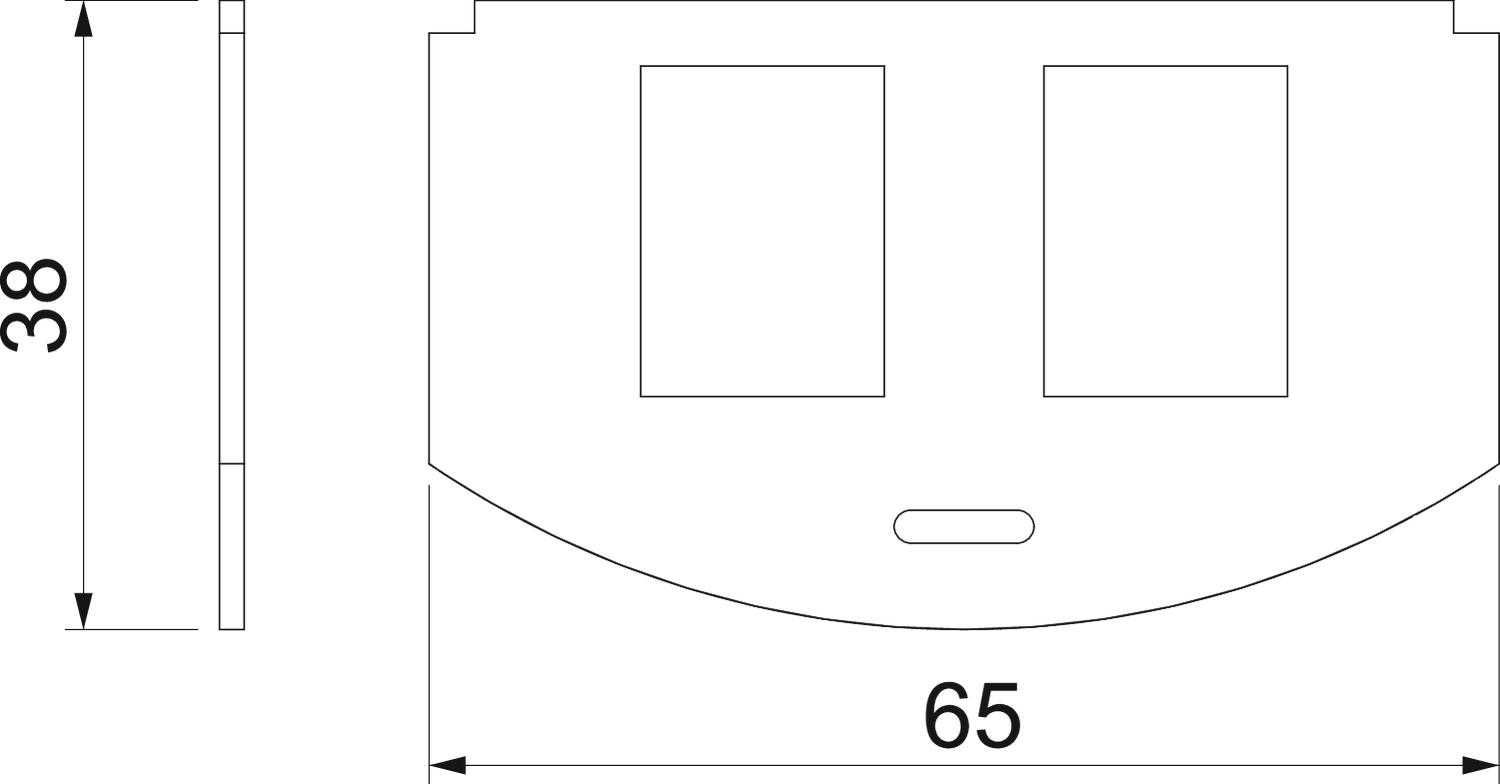

Dimensions of a mounting opening in mm: 20.10 x 14.80.

Technical data

Technical data

Application	Mounting box
Blanking lid	no
Device type	Data technology
Fastening type	Lockable
Installation technology	Miscellaneous
Labelling panel	no
Length	65 mm

Material	Stainless steel
Number of installable devices	2
Number of single openings	2
suitable for data connection module	Type A
Suitable for labelling panel	no
Width	36 mm

All types

All types

Types	Number of installable devices	suitable for data connection module	Item no.	Quantity	SSU
MP R2 2A	2	Type A	7408802	piece	25 piece
MP R2 2B	2	Type B	7408804	piece	25 piece
MP R2 2C	2	Type C	7408806	piece	25 piece
MP R2 2F	2	Type F	7408808	piece	25 piece
MP R2 LE	1	Type LE	7408810	piece	25 piece
