Mounting plate for data technology, type B
Item no. 7408804 | EAN 4012196460687
- Product description
-

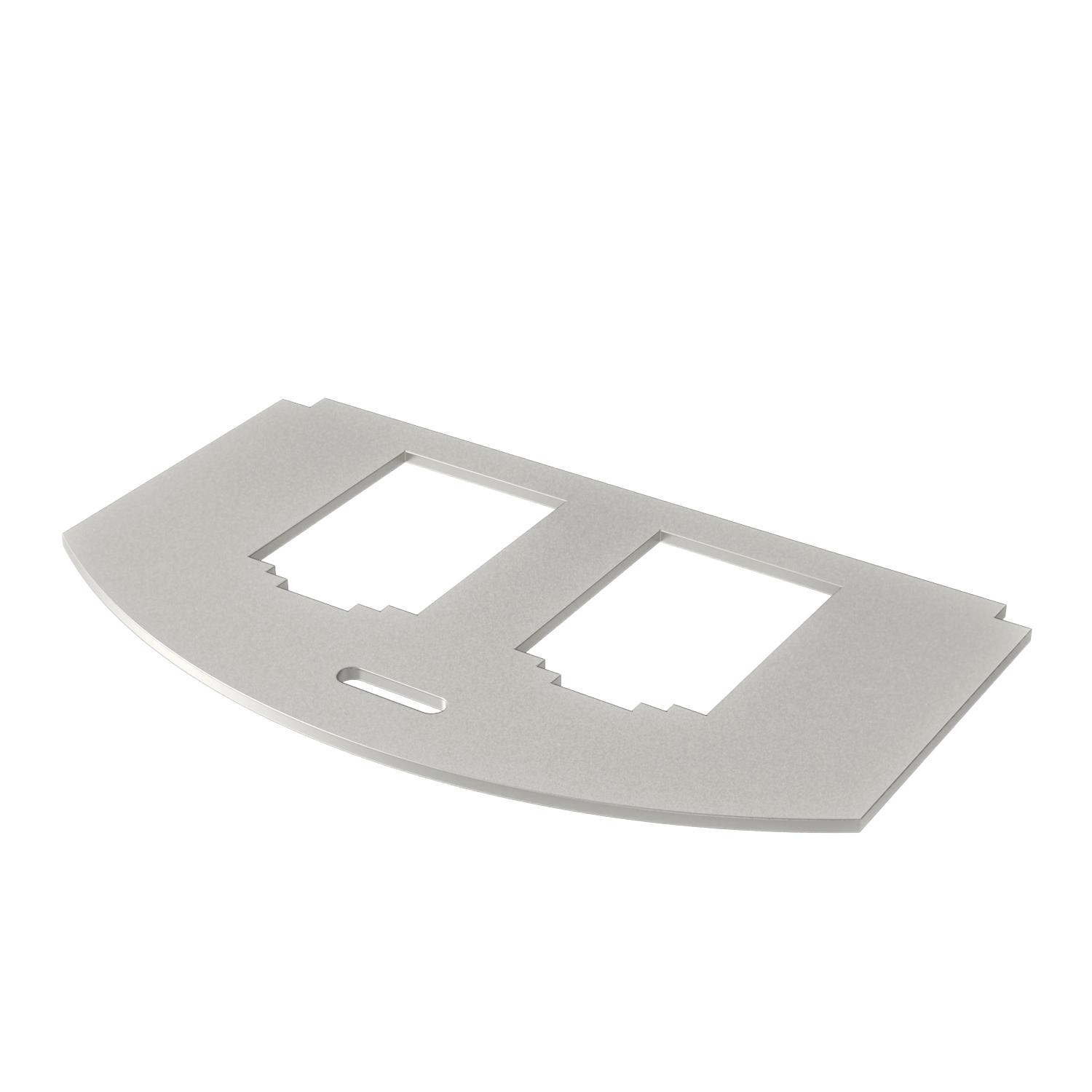

Product descriptionMounting plate to accept two connection modules for data connection modules of the following types BTR: E-DAT; Dätwyler: MS and MS-N; Kerpen: VarioKeystone.

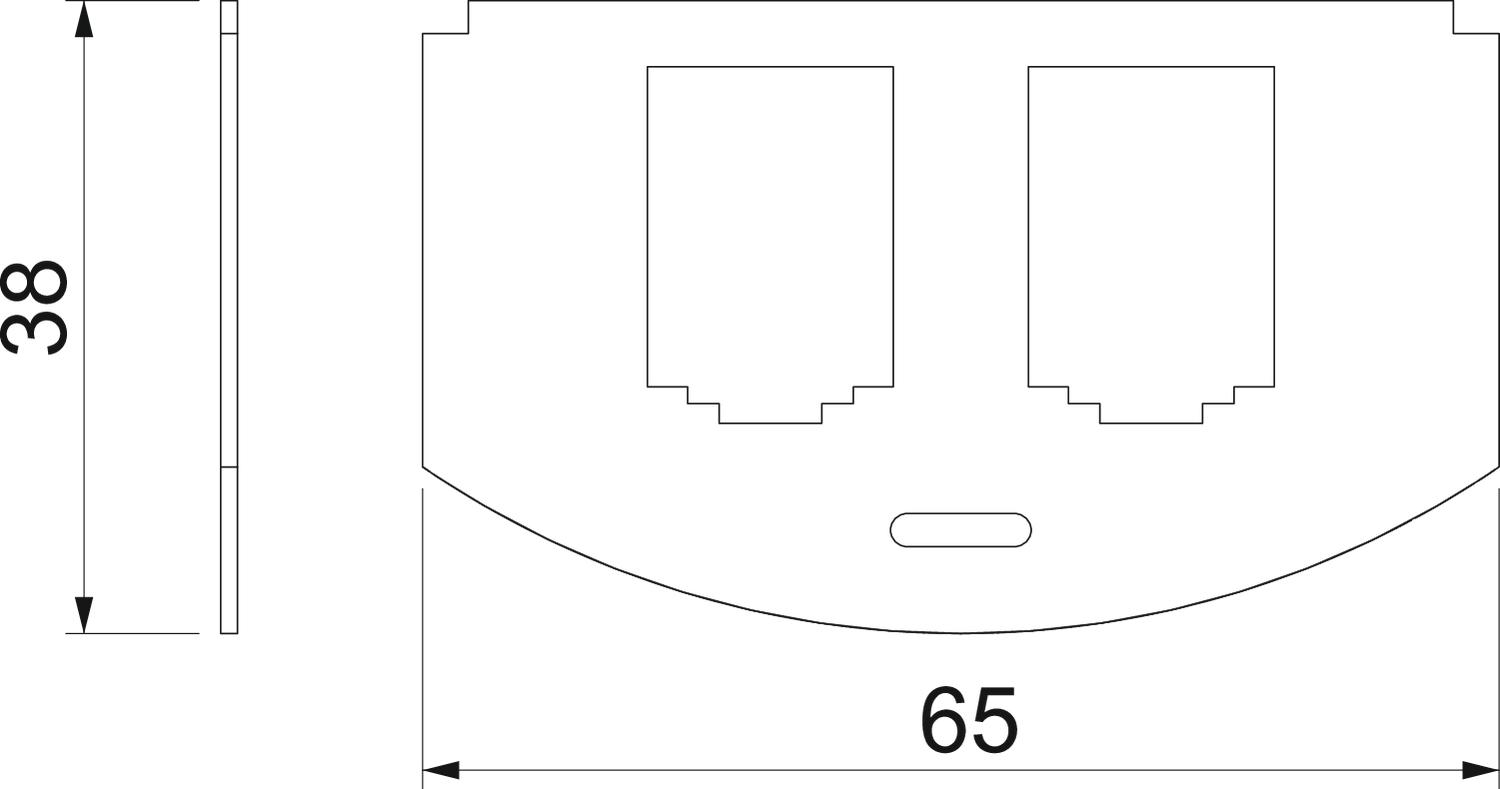

Dimensions of a mounting opening in mm: 19.35/21.55 x 14.85.
-
- Technical data
-
Technical data
Application Mounting box Blanking lid no Device type Data technology Fastening type Lockable Installation technology Miscellaneous Labelling panel no Length 65 mm Material Stainless steel Number of installable devices 2 Number of single openings 2 suitable for data connection module Type B Suitable for labelling panel no Width 36 mm - All types
