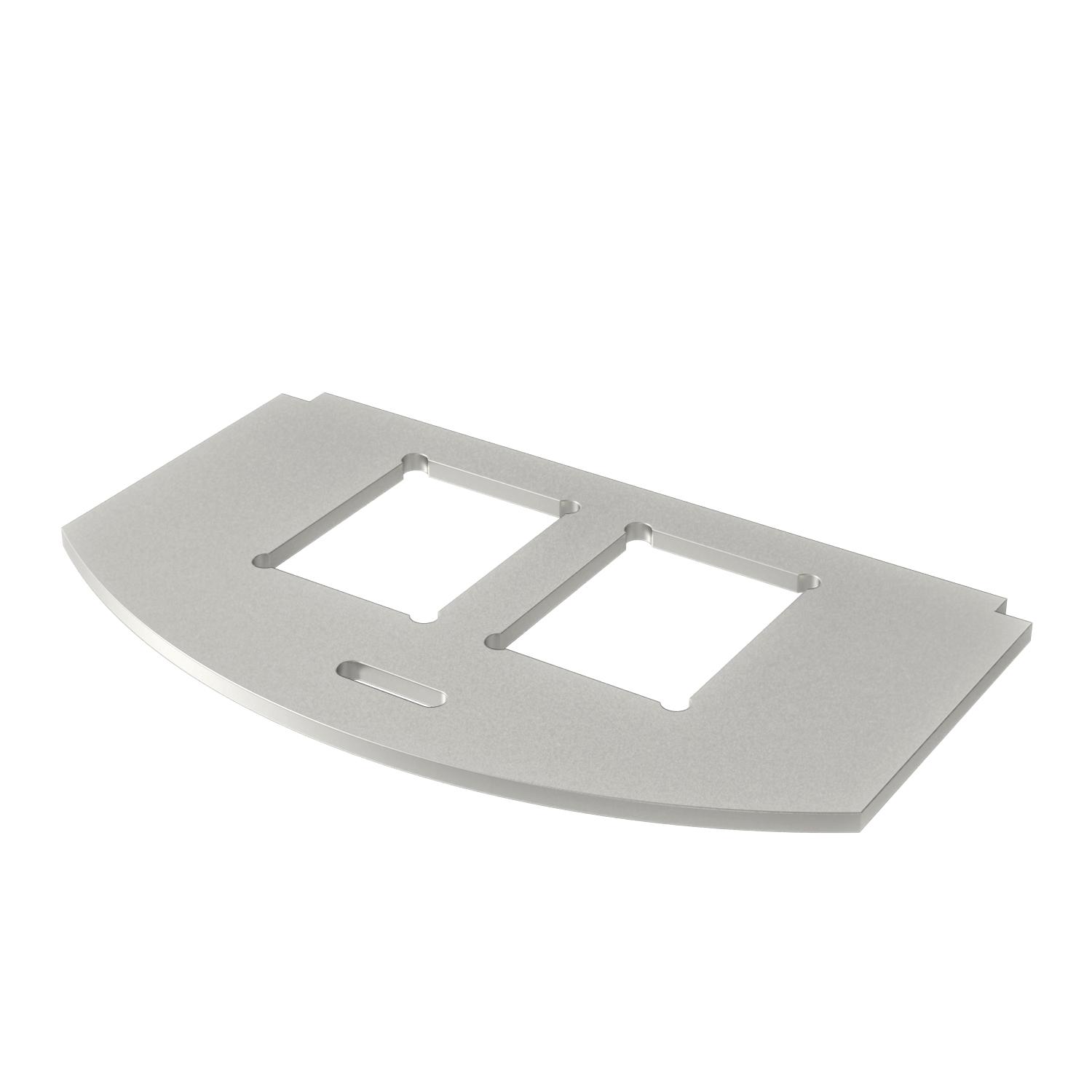

Mounting plate for data technology, type C
Item no. 7408806 | EAN 4012196460724
- Product description
-
Product descriptionMounting plate to accept two data connection modules of the following types: Brand-Rex: shielded; EKU: E-Stone; Dätwyler: KS-T, MS-K and KU-T module; R&M: Snap-In and Keystone; Rutenbeck: UM and UMflex; SETEC: MKJ, UKJ and XKJ; Siemon TERA; Telegärtner: AMJ and UMJ.

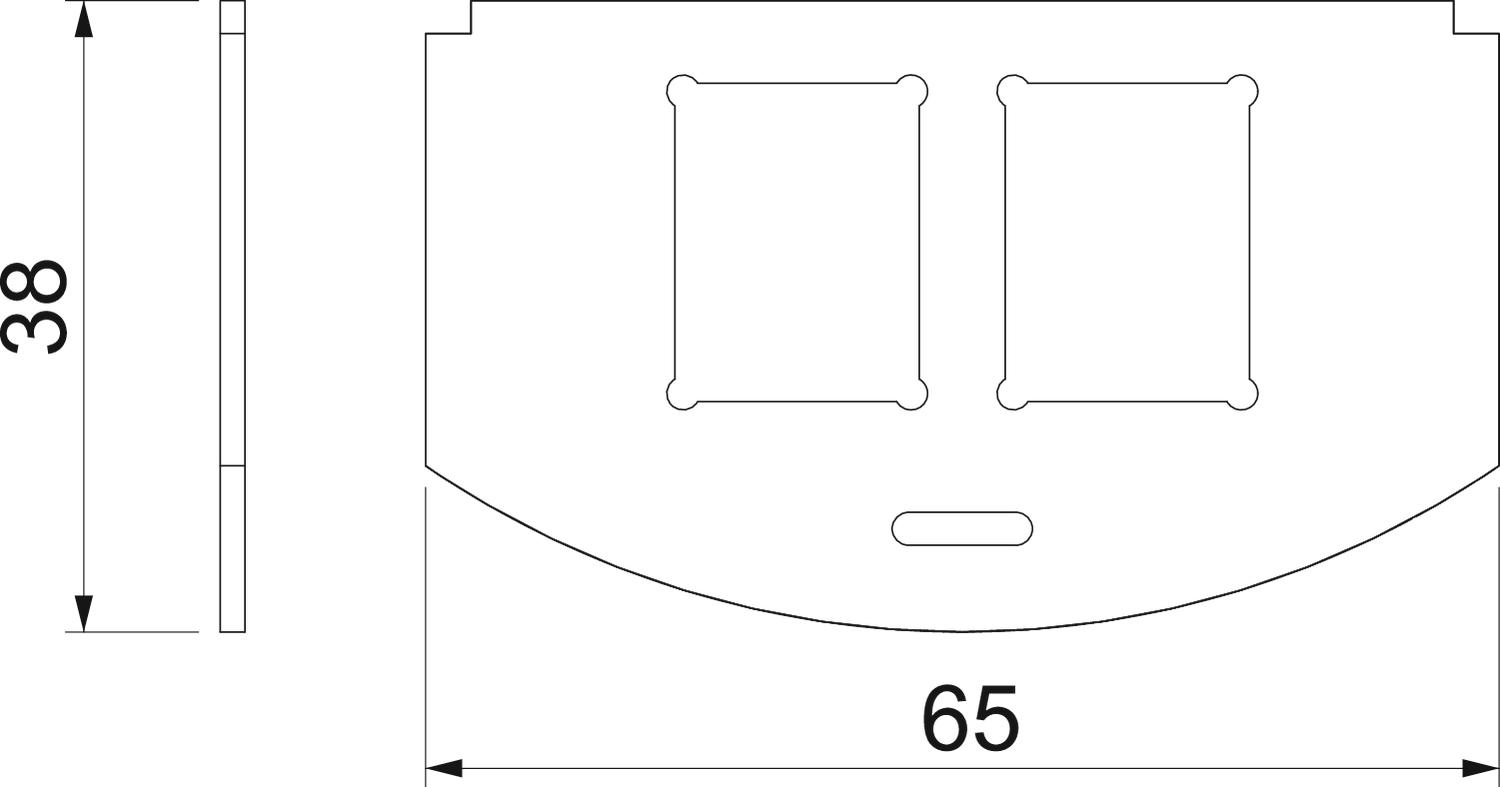

Dimensions of a mounting opening in mm: 19.30 x 14.80.
-
- Technical data
-
Technical data
Application Mounting box Blanking lid no CO₂ Footprint (GWP) Cradle-to-Gate 0,265 kg CO₂e / 1 Piece Device type Data technology Fastening type Lockable Installation technology Miscellaneous Labelling panel no Length 65 mm Material Stainless steel Number of installable devices 2 Number of single openings 2 suitable for data connection module Type C Suitable for labelling panel no Width 36 mm - All types
- Downloads
-
Data sheet MP R2 2C / 7408806 , 0.16MB , pdfBrochure GES R2 floor sockets , 2.10MB , pdfEU declaration of conformity MP R2 2C / 7408806 , 0.11MB , pdfREACH Declaration of conformity MP R2 2C / 7408806 , 0.12MB , pdfRoHS Declaration of conformity MP R2 2C / 7408806 , 0.13MB , pdfLabel approval VDE symbol approval, GES R2 , 0.19MB , pdfMounting instructions Floor socket GES R2 , 1.06MB , pdfMounting instructions Long instructions, floor socket GES R2 , 0.83MB , pdf
