Mounting plate – GMPL9 2
Item no. 7405727 | EAN 4012195906063
- Product description
-
Product description
Mounting plate for reinforcement under an installation unit of nominal size 9 or R9. Suitable for the installation of series-mounted devices with a total width of 9 sub-units (9 SU).
-
- Technical data
-
Technical data

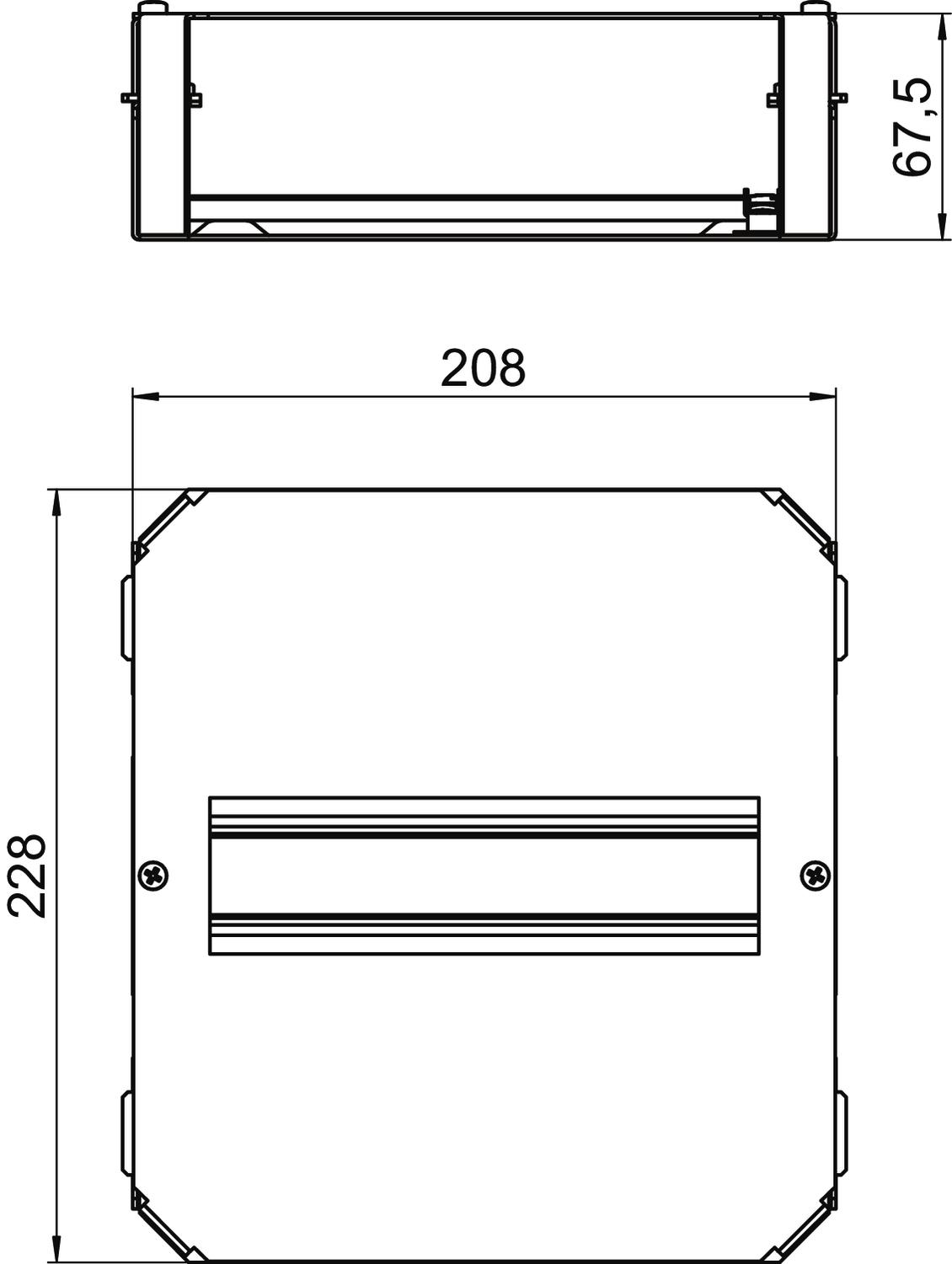

Colour Graphite black; RAL 9011 Dimension 208x228x67 Floor plate no Material Steel Seal installation option no Suitable for cavity floor installation yes Suitable for raised floor installation yes Suitable for screed-covered underfloor ducts yes Suitable for screed-flush closed underfloor ducts yes Suitable for underfloor ducts yes Surface Strip galvanized - All types
