Mounting rail MS4022, heavy-duty, slot 18 mm, A4, perforated 6000 | 40 | 22.5 | 2 | Bright, treated
morepic-1 morepic-2 video-1

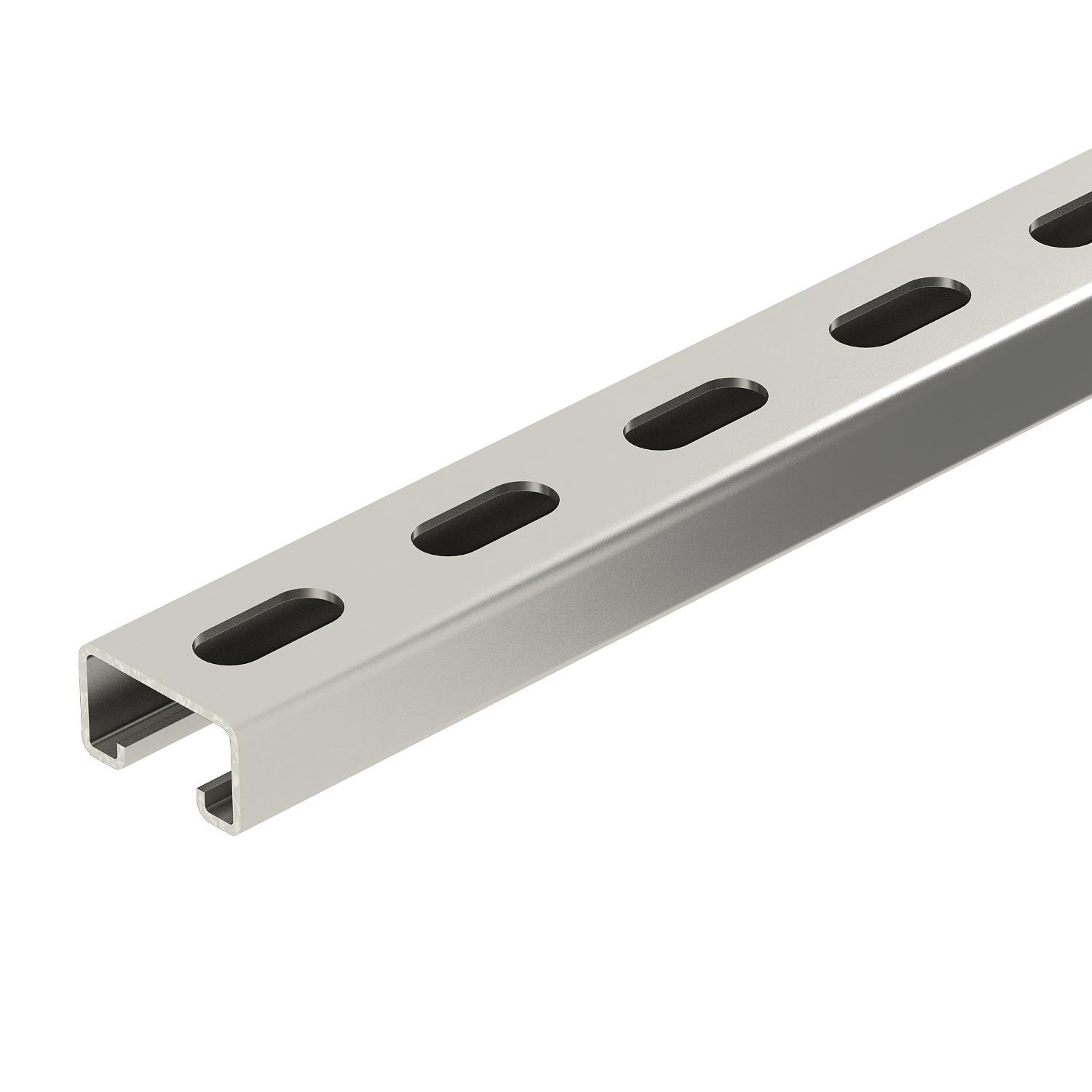

Mounting rail MS4022, heavy-duty, slot 18 mm, A4, perforated

Item no. 1121903 | EAN 4012195907022

40 mm
22.5 mm
2 mm
Bright, treated
Product description

Product description

Heavy-duty C profile rail for individual installation of support constructions, e.g. for cable trays or as a panel for switchgear cabinets. Can also be used for cable routing, in conjunction with clamp clips with a U foot.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Slot width 18 mm
  • Clamp clip for C profile rail, slot width 18–22 mm
  • Bolt-firing tool
  • Nail device
Technical data

Technical data

Dimension 6000x40x22,5
Drill hole spacing, centre 50 mm
Material Stainless steel
Material thickness 2 mm
Profile shape C profile
Slot width 18 mm
Static value A 1,74 cm²
Static value ly 1,86 cm
Static value lz 4,46 cm
Static value Wy 1,05 cm²
Static value Wz 2,23 cm²
Surface Bright, treated
Type of perforation Perforated back
Version for Single profile
With perforation no
With toothing no

Dimensions

Dimension L 6000 mm
Height 22,5 mm
Length 6000 mm
Width 40 mm
All types

All types

Types Length Width Height Material thickness Surface Item no. Quantity SSU
MS4022P6000A4 6000 mm 40 mm 22.5 mm 2 mm Bright, treated 1121903
6 m
MS4022P2000A4 2000 mm 40 mm 22.5 mm 2 mm Bright, treated 1121963
2 m
Accessories

Mounting accessories

Products Types Item no. Quantity SSU
Slide nut A4 Slide nut A4 MS40SN M10 A4 1147134
50 piece
Hook-head screw A4 Hook-head screw A4 MS40HB M10x30 A4 1148160
50 piece
