Mounting set for frame cassettes ‒ MS250-3 3UT4 268
morepic-1 morepic-2

Mounting set for frame cassettes ‒ MS250-3 3UT4

Item no. 7407643 | EAN 4012196552948

7407643 / MS250-3 3UT4
268 mm
Product description

Product description

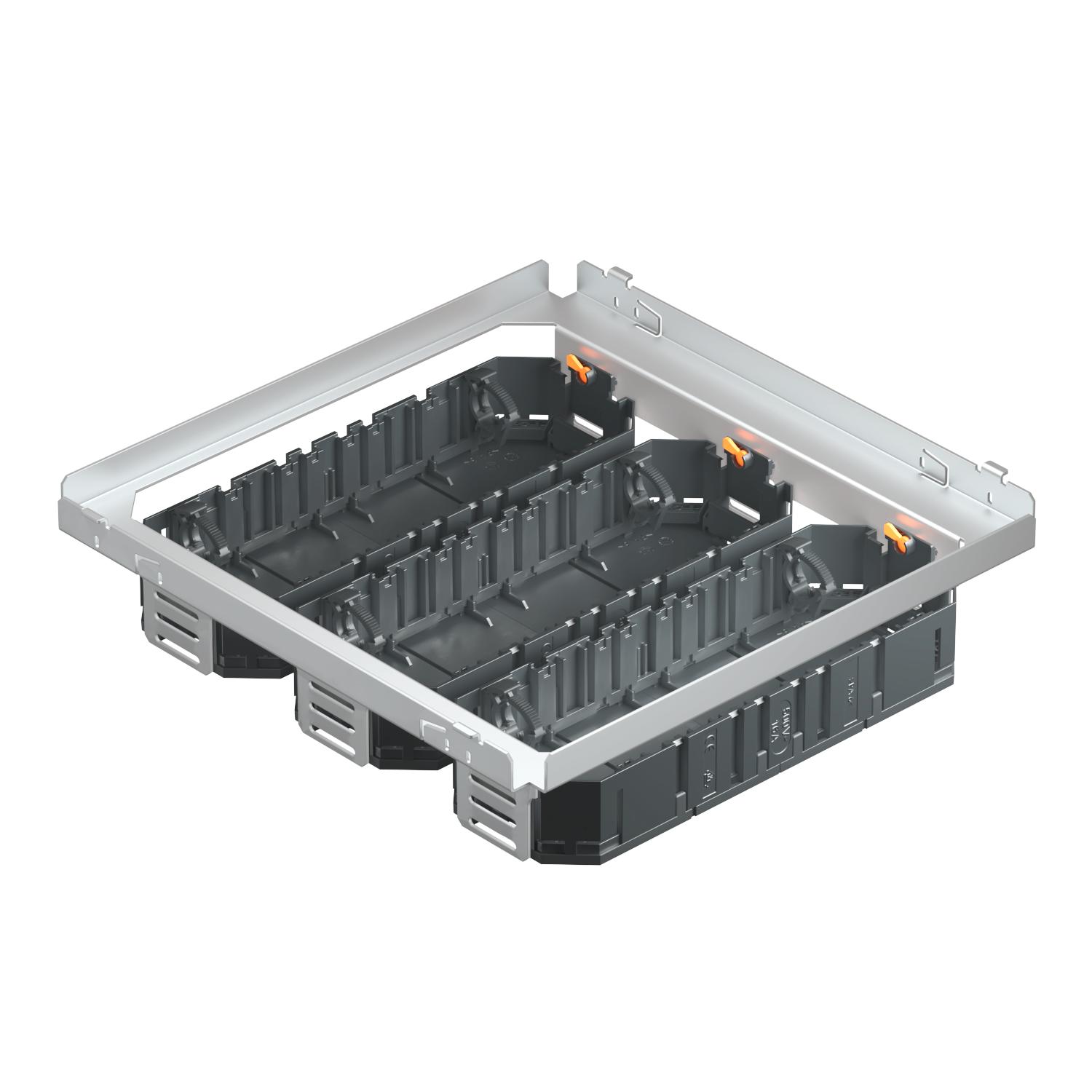

Mounting set with three universal supports of type UT3 for suspended installation in the underfloor junction and branch box UZD250-3.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Dimension 262x262x65
Material Steel
No. of entries 4
Number of installable devices 12
Number of strain reliefs 6
Surface Strip galvanized
Version for Support shape

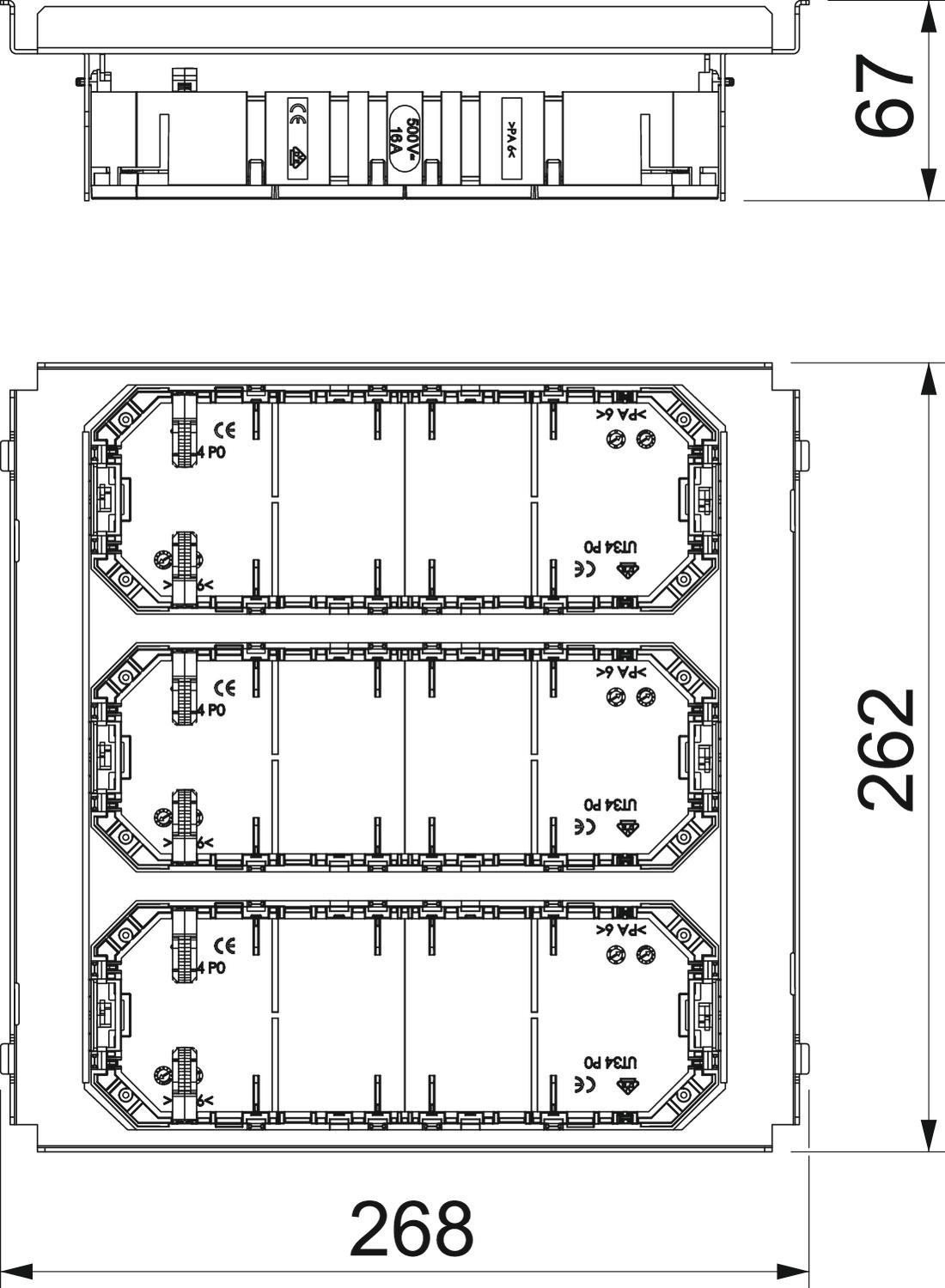

Dimensions

Height 67 mm
Length 268 mm
Width 262 mm
All types

All types

Types Length Item no. Quantity SSU
MS250-3 3UT4 268 mm 7407643
1 piece
