Mounting set for frame cassettes ‒ MS350-3 3UT4 368
morepic-1 morepic-2

Mounting set for frame cassettes ‒ MS350-3 3UT4

Item no. 7407647 | EAN 4012196552955

7407647 / MS350-3 3UT4
368 mm
Product description

Product description

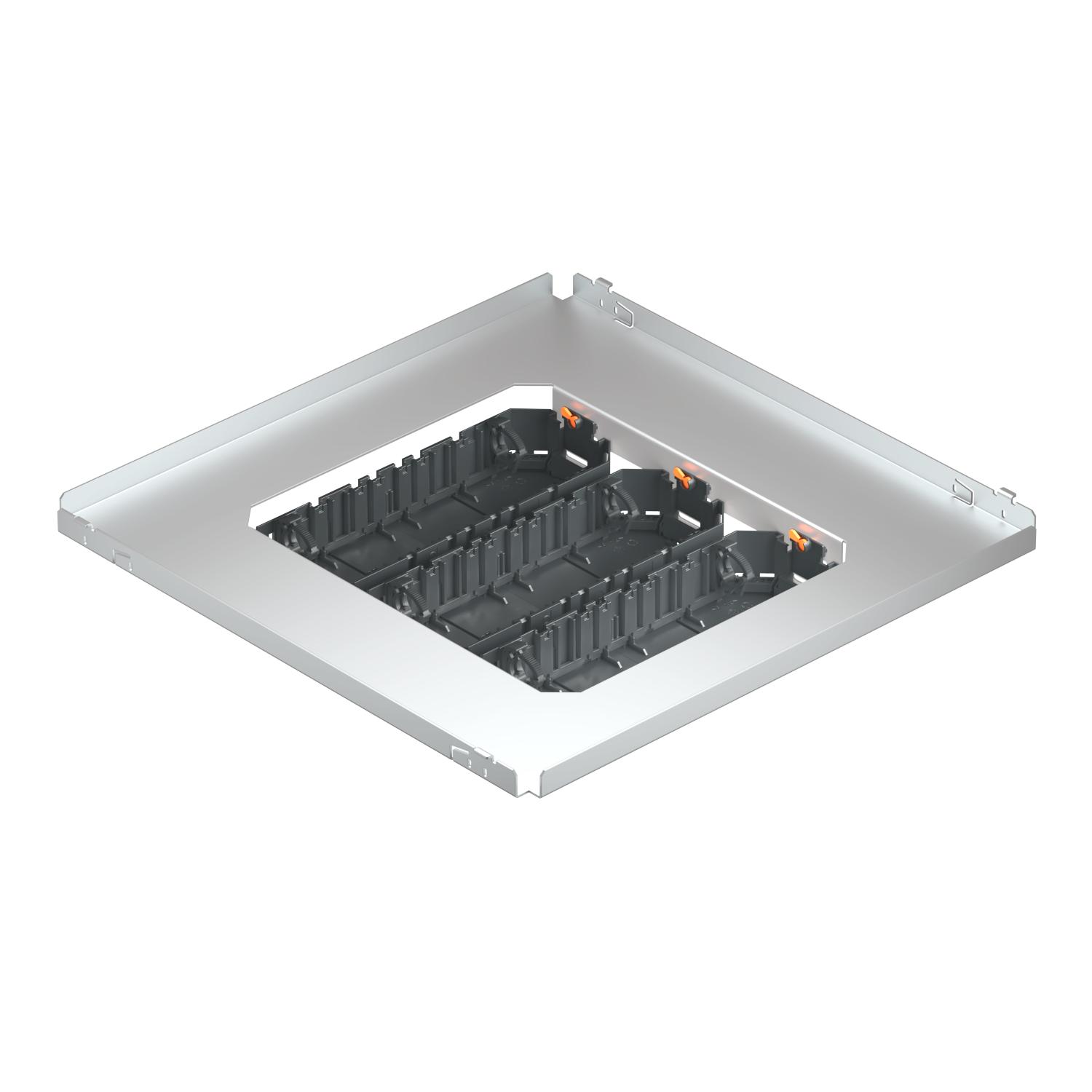

Mounting set with three universal supports of type UT4 for suspended installation in the underfloor junction and branch box UZD350-3.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Dimension 362x362x65
Material Steel
No. of entries 4
Number of installable devices 12
Number of strain reliefs 6
Surface Strip galvanized
Version for Support shape

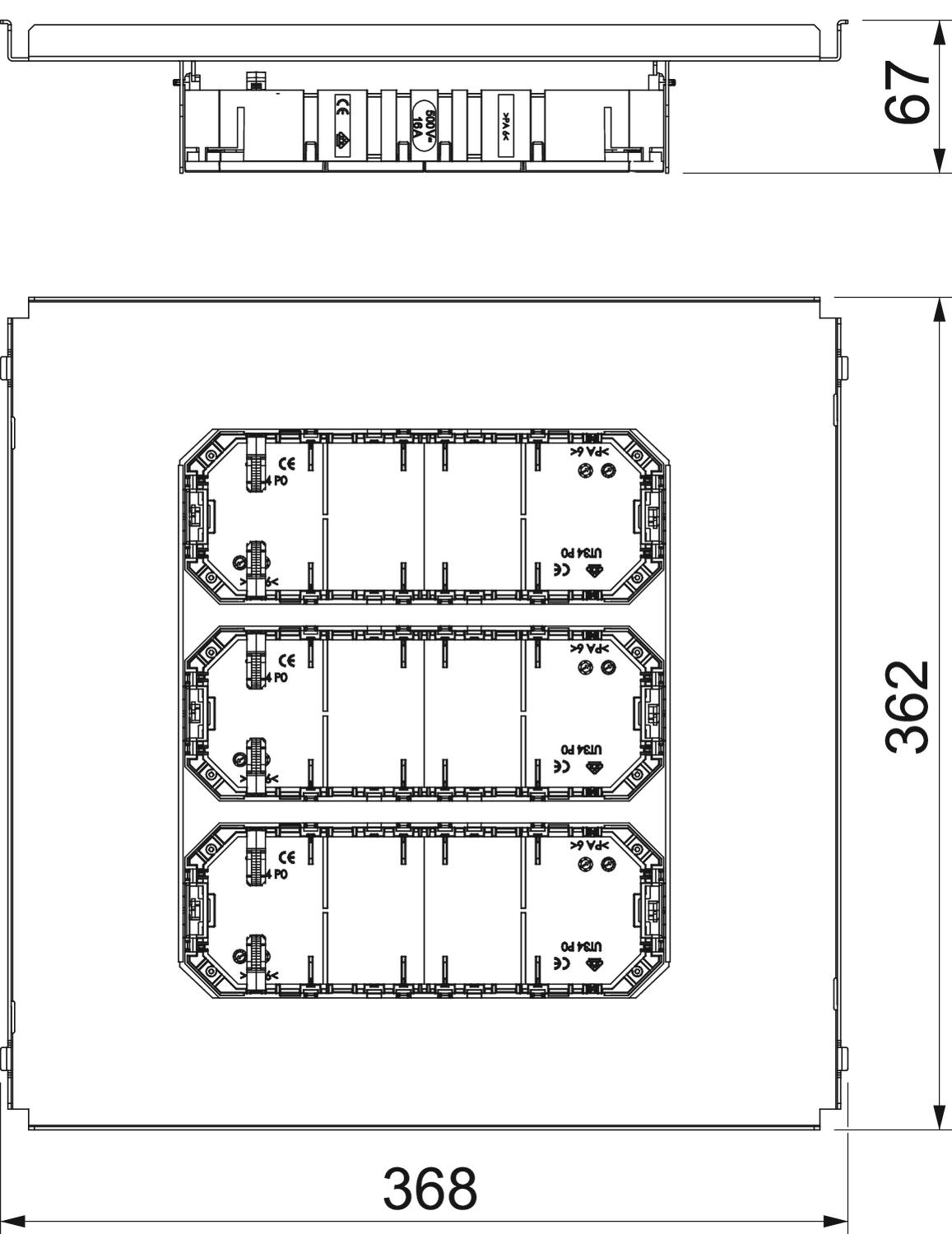

Dimensions

Height 67 mm
Length 368 mm
Width 362 mm
All types

All types

Types Length Item no. Quantity SSU
MS350-3 3UT4 368 mm 7407647
1 piece
