Mounting set VH4 for FI/LS installation Pure white; RAL 9010

morepic-1

morepic-2

Mounting set VH4 for FI/LS installation

Item no. 6109789 | EAN 4012196776252

Item no. / Types

Colour

Product description

Product description

Mounting kit for the installation of series-mounted devices up to 2 part units, e.g. of an FI/LS switch in the freely terminable HoverCube VH4/VH8.

Technical data

Technical data

Blanking lid	no
Colour	Pure white; RAL 9010
Fastening type	Screw-on
Halogen-free	yes
Height	95 mm

Installation technology	Miscellaneous
Material	Polyamide
Number of units	1
Opening shape	Rectangular
Width	95 mm

All types

All types

Types	Colour	Item no.	Quantity	SSU
VH MS FILS	Yellow	6109788	piece	1 piece
VH MS FILS RW	Pure white; RAL 9010	6109789	piece	1 piece

Downloads

Data sheet VH MS FILS RW / 6109789 , 0.14MB , pdf

Brochure Power supply units VH and VHF , 3.11MB , pdf

Catalogue Installation systems , 28.45MB , pdf

REACH Declaration of conformity VH MS FILS RW / 6109789 , 0.12MB , pdf

Download

RoHS Declaration of conformity VH MS FILS RW / 6109789 , 0.13MB , pdf

Download

Mounting instructions Montagekit VH , 10.17MB , pdf

Download

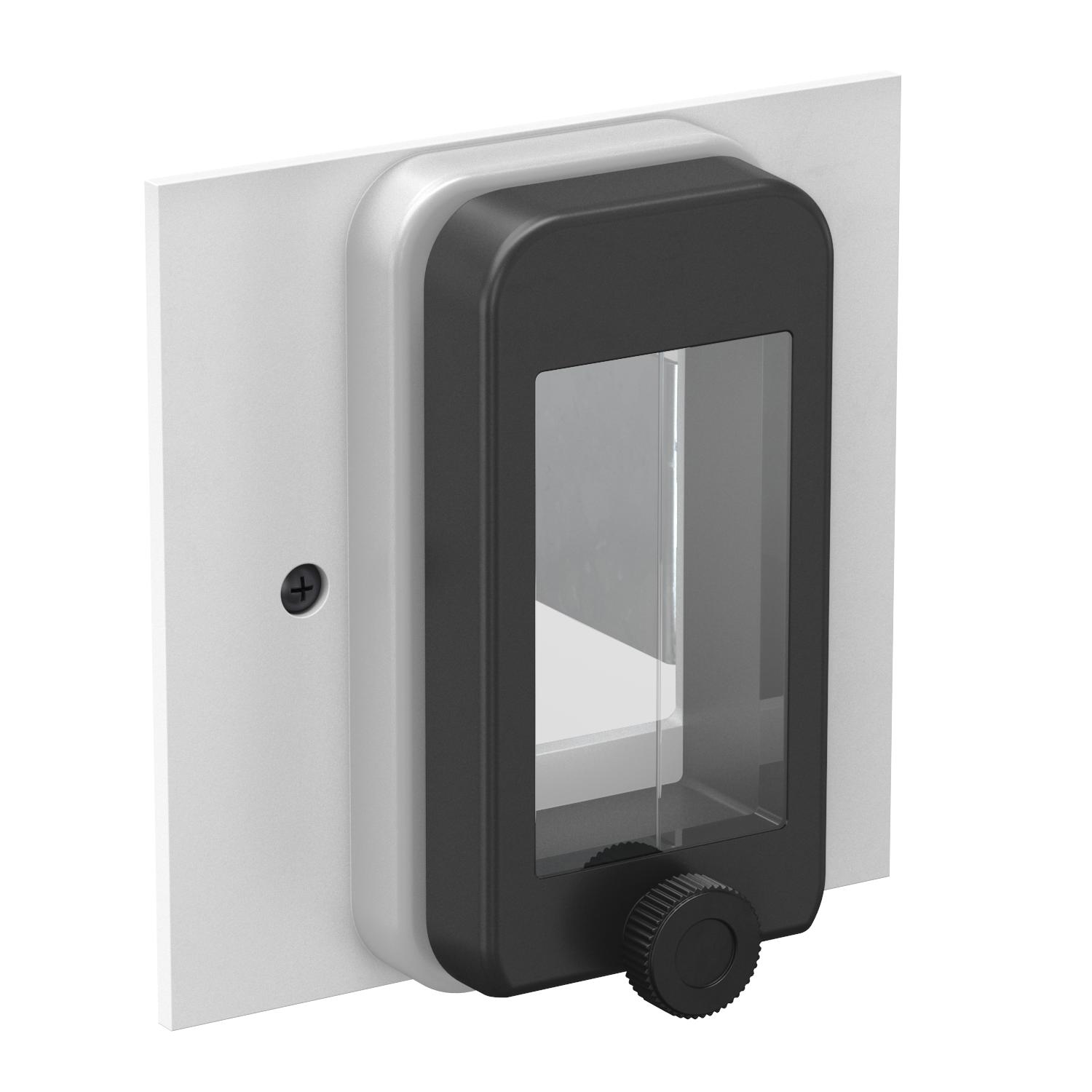

Product graphic VH MS FILS RW / 6109789, 74.01 kB, jpg

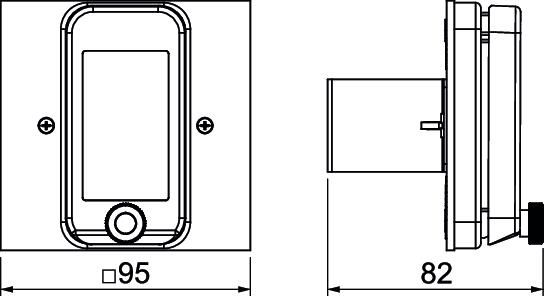

Scale drawing VH MS FILS RW / 6109789, 18.90 kB, jpg

VH MS FILS RW / 6109789

6109789_KSTP1.stp, 6.01 MB
