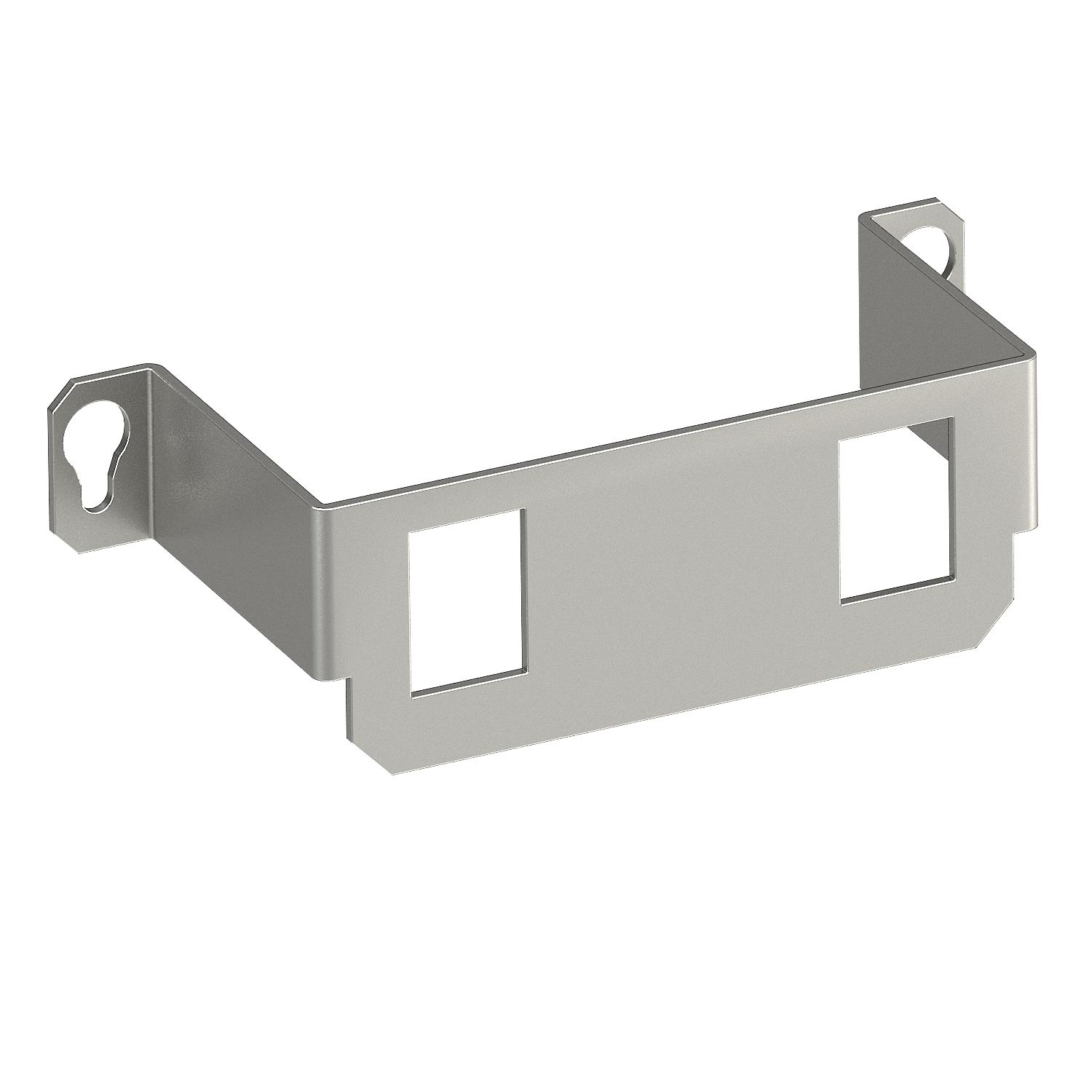

Mounting support, 2 x type A
Item no. 7407594 | EAN 4012195864936
- Product description
-
Product descriptionMounting support to accept two data connection modules of the following types: AMP TYCO: Standard 110Connect, SL Series 110Connect and Toolless, AMP-Twist; Brand-Rex: unshielded; GG45; TKM RJ MOD; Nexans: LANmark with Adapter-Clip; Siemon CAT6; 3M K6 and K10.

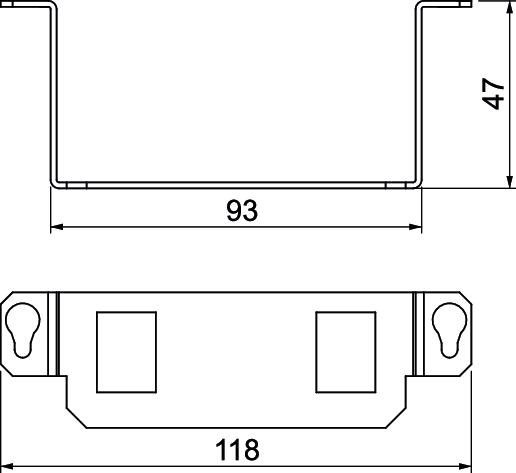

Dimensions of a mounting opening in mm: 20.10 x 14.80.
-
- Technical data
-
Technical data
Accessory mounting type Bolts Decouplable no Depth 47 mm Dimension 118x47x34 Fastening type Lockable Floor covering protection frame no Floor plate no Heavy-duty version no Installation opening for on-floor tank no Labelling panel no Length 118 mm Lowerable to be flush-floor no Material Stainless steel Seal installation option no Strain relief option yes Suitable for cavity floor installation yes Suitable for raised floor installation yes Suitable for screed-covered underfloor ducts yes Suitable for screed-flush closed underfloor ducts yes Suitable for underfloor ducts yes Version for Support shape With floor covering recess no - All types
- Downloads
-
Data sheet MTGE2 15 2A / 7407594 , 0.19MB , pdfEU declaration of conformity MTGE2 15 2A / 7407594 , 0.13MB , pdfLabel approval VDE symbol approval, GES , 0.12MB , pdfNo invitation to tender text is available for this product.
