Product description

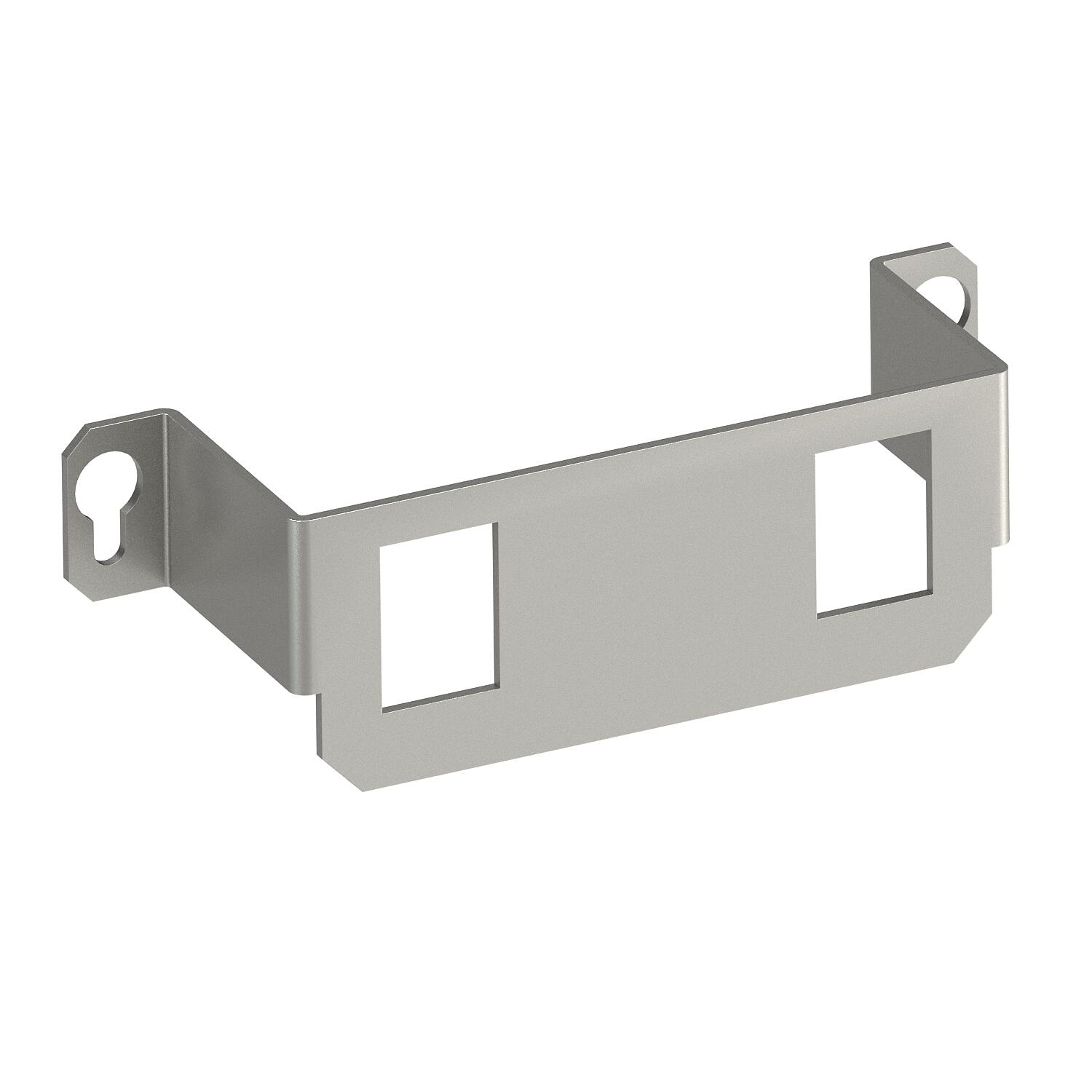

Mounting support to accept two data connection modules of the following types: AMP TYCO: Standard 110Connect, SL Series 110Connect and Toolless, AMP-Twist; Brand-Rex: unshielded; GG45; TKM RJ MOD; Nexans: LANmark with Adapter-Clip; Siemon CAT6; 3M K6 and K10.

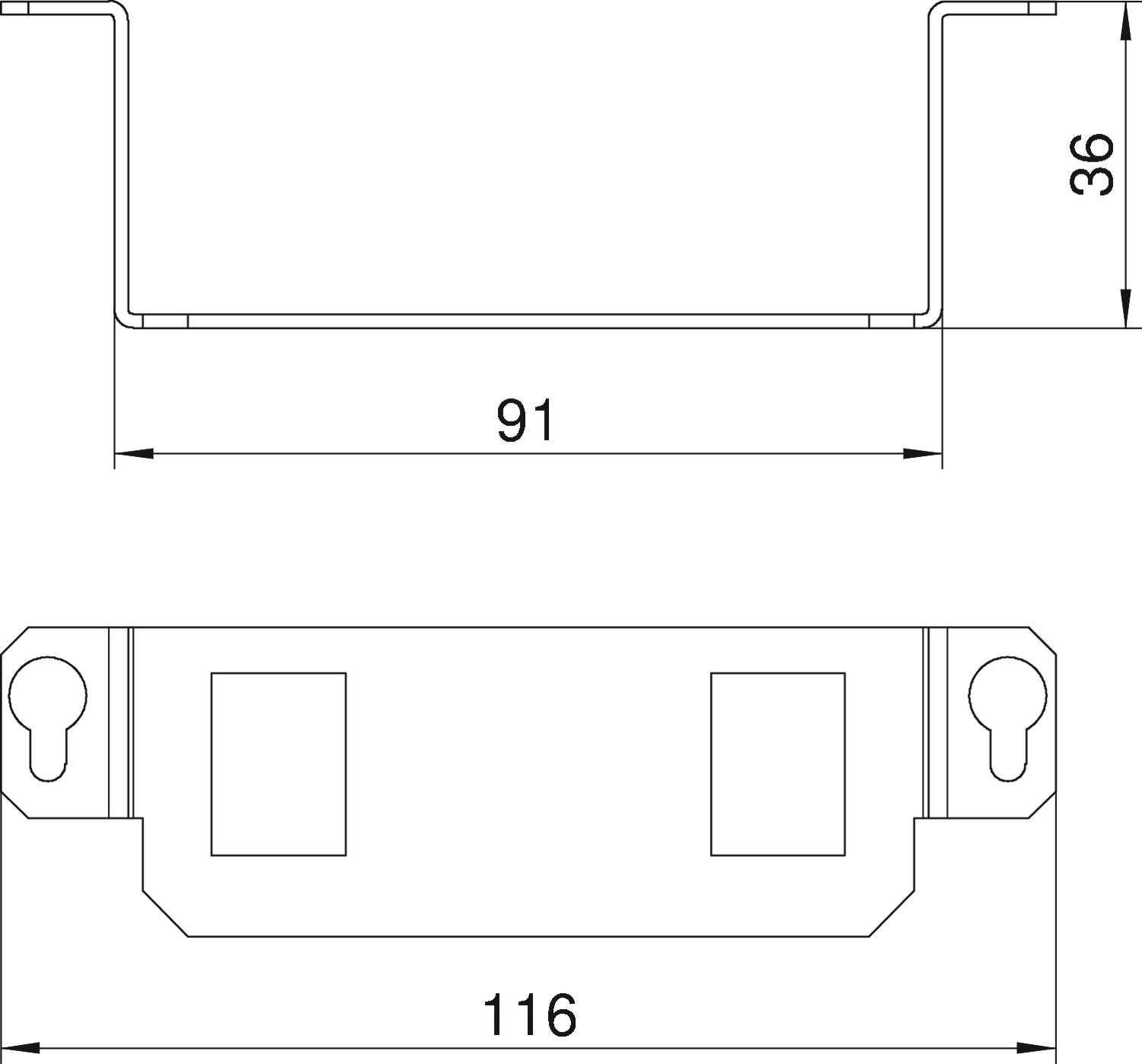

Dimensions of a mounting opening in mm: 20.10 x 14.80.
-
- Technical data
-
Technical data
Decouplable no Depth 36 mm Dimension 116x36x34 Fastening type Lockable Floor covering protection frame no Floor plate no Heavy-duty version no Installation opening for on-floor tank no Labelling panel no Lowerable to be flush-floor no Material Stainless steel Number of installable devices 2 Seal installation option no Strain relief option yes Suitable for cavity floor installation yes Suitable for raised floor installation yes Suitable for screed-covered underfloor ducts yes Suitable for screed-flush closed underfloor ducts yes Suitable for underfloor ducts yes Version for Support shape With floor covering recess no Dimensions
Length 116 mm - All types
- Downloads
-
Data sheet MTGE2 2A / 7407846 , 0.21MB , pdfLabel approval VDE symbol approval, GES , 0.12MB , pdf
