Mounting support, 2 x type B
Item no. 7407595 | EAN 4012195864943
- Product description
-

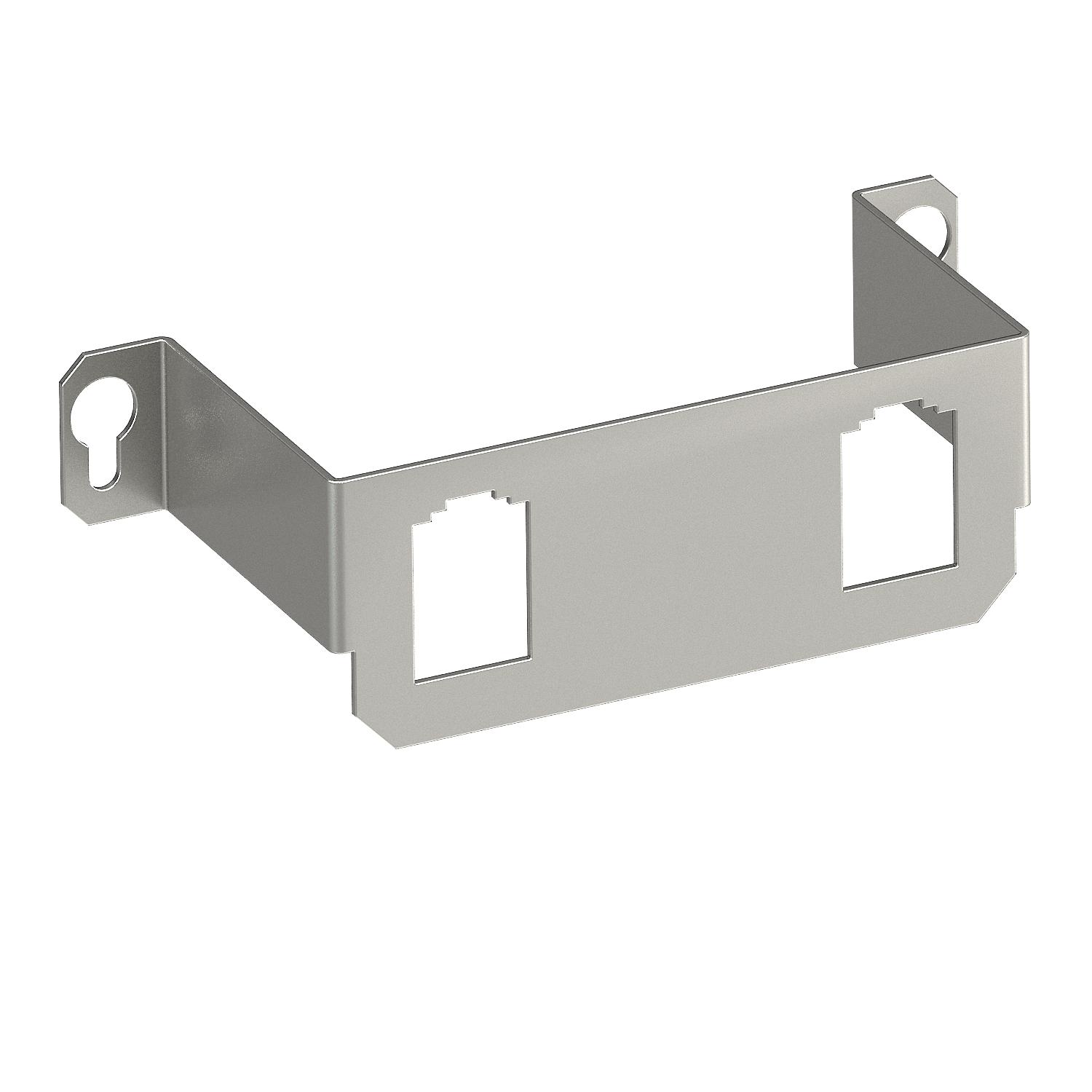

Product descriptionMounting support to accept two data connection modules of the following types BTR: E-DAT; Dätwyler: MS and MS-N; Kerpen: VarioKeystone.

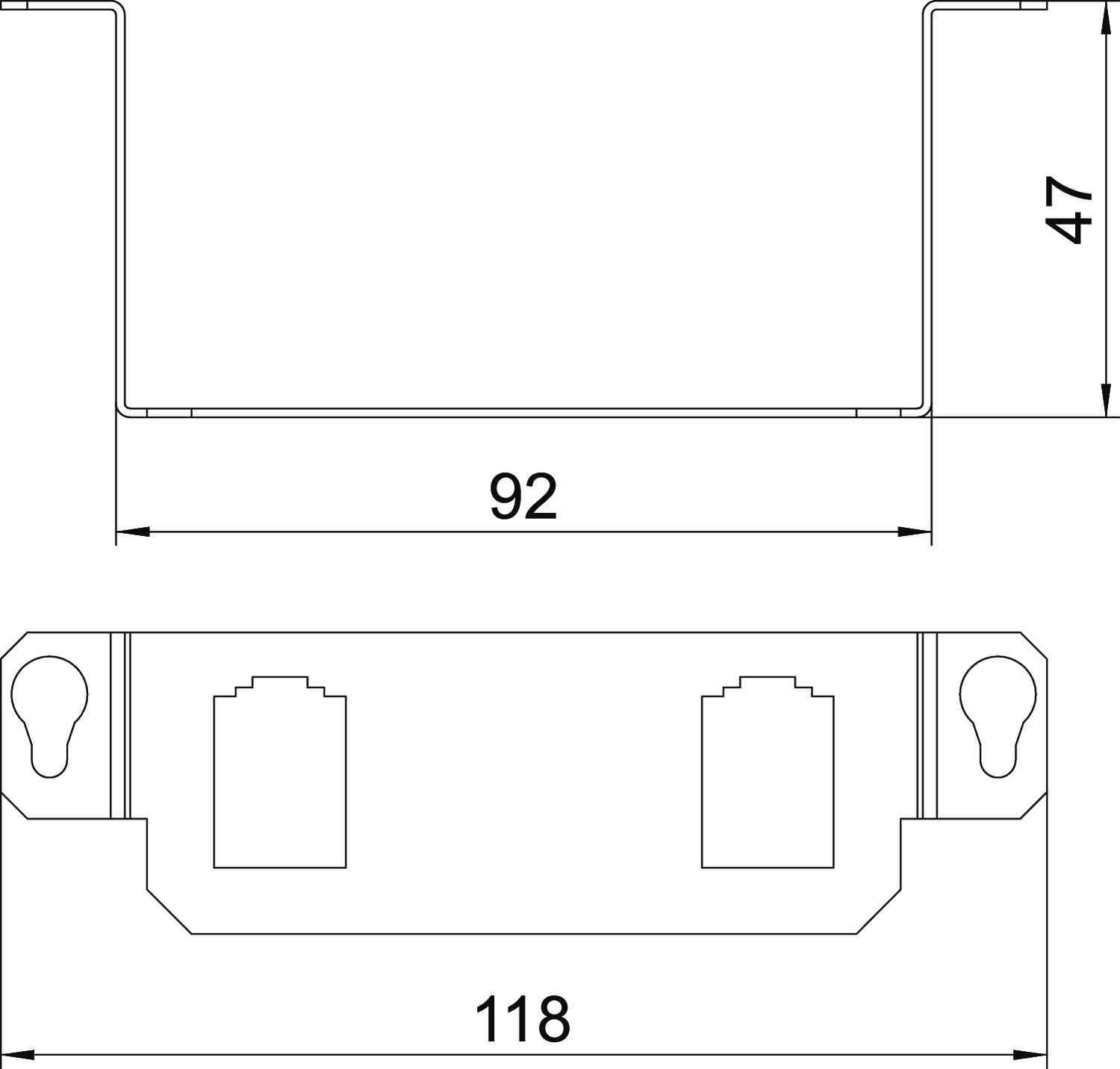

Dimensions of a mounting opening in mm: 19.35/21.55 x 14.85.
-
- Technical data
-
Technical data
Accessory mounting type Bolts Decouplable no Depth 47 mm Dimension 118x47x34 Fastening type Lockable Floor covering protection frame no Floor plate no Heavy-duty version no Installation opening for on-floor tank no Labelling panel no Length 118 mm Lowerable to be flush-floor no Material Stainless steel Seal installation option no Strain relief option yes Suitable for cavity floor installation yes Suitable for raised floor installation yes Suitable for screed-covered underfloor ducts yes Suitable for screed-flush closed underfloor ducts yes Suitable for underfloor ducts yes Version for Support shape With floor covering recess no - All types
- Downloads
-
Data sheet MTGE2 15 2B / 7407595 , 0.16MB , pdfEU declaration of conformity MTGE2 15 2B / 7407595 , 0.13MB , pdfLabel approval VDE symbol approval, GES , 0.12MB , pdfNo invitation to tender text is available for this product.
