Mounting support, 2 x type B
Item no. 7407847 | EAN 4012195626862
- Product description
-
Product description

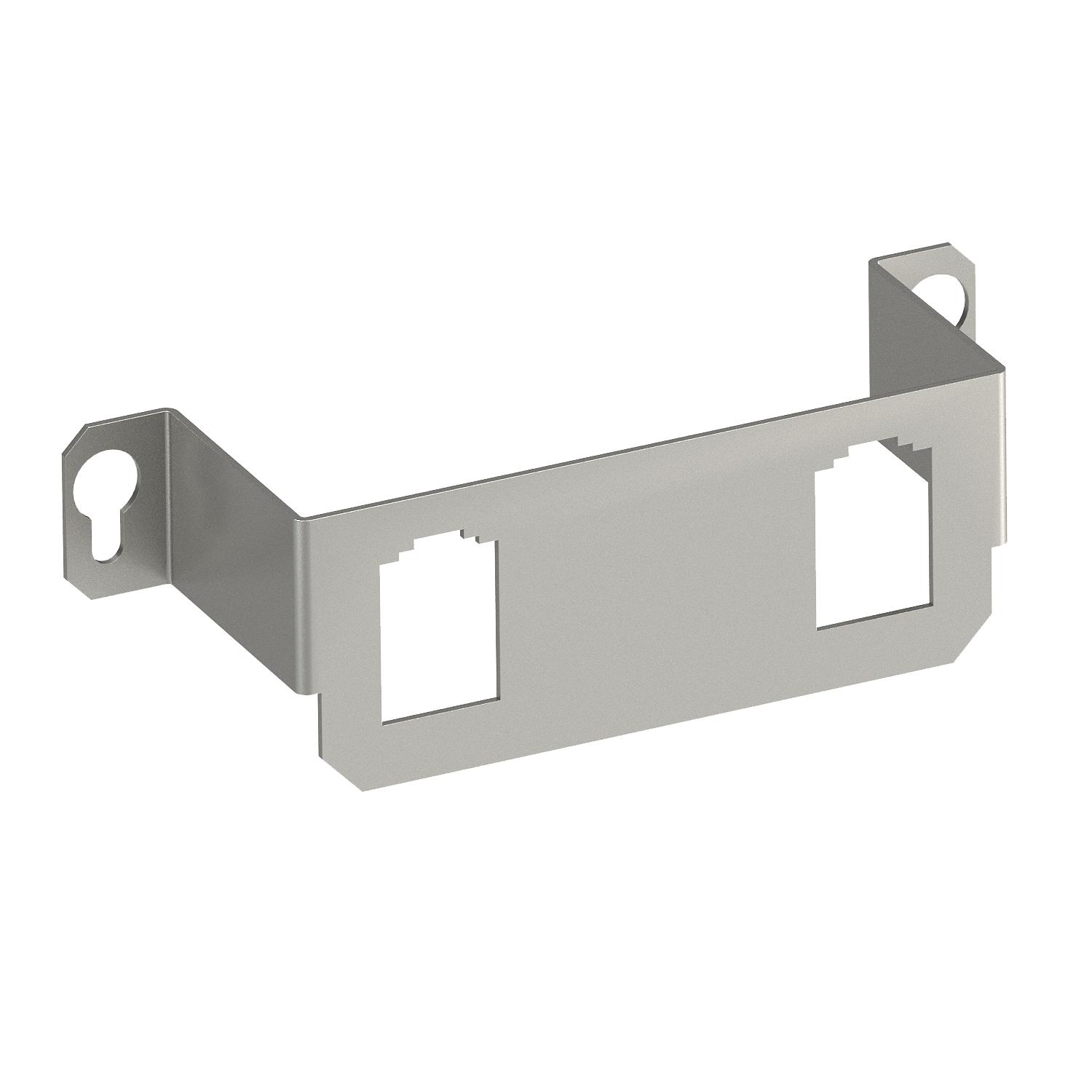

Mounting support to accept two data connection modules of the following types BTR: E-DAT; Dätwyler: MS and MS-N; Kerpen: VarioKeystone.

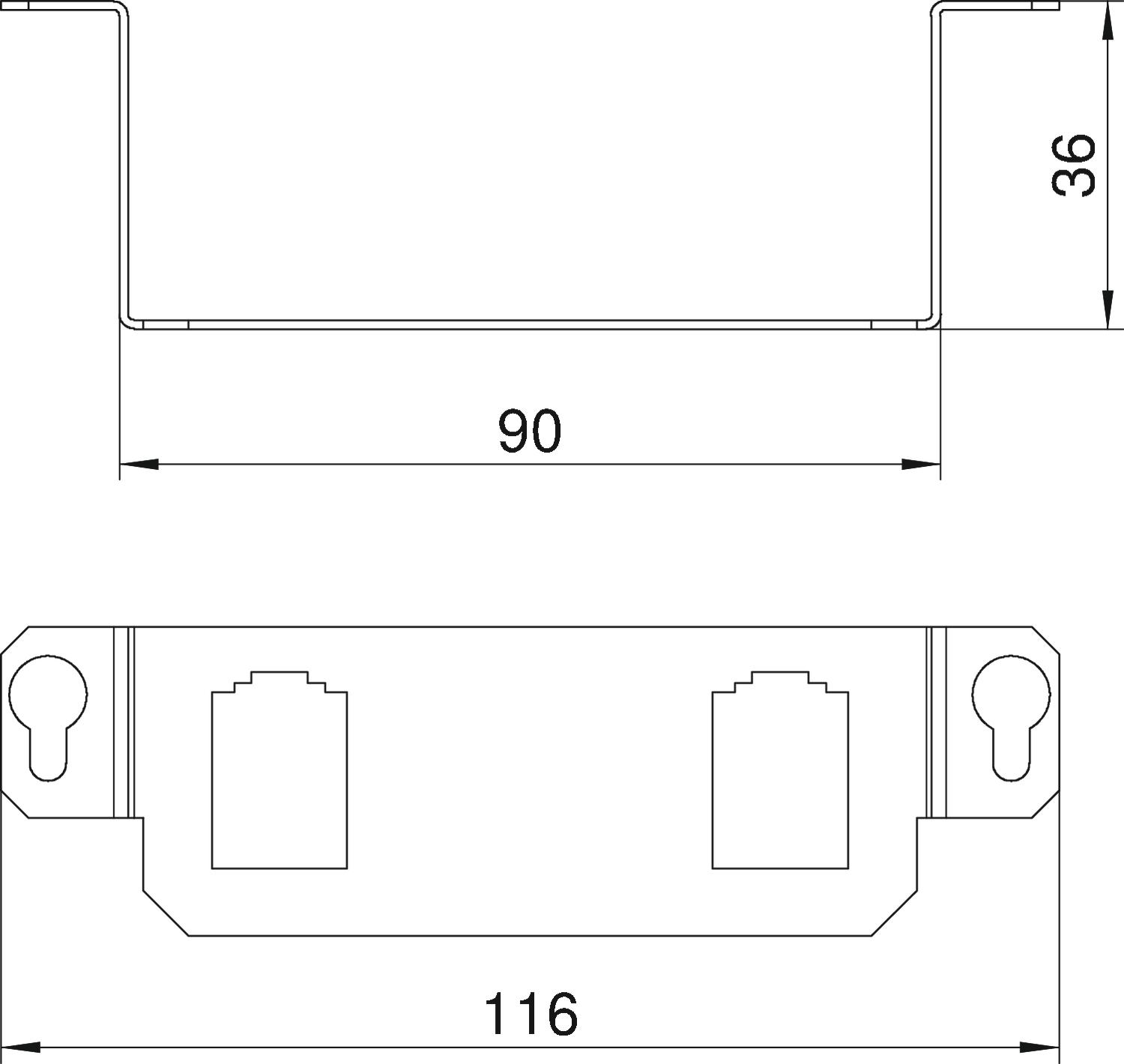

Dimensions of a mounting opening in mm: 19.35/21.55 x 14.85.
-
- Technical data
-
Technical data
Decouplable no Depth 36 mm Dimension 116x36x34 Fastening type Lockable Floor covering protection frame no Floor plate no Heavy-duty version no Installation opening for on-floor tank no Labelling panel no Length 116 mm Lowerable to be flush-floor no Material Stainless steel Number of installable devices 2 Seal installation option no Strain relief option yes Suitable for cavity floor installation yes Suitable for raised floor installation yes Suitable for screed-covered underfloor ducts yes Suitable for screed-flush closed underfloor ducts yes Suitable for underfloor ducts yes Version for Support shape With floor covering recess no - All types
- Downloads
-
Data sheet MTGE2 2B / 7407847 , 0.16MB , pdfLabel approval VDE symbol approval, GES , 0.12MB , pdfNo invitation to tender text is available for this product.
