Mounting support, 2 x type C
Item no. 7407596 | EAN 4012195864950
- Product description
-

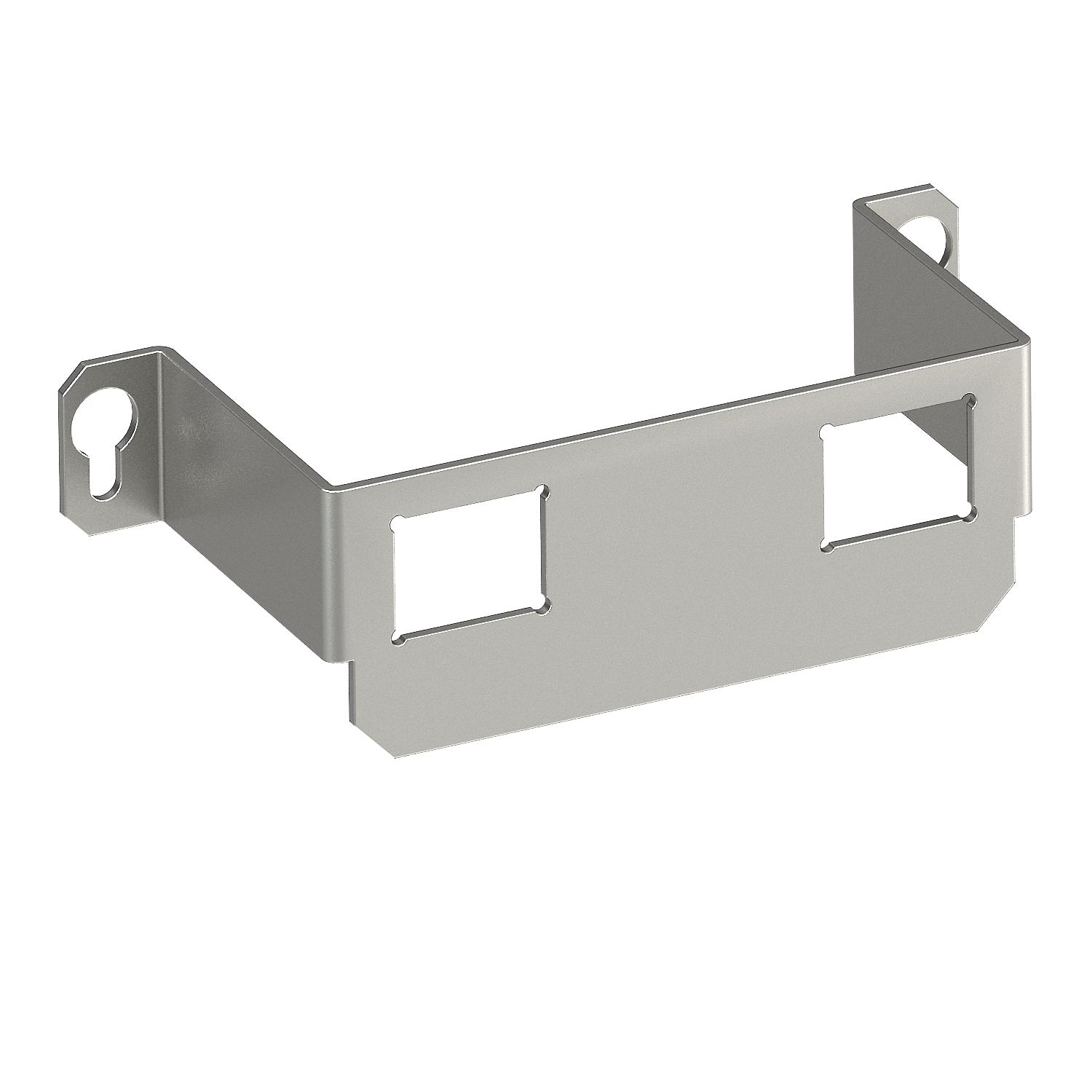

Product descriptionMounting support to accept two data connection modules of the following types: Brand-Rex: shielded; EKU: E-Stone; Dätwyler: KS-T, MS-K and KU-T module; R&M: Snap-In and Keystone; Rutenbeck: UM and UMflex; SETEC: MKJ, UKJ and XKJ; Siemon TERA; Telegärtner: AMJ and UMJ.

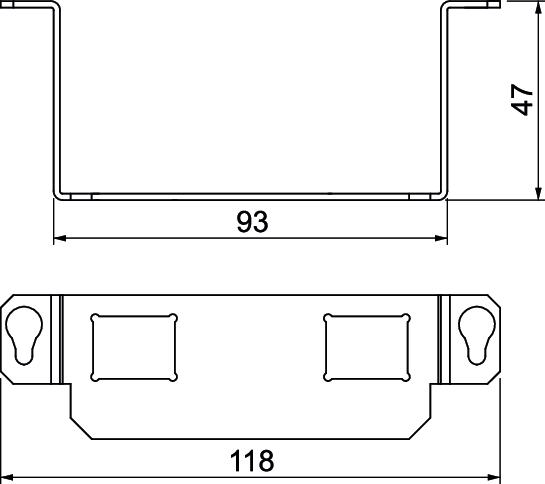

Dimensions of a mounting opening in mm: 19.30 x 14.80.
Suitable for GE2 / UDHome2 installation unit with floor covering recess.
-
- Technical data
-
Technical data
Accessory mounting type Bolts Decouplable no Depth 47 mm Dimension 118x47x34 Fastening type Lockable Floor covering protection frame no Floor plate no Heavy-duty version no Installation opening for on-floor tank no Labelling panel no Length 118 mm Lowerable to be flush-floor no Material Stainless steel Seal installation option no Strain relief option yes Suitable for cavity floor installation yes Suitable for raised floor installation yes Suitable for screed-covered underfloor ducts yes Suitable for screed-flush closed underfloor ducts yes Suitable for underfloor ducts yes Version for Support shape With floor covering recess no - All types
- Downloads
-
Data sheet MTGE2 15 2C / 7407596 , 0.15MB , pdfEU declaration of conformity MTGE2 15 2C / 7407596 , 0.13MB , pdfLabel approval VDE symbol approval, GES , 0.12MB , pdfNo invitation to tender text is available for this product.
