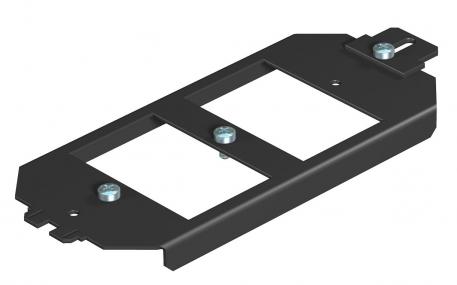

Mounting support for data technology connection sockets, system length 165 mm
Item no. 7407836 | EAN 4012195113287
- Product description
-
Product description
Mounting support for installation of two cover plates and strain relief. Use instead of a UT3 mounting box.
-
- Technical data
-
Technical data
Colour Jet black; RAL 9005 Connection options 2 support plates and strain relief Decouplable no Depth 11,4 mm Dimension 165x76x12 Fastening type Screw-on Floor covering protection frame no Floor plate no Heavy-duty version no Installation opening for on-floor tank no Labelling panel no Length 162 mm Lowerable to be flush-floor no Material Steel Number of installable devices 2 Seal installation option no Strain relief option yes Suitable for cavity floor installation yes Suitable for raised floor installation yes Suitable for screed-covered underfloor ducts yes Suitable for screed-flush closed underfloor ducts yes Suitable for underfloor ducts yes Surface Strip galvanized Version for Support shape Width 76 mm With floor covering recess no - All types
- Downloads
-
Data sheet MTU 2 / 7407836 , 0.17MB , pdfLabel approval VDE symbol approval, GES , 0.12MB , pdfMounting instructions Mounting instructions, mounting support MTU2 MTU3 , 0.03MB , pdfNo invitation to tender text is available for this product.
