- Product description
-
Product description

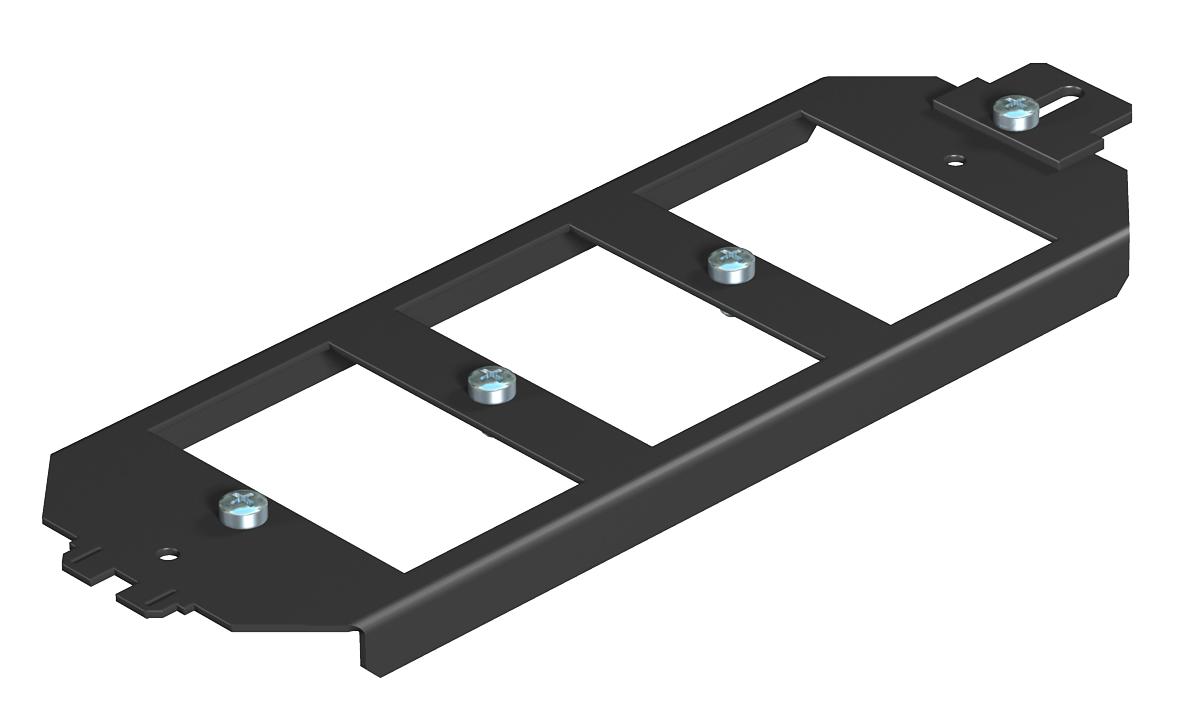

Mounting support for installation of three cover plates and strain relief. Use instead of a UT4 mounting box.
- Technical data
-
Technical data

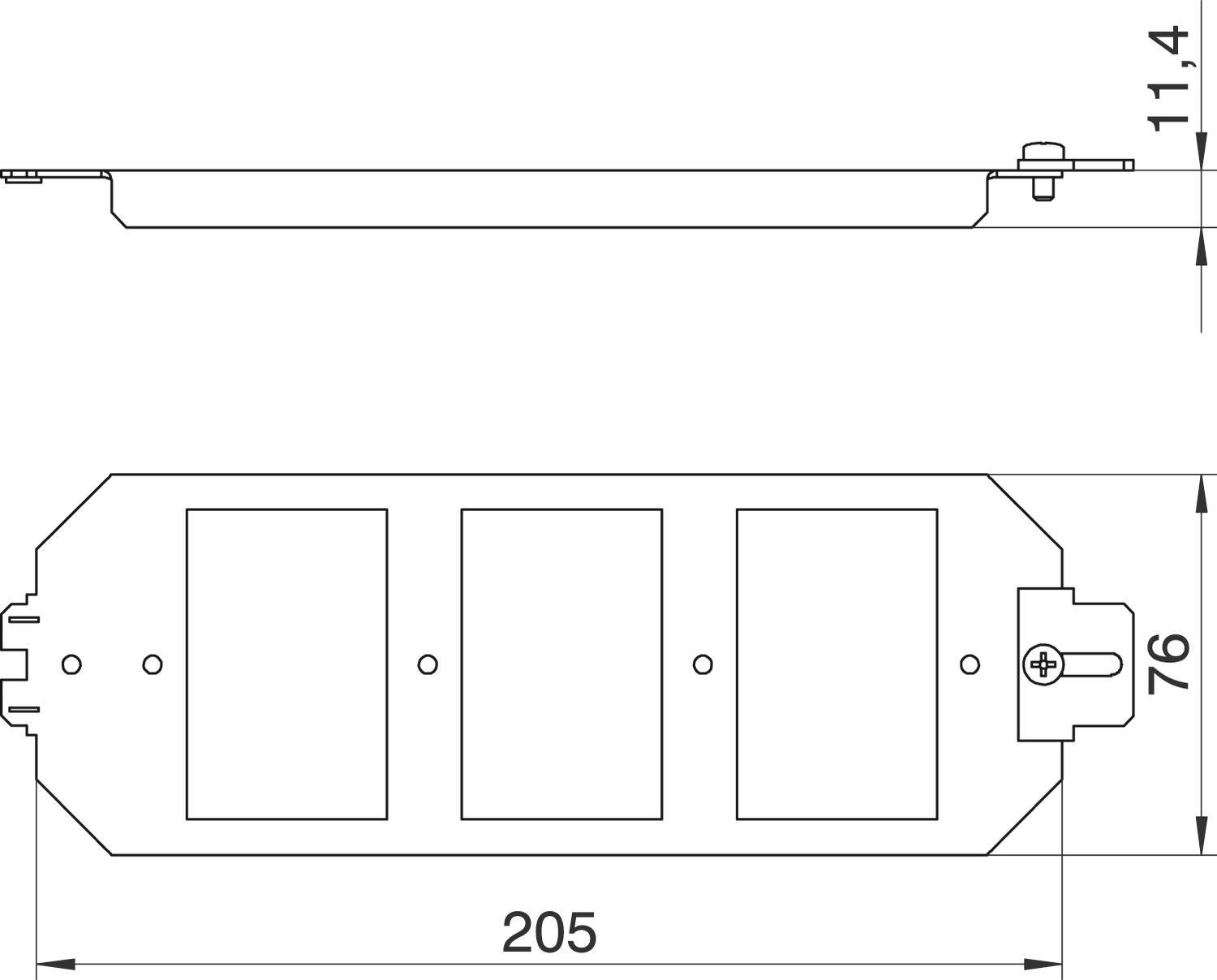

Colour Jet black; RAL 9005 Connection options 3 support plates and strain relief Decouplable no Depth 11,4 mm Dimension 208x76x12 Fastening type Screw-on Floor covering protection frame no Floor plate no Heavy-duty version no Installation opening for on-floor tank no Labelling panel no Length 205 mm Lowerable to be flush-floor no Material Steel Number of installable devices 3 Seal installation option no Strain relief option yes Suitable for cavity floor installation yes Suitable for raised floor installation yes Suitable for screed-covered underfloor ducts yes Suitable for screed-flush closed underfloor ducts yes Suitable for underfloor ducts yes Surface Strip galvanized Version for Support shape Width 76 mm With floor covering recess no - All types
- Downloads
-
Data sheet MTU 3 / 7407840 , 0.19MB , pdfLabel approval VDE symbol approval, GES , 0.12MB , pdfMounting instructions Mounting instructions, mounting support MTU2 MTU3 , 0.03MB , pdf
