Mounting support for GES6
morepic-1 morepic-2

Mounting support for GES6

Item no. 7428230 | EAN 4012195298434

Product description
Product description

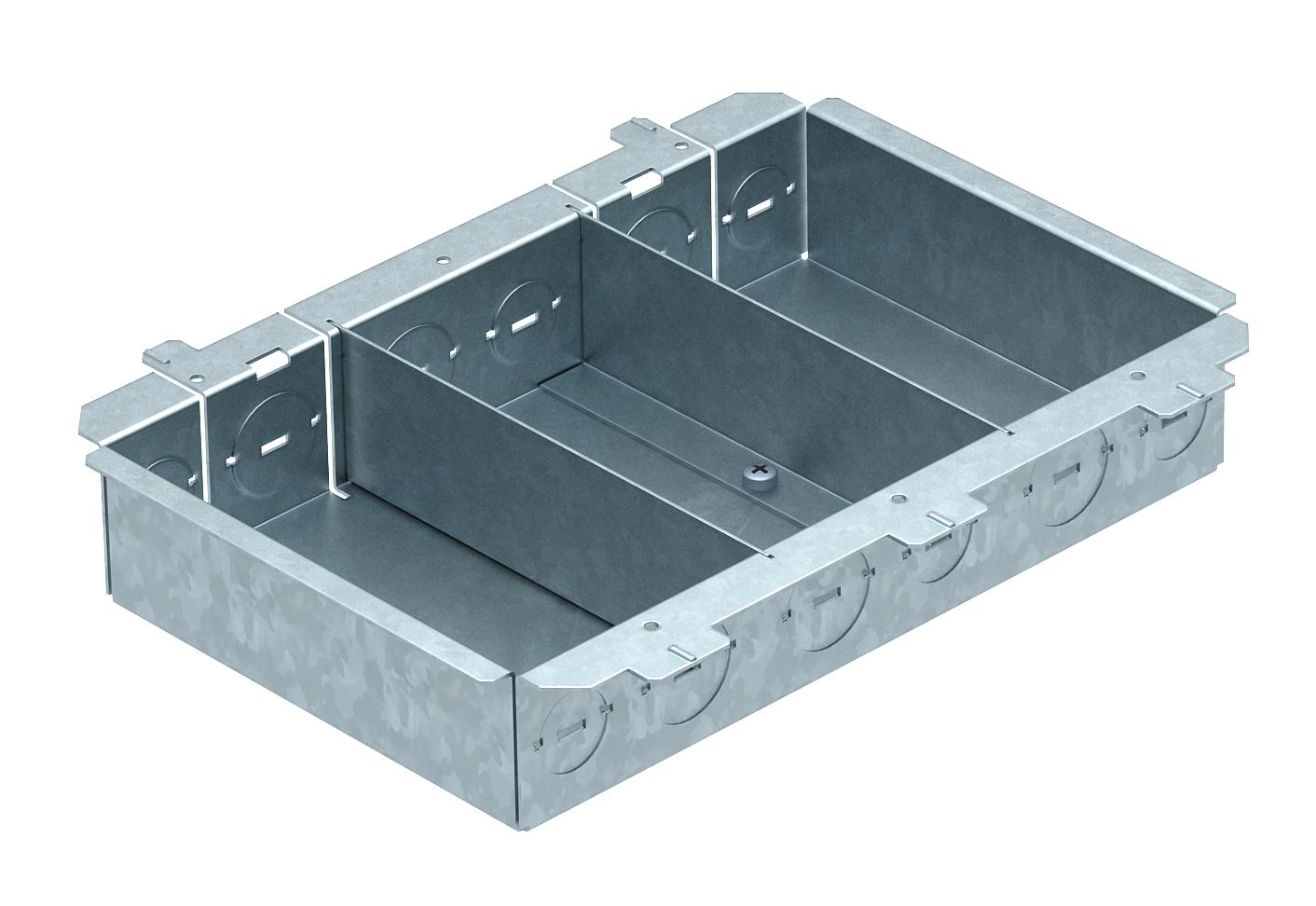

Enclosed mounting support for receiving 3 APMT2 cover plates. The mounting support is fastened below the GES6DB service outlet. Each with 6 knock-out openings M20 and M25 for the mounting of flexible installation hoses.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

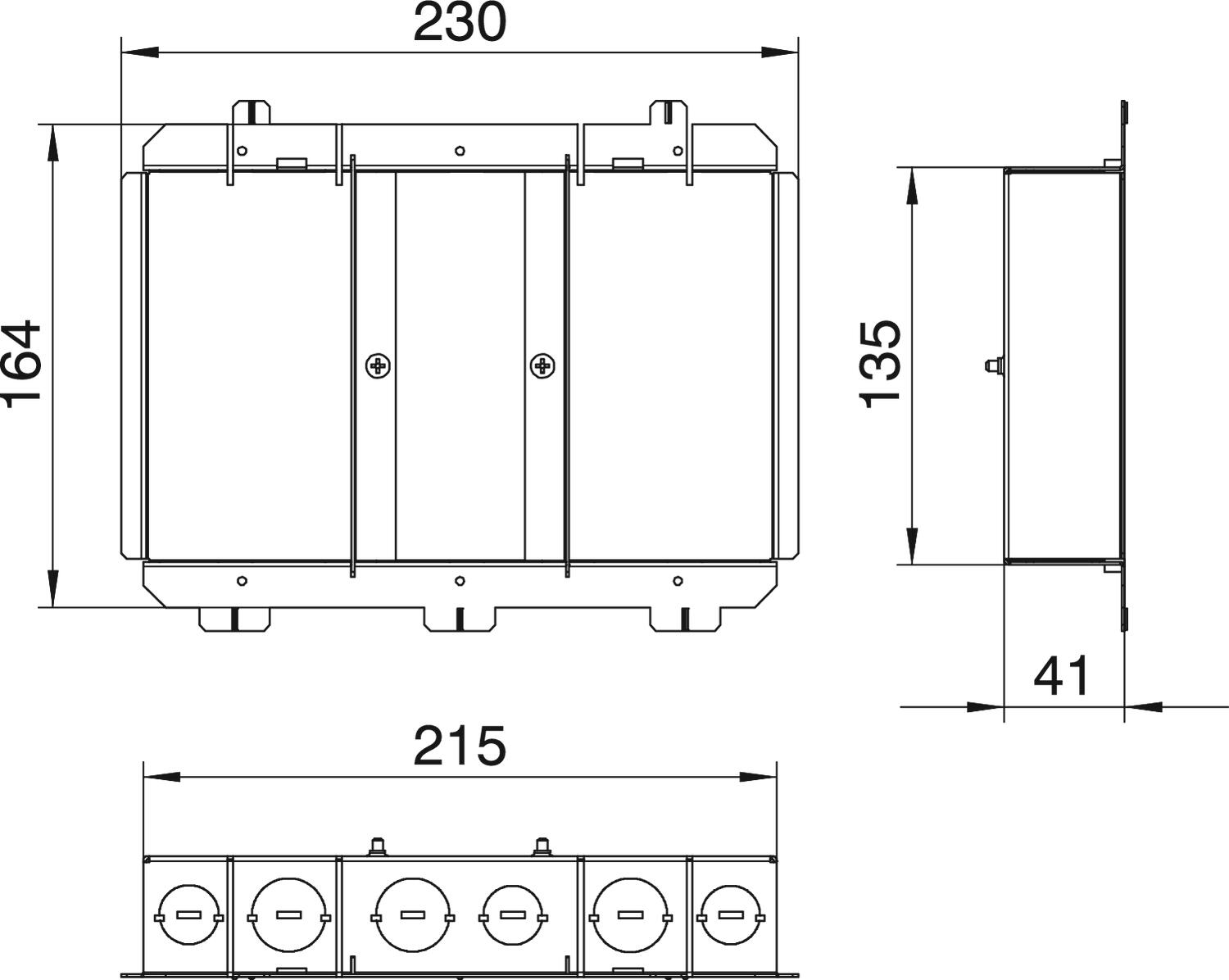

Dimension 234x164x41
Height 40 mm
Length 230 mm
Material Steel
Surface Strip galvanized
Width 164 mm
All types

All types

Types Item no. Quantity SSU
MT 6 DB AP2 7428230
4 piece
Downloads

Download

Download

No invitation to tender text is available for this product.
