Mounting support ‒ MT2 2ACO
Item no. 7407688 | EAN 4012195112730
- Product description
-
Product description

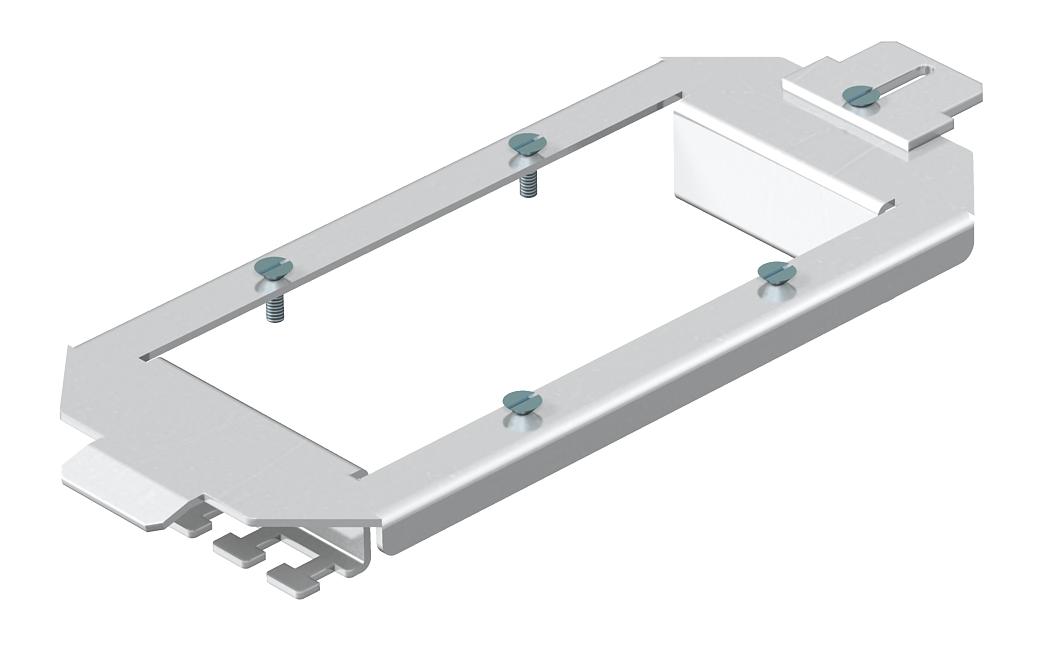

Mounting support for installation of two or three data modules of type ACO (only with Insta Kit UF 60 from AMP Tyco). Use instead of a GB2 or GB3 mounting box.
-
- Technical data
-
Technical data

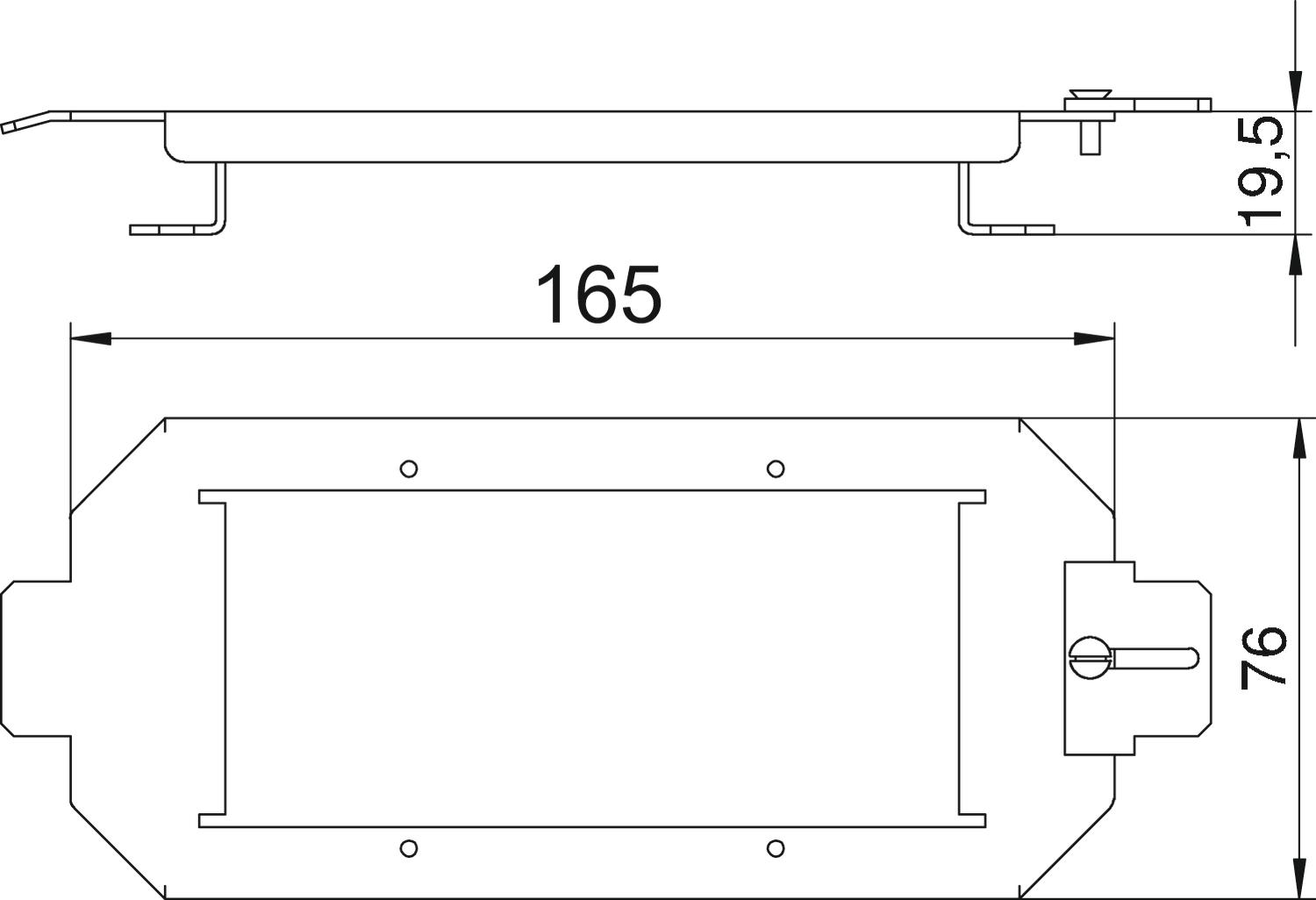

Connection options 2 data modules, type ACO Decouplable no Fastening type Lockable Floor covering protection frame no Floor plate no Heavy-duty version no Installation opening for on-floor tank no Labelling panel no Length 165 mm Lowerable to be flush-floor no Material Stainless steel Seal installation option no Strain relief option yes Suitable for cavity floor installation yes Suitable for raised floor installation yes Suitable for screed-covered underfloor ducts yes Suitable for screed-flush closed underfloor ducts yes Suitable for underfloor ducts yes With floor covering recess no - All types
- Downloads
-
Data sheet MT2 2ACO / 7407688 , 0.15MB , pdfLabel approval VDE symbol approval, GES , 0.12MB , pdfNo invitation to tender text is available for this product.
