Mounting support ‒ MT3 3ACO

Item no. 7407712 | EAN 4012195112839

Product description
Product description

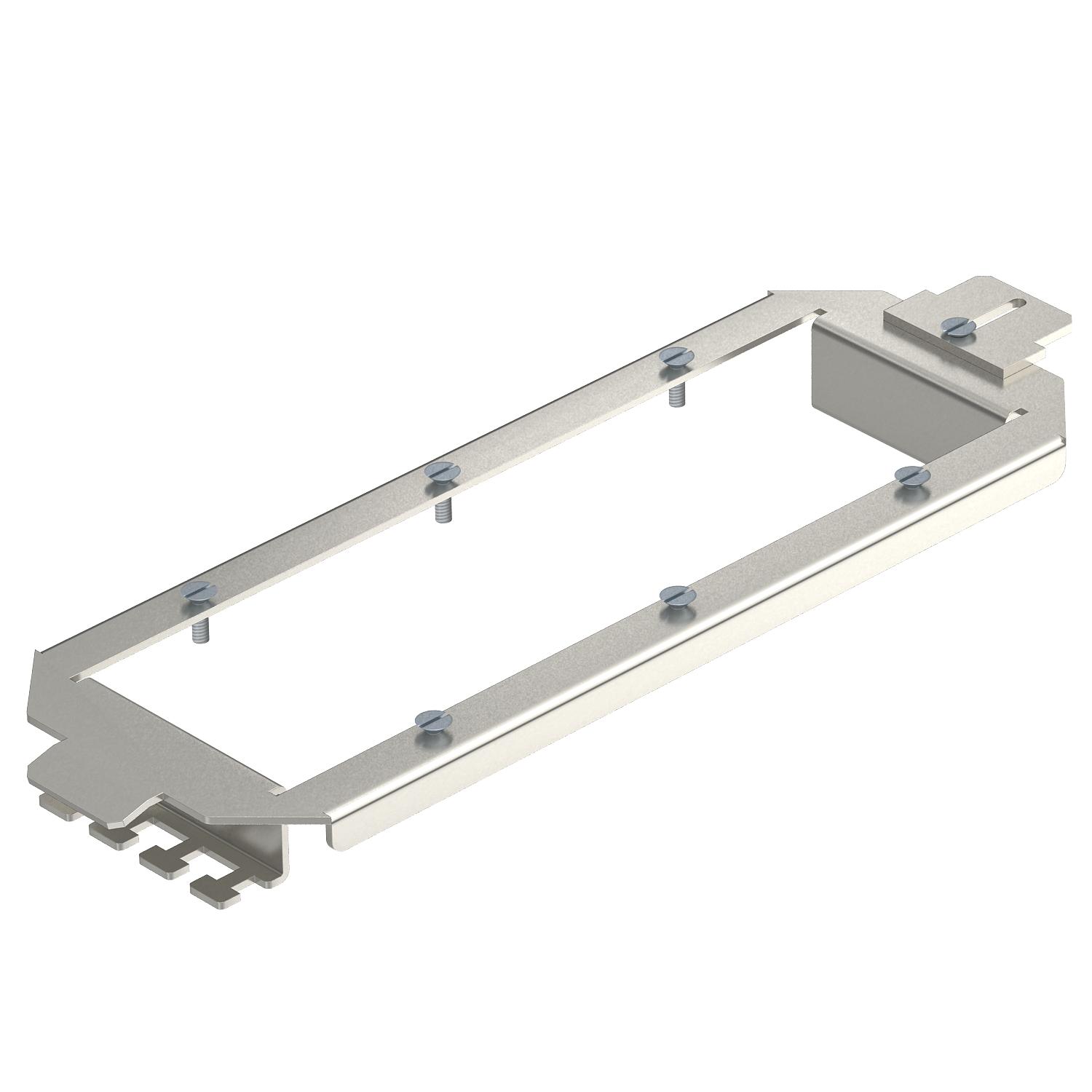

Mounting support for installation of two data modules of type ACO (only with Insta Kit UF 60 from AMP Tyco). Use instead of a GB2 mounting box.
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Connection options 3 data modules, type ACO
Decouplable no
Fastening type Lockable
Floor covering protection frame no
Floor plate no
Heavy-duty version no
Installation opening for on-floor tank no
Labelling panel no

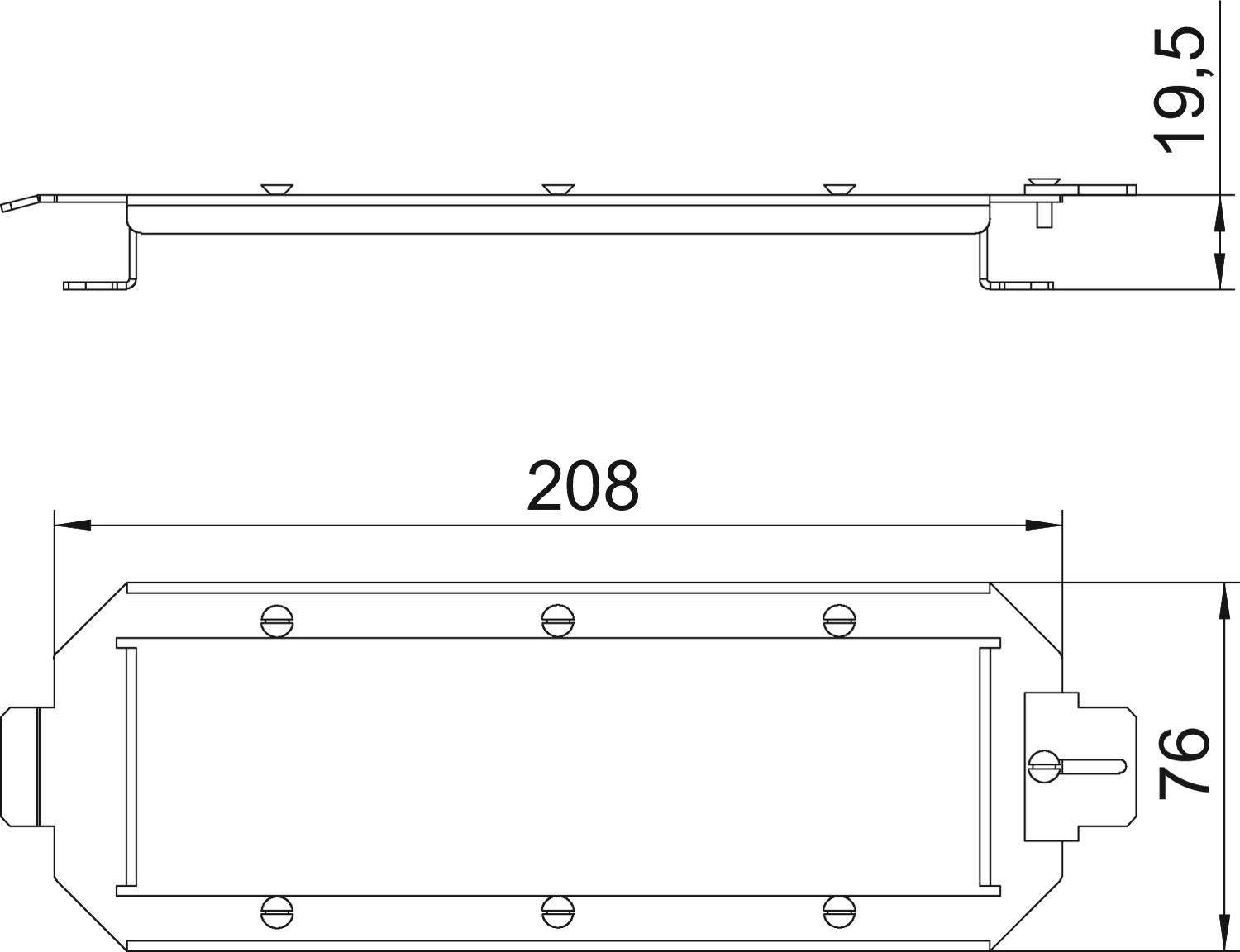

Length 208 mm
Lowerable to be flush-floor no
Material Stainless steel
Seal installation option no
Strain relief option yes
Suitable for cavity floor installation yes
Suitable for raised floor installation yes
Suitable for screed-covered underfloor ducts yes
Suitable for screed-flush closed underfloor ducts yes
Suitable for underfloor ducts yes
With floor covering recess no
All types

All types

Types Item no. Quantity SSU
MT3 3ACO 7407712
20 piece
Downloads

No invitation to tender text is available for this product.
