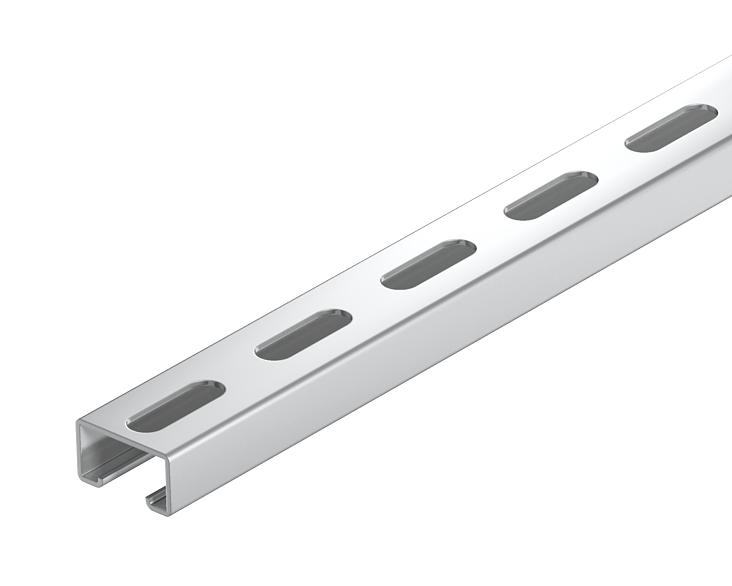

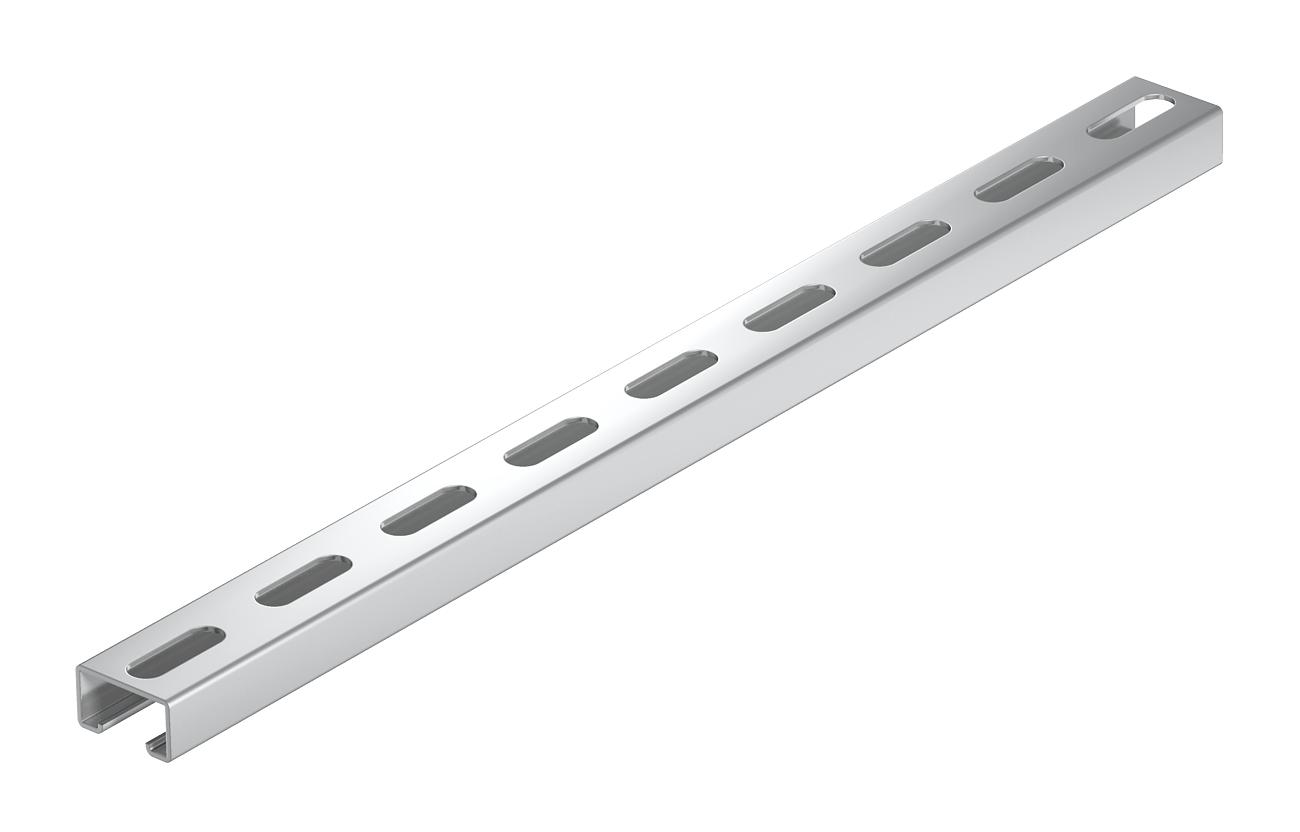

MS4022 mounting rail, heavy duty, slot 18 mm, A2, perforated

Item no. 1121960 | EAN 4012195050179

40 mm
22.5 mm
2 mm
Bright, treated
Product description

Product description

Heavy-duty C profile rail for individual installation of support constructions, e.g. for cable trays or as a panel for switchgear cabinets. Can also be used for cable routing, in conjunction with clamp clips with a U foot.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Slot width 18 mm
  • Clamp clip for C profile rail, slot width 18–22 mm
  • Bolt-firing tool
  • Nail device
Technical data

Technical data

Breakable no

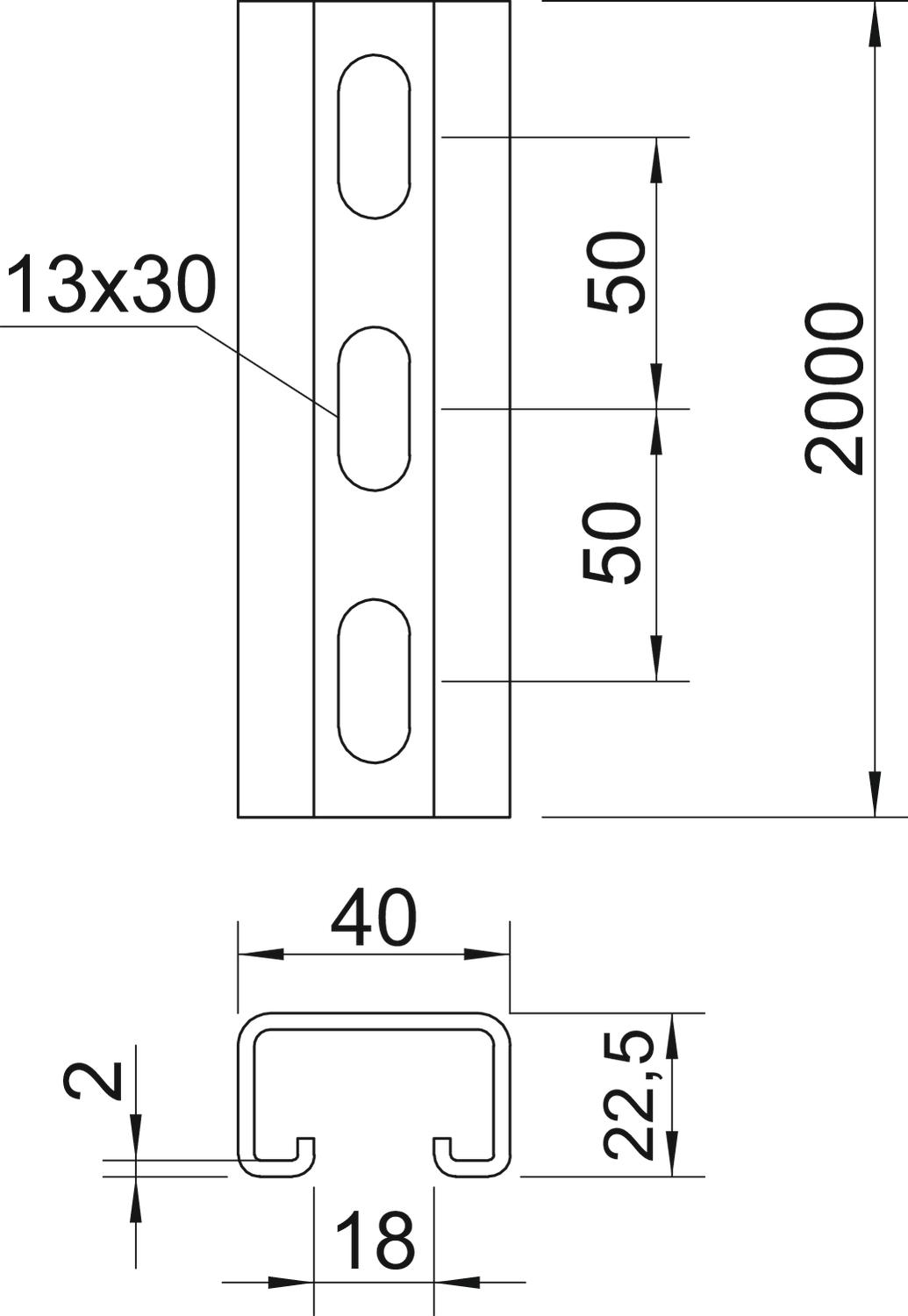

Dimension 2000x40x22,5
Dimension L 2000 mm
Drill hole spacing, centre 50 mm
Height 22,5 mm
Length 2000 mm
Maintain electrical functions no
Material Stainless steel
Material thickness 2 mm
Profile shape C profile
Slot width 18 mm
Static value A 1,74 cm²
Static value ly 1,18 cm
Static value lz 4,45 cm
Static value Wy 1,05 cm²
Static value Wz 2,23 cm²
Surface Bright, treated
Type of perforation Perforated back
Version for Single profile
Width 40 mm
With perforation yes
With toothing no
All types

All types

Types Length Width Height Material thickness Surface Item no. Quantity SSU
MS4022P6000A2 6000 mm 40 mm 22.5 mm 2 mm Bright, treated 1121901
6 m
MS4022P2000A2 2000 mm 40 mm 22.5 mm 2 mm Bright, treated 1121960
2 m
Accessories

Mounting accessories

Products Types Item no. Quantity SSU
Slide nut A4 Slide nut A4 MS40SN M10 A4 1147134
50 piece
Hook-head screw A4 Hook-head screw A4 MS40HB M10x30 A4 1148160
50 piece
Clamp clip, single, A2 plastic pressure trough Clamp clip, single, A2 plastic pressure trough 2056U 12 A2 1178504
50 piece
Clamp clip, single, A2 plastic pressure trough Clamp clip, single, A2 plastic pressure trough 2056U 22 A2 1178520
50 piece
Clamp clip, single, A2 plastic pressure trough Clamp clip, single, A2 plastic pressure trough 2056U 28 A2 1178539
50 piece
