MS4022 mounting rail, heavy duty, slot 18 mm, A2, perforated 6000 | 40 | 22.5 | 2 | Bright, treated

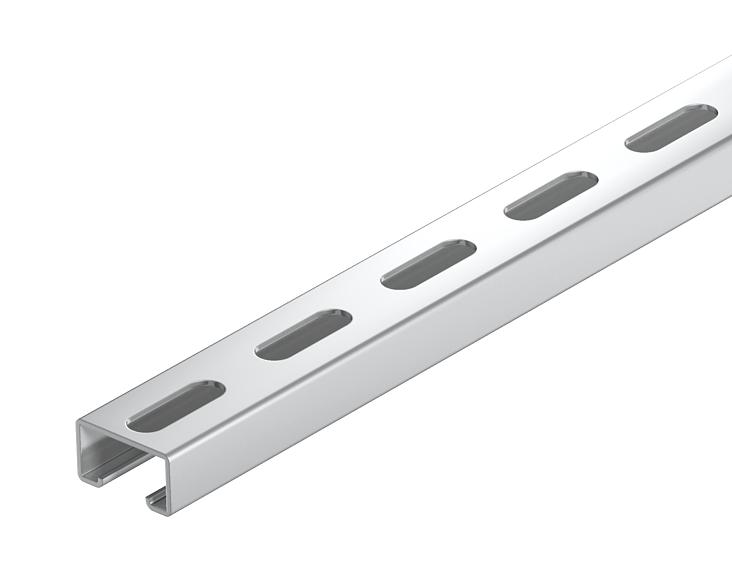

MS4022 mounting rail, heavy duty, slot 18 mm, A2, perforated

Item no. 1121901 | EAN 4012195049999

Item no. / Types

Length

Width	40 mm

Height	22.5 mm

Material thickness	2 mm

Surface	Bright, treated

Product description

Product description

Heavy-duty C profile rail for individual installation of support constructions, e.g. for cable trays or as a panel for switchgear cabinets. Can also be used for cable routing, in conjunction with clamp clips with a U foot.

Technical data

Technical data

Breakable	no

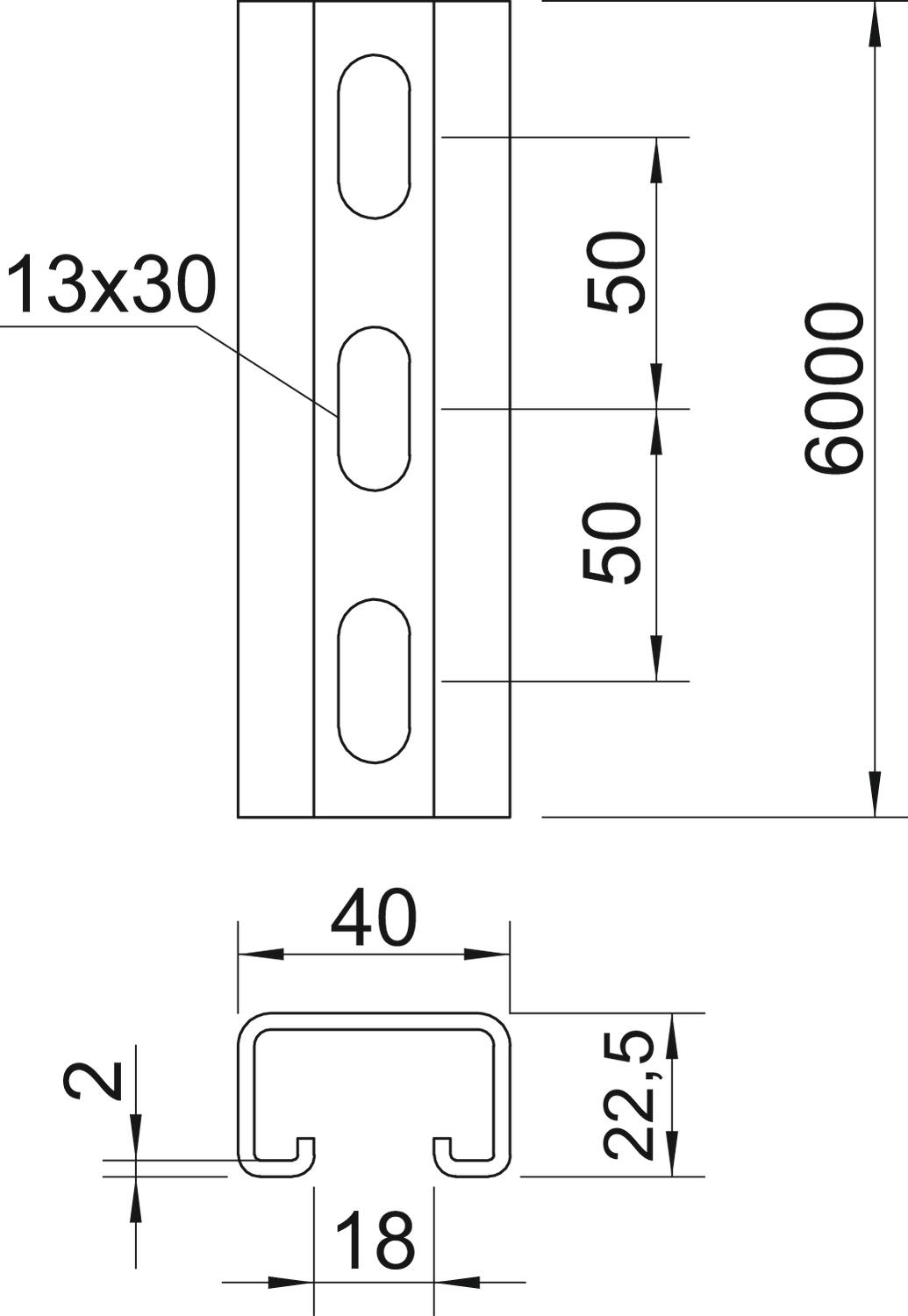

Dimension	6000x40x22,5
Drill hole spacing, centre	50 mm
Maintain electrical functions	no
Material	Stainless steel
Material thickness	2 mm
Profile shape	C profile
Slot width	18 mm
Static value A	1,74 cm²

Static value ly	1,18 cm
Static value lz	4,45 cm
Static value Wy	1,05 cm²
Static value Wz	2,23 cm²
Surface	Bright, treated
Type of perforation	Perforated back
Version for	Single profile
With perforation	yes
With toothing	no

Dimensions

Dimension L	6000 mm
Height	22,5 mm

Length	6000 mm
Width	40 mm

All types

All types

Types	Length	Width	Height	Material thickness	Surface	Item no.	Quantity	SSU
MS4022P6000A2	6000 mm	40 mm	22.5 mm	2 mm	Bright, treated	1121901	m	6 m

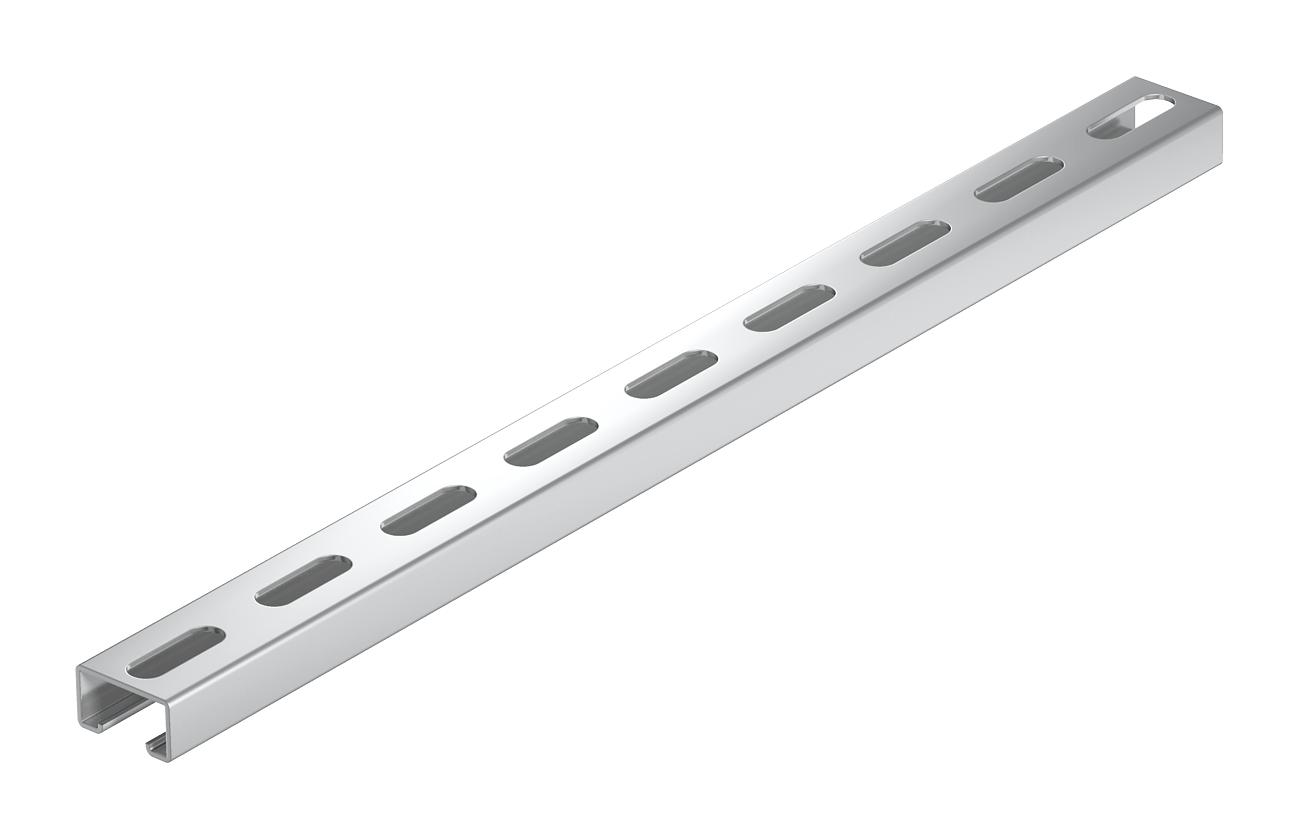

MS4022P2000A2	2000 mm	40 mm	22.5 mm	2 mm	Bright, treated	1121960	m	2 m

Accessories

Mounting accessories

Products	Types	Item no.	Quantity	SSU
Slide nut A4	MS40SN M10 A4	1147134	piece	50 piece
Hook-head screw A4	MS40HB M10x30 A4	1148160	piece	50 piece
Clamp clip, single, A2 plastic pressure trough	2056U 12 A2	1178504	piece	50 piece
Clamp clip, single, A2 plastic pressure trough	2056U 22 A2	1178520	piece	50 piece
Clamp clip, single, A2 plastic pressure trough	2056U 28 A2	1178539	piece	50 piece
