MS4022 mounting rail, heavy duty, slot 18 mm, FT, perforated 6000 | 40 | 22.5 | 2 | Hot-dip galvanised

MS4022 mounting rail, heavy duty, slot 18 mm, FT, perforated

Item no. 1121898 | EAN 4012195049937

Item no. / Types

Length

Width	40 mm

Height	22.5 mm

Material thickness	2 mm

Surface	Hot-dip galvanised

Product description

Product description

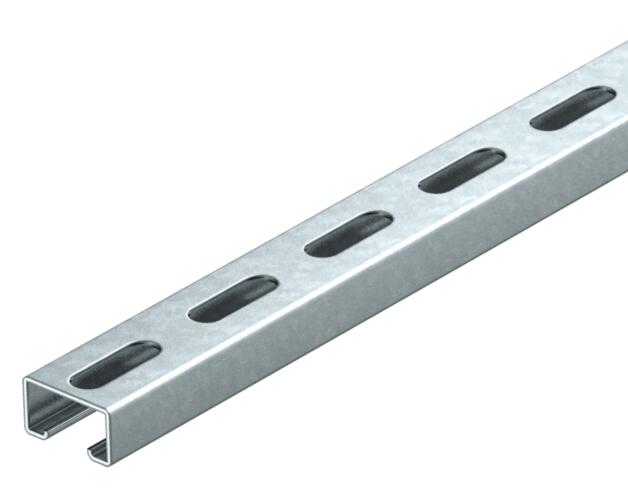

Heavy-duty C profile rail for individual installation of support constructions, e.g. for cable trays or as a panel for switchgear cabinets. Can also be used for cable routing, in conjunction with clamp clips with a U foot.

Technical data

Technical data

Breakable	no
CO₂ Footprint (GWP) Cradle-to-Gate	3,387 kg CO₂e / 1 Meter

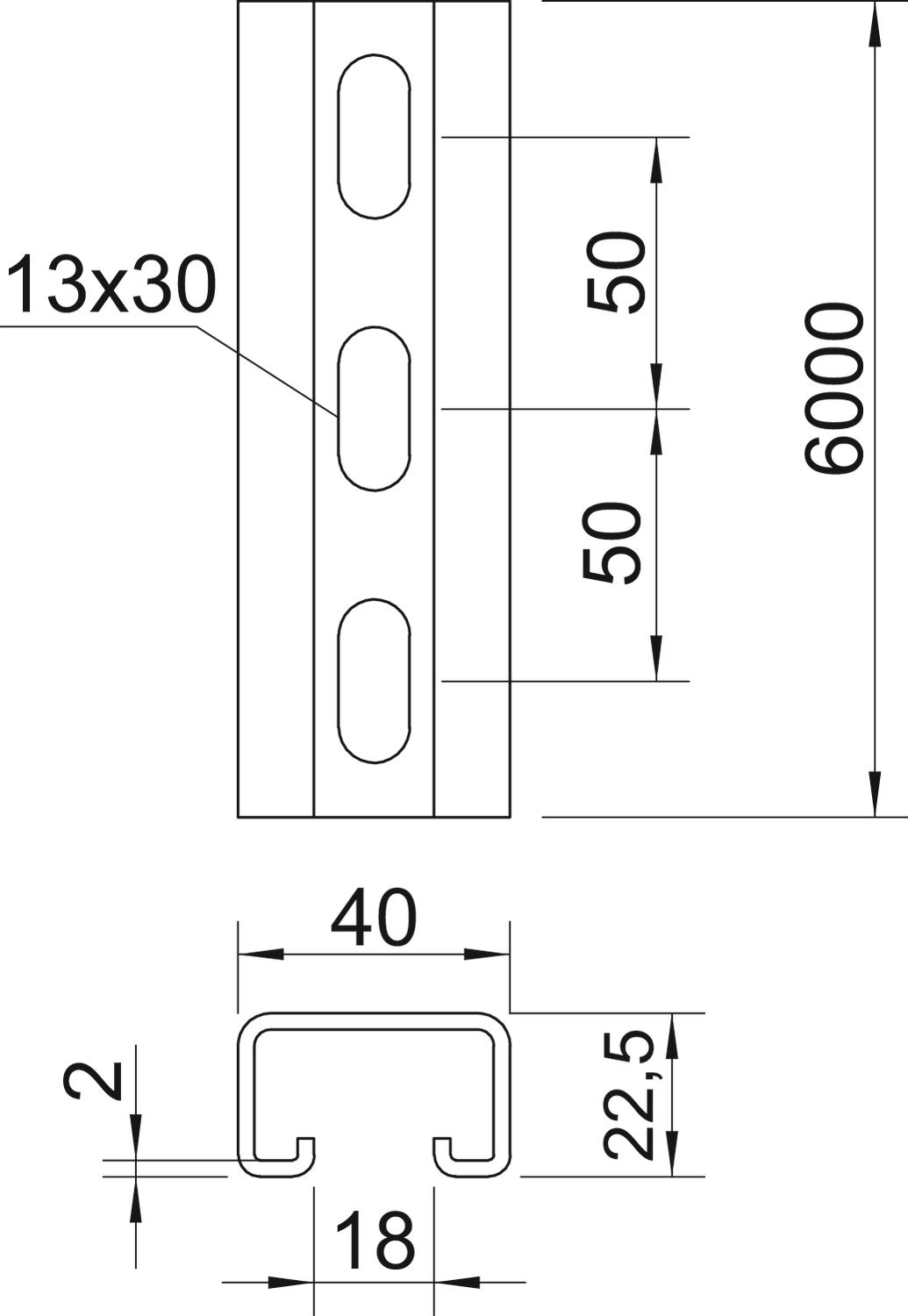

Dimension	6000x40x22,5
Dimension L	6000 mm
Drill hole spacing, centre	50 mm
Height	22,5 mm
Length	6000 mm
Maintain electrical functions	no
Material	Steel
Material thickness	2 mm
Profile shape	C profile
Slot width	18 mm

Static value A	1,74 cm²
Static value ly	1,18 cm
Static value lz	4,45 cm
Static value Wy	1,05 cm²
Static value Wz	2,23 cm²
Surface	Hot-dip galvanised
Type of perforation	Perforated back
Version for	Single profile
Width	40 mm
With perforation	yes
With toothing	no

All types

All types

Types	Length	Width	Height	Material thickness	Surface	Item no.	Quantity	SSU
MS4022P6000FT	6000 mm	40 mm	22.5 mm	2 mm	Hot-dip galvanised	1121898	m	6 m
MS4022P2000FT	2000 mm	40 mm	22.5 mm	2 mm	Hot-dip galvanised	1121979	m	2 m

Accessories

Mounting accessories

Products	Types	Item no.	Quantity	SSU
Slide nut ZL	MS40SN M10 ZL	1147114	piece	50 piece
Hook-head screw ZL	MS40HB M10x30 ZL	1148118	piece	50 piece
Clamp clip, single, FT plastic pressure trough	2056U 22 FT	1175211	piece	100 piece
Clamp clip, single, FT plastic pressure trough	2056U 28 FT	1175289	piece	100 piece
