MS4121 mounting rail, slot 22 mm, double, FT, perforated 3000 | 41 | 42 | 2 | Hot-dip galvanised

MS4121 mounting rail, slot 22 mm, double, FT, perforated

Item no. 1122944 | EAN 4012195697794

Item no. / Types

Length

Width	41 mm

Height	42 mm

Material thickness	2 mm

Surface	Hot-dip galvanised

Product description

Product description

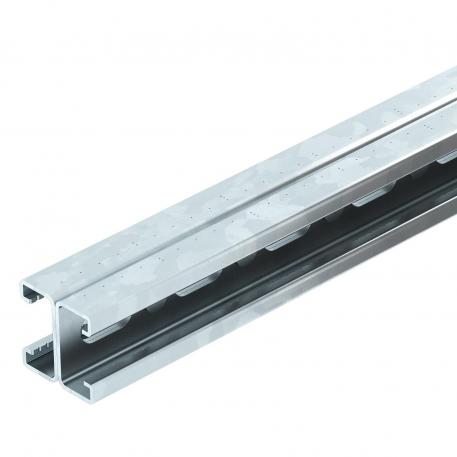

Heavy-duty profile/mounting rail with continuous perforation in base, slot width 22 mm. Double version, i.e. two profile rails are interconnected on the base (clinched).

Technical data

Technical data

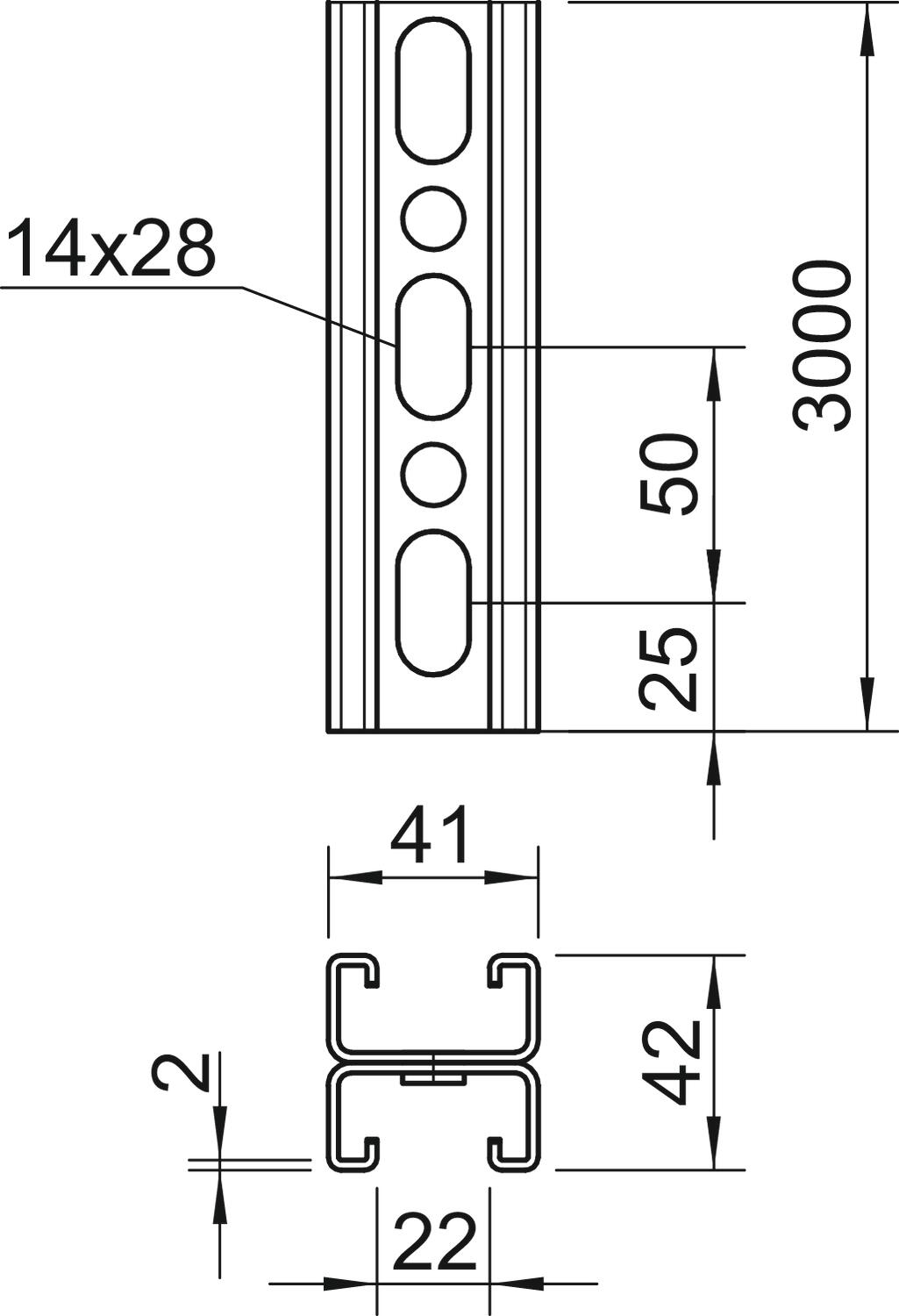

Dimension	3000x41x42
Dimension L	3000 mm
Height	42 mm
Hole size	14x28 mm
Length	3000 mm
Maintain electrical functions	no
Material	Steel
Material thickness	2 mm
Profile shape	C profile
Slot width	22 mm

Static value A	3,3 cm²
Static value ly	5,38 cm
Static value lz	9,02 cm
Static value Wy	1,28 cm²
Static value Wz	0,25 cm²
Surface	Hot-dip galvanised
Type of perforation	Perforated bar
Version for	Double profile
Width	41 mm
With toothing	yes

All types

All types

Types	Length	Width	Height	Material thickness	Surface	Item no.	Quantity	SSU
MS4142P3000FT	3000 mm	41 mm	42 mm	2 mm	Hot-dip galvanised	1122944	m	3 m
MS4142P6000FT	6000 mm	41 mm	42 mm	2 mm	Hot-dip galvanised	1122945	m	6 m

Accessories

System accessories

Products	Types	Item no.	Quantity	SSU

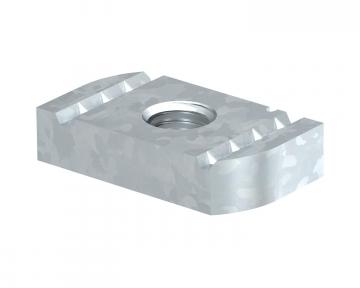

Slide nut ZL	MS41SN M10 ZL	1147214	piece	50 piece

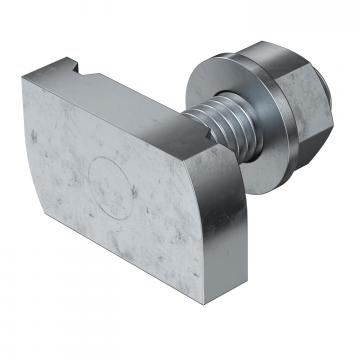

Hammer-head bolt ZL	MS41HB M10x30 ZL	1148322	piece	50 piece

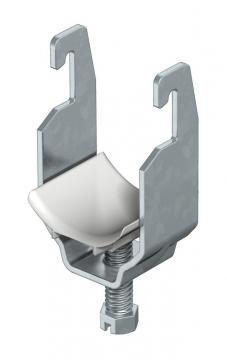

Clamp clip, single, FT plastic pressure trough	2056U 22 FT	1175211	piece	100 piece
Clamp clip, single, FT plastic pressure trough	2056U 28 FT	1175289	piece	100 piece
