MS4121 mounting rail, slot 22 mm, FS, perforated 2000 | 41 | 21 | 2 | Strip galvanized

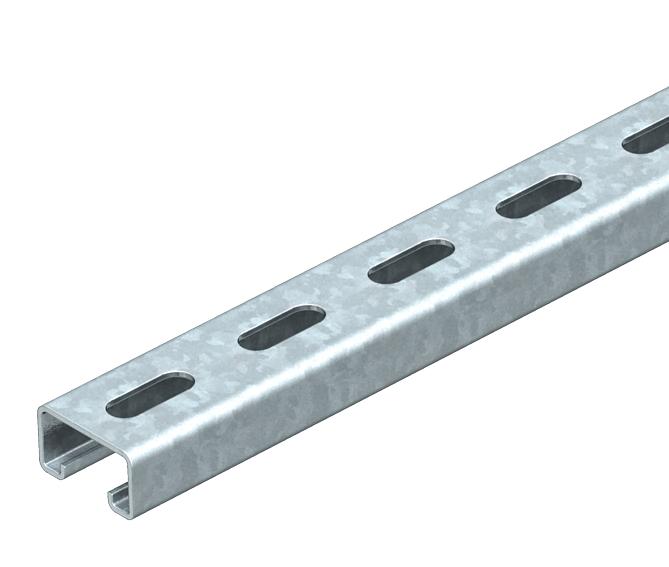

MS4121 mounting rail, slot 22 mm, FS, perforated

Item no. 1122918 | EAN 4012195686262

Item no. / Types

Length

Width	41 mm

Height	21 mm

Material thickness	2 mm

Surface	Strip galvanized

Product description

Product description

Heavy-duty C profile rail for individual installation of support constructions, e.g. for cable trays or as a panel for switchgear cabinets. Can also be used for cable routing, in conjunction with clamp clips with a U foot.

Technical data

Technical data

Breakable	no

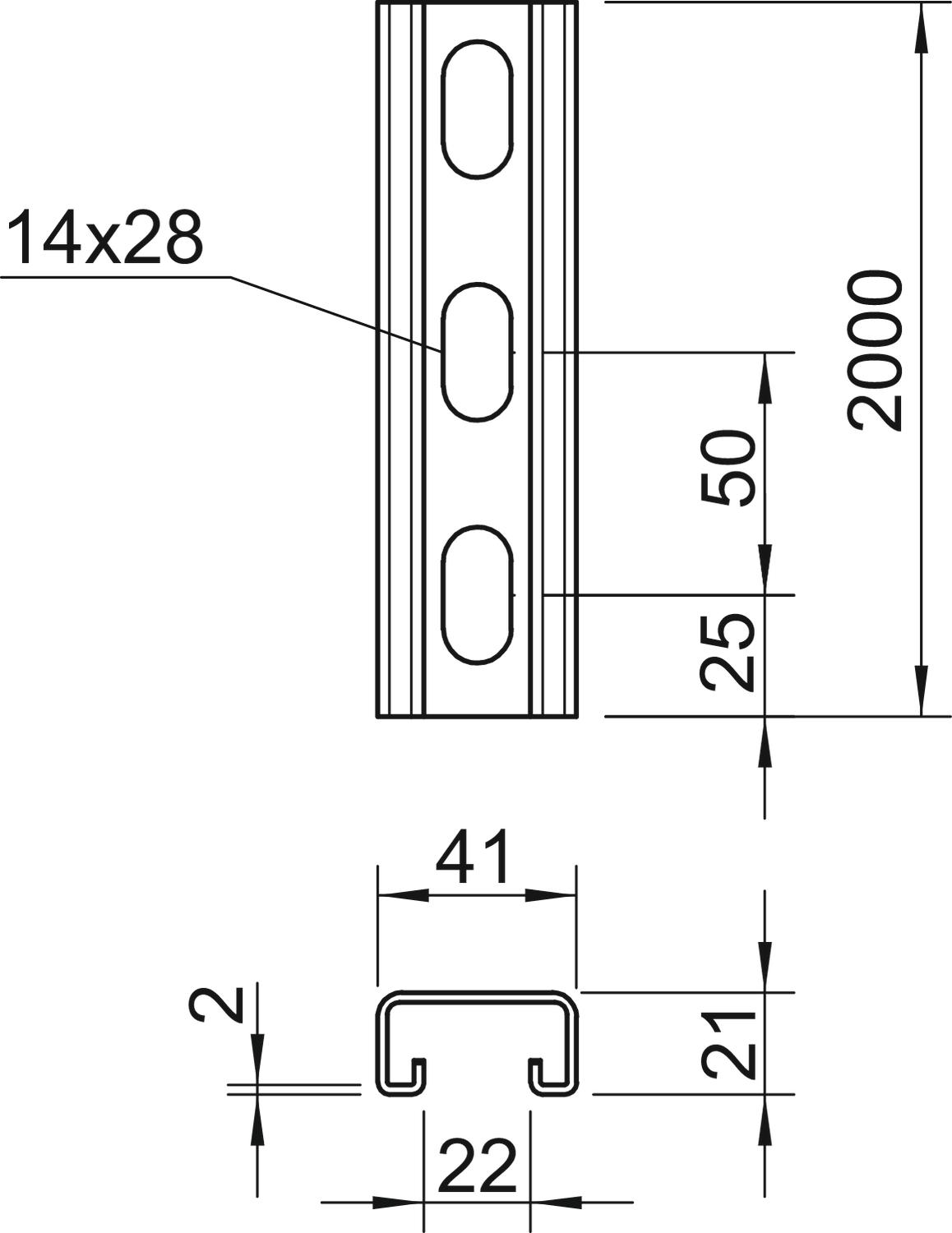

Dimension	2000x41x21
Dimension L	2000 mm
Drill hole spacing, centre	50 mm
Height	21 mm
Hole size	14x28 mm
Length	2000 mm
Maintain electrical functions	yes
Material	Steel
Material thickness	2 mm
Profile shape	C profile
Slot width	22 mm

Static value A	1,65 cm²
Static value ly	0,95 cm
Static value lz	4,51 cm
Static value Wy	0,89 cm²
Static value Wz	2,2 cm²
Surface	Strip galvanized
Type of perforation	Perforated back
Version for	Single profile
Width	41 mm
With perforation	yes
With toothing	yes

All types

All types

Types	Length	Width	Height	Material thickness	Surface	Item no.	Quantity	SSU
MS4121P2000FS	2000 mm	41 mm	21 mm	2 mm	Strip galvanized	1122918	m	2 m
MS4121P3000FS	3000 mm	41 mm	21 mm	2 mm	Strip galvanized	1122920	m	3 m
MS4121P6000FS	6000 mm	41 mm	21 mm	2 mm	Strip galvanized	1122922	m	6 m

Accessories

System accessories

Products	Types	Item no.	Quantity	SSU
Slide nut ZL	MS41SN M10 ZL	1147214	piece	50 piece
Hammer-head bolt ZL	MS41HB M10x30 ZL	1148322	piece	50 piece
Clamp clip, single, FT plastic pressure trough	2056U 22 FT	1175211	piece	100 piece
Clamp clip, single, FT plastic pressure trough	2056U 28 FT	1175289	piece	100 piece
