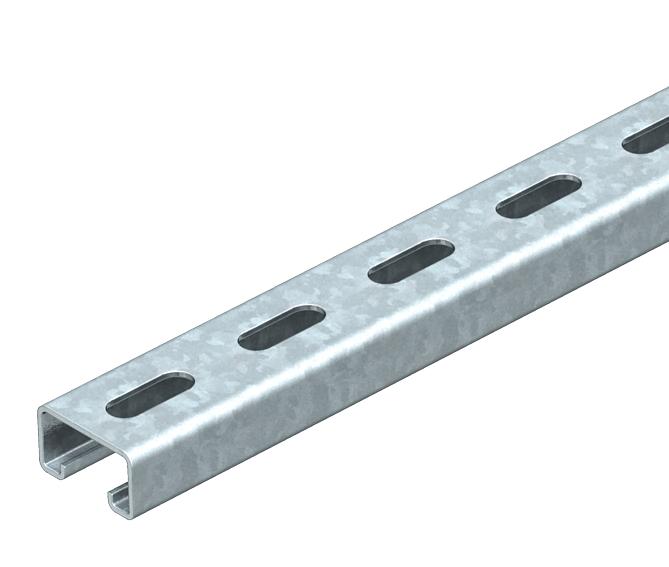

MS4121 mounting rail, slot 22 mm, FS, perforated

Item no. 1122955 | EAN 4012196471164

41 mm
21 mm
2 mm
Strip galvanized
Product description
Product description
Heavy-duty C profile rail for individual installation of support constructions, e.g. for cable trays or as a panel for switchgear cabinets. Can also be used for cable routing, in conjunction with clamp clips with a U foot.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Slot width 22 mm
  • Clamp clip for C profile rail, slot width 18–22 mm
  • Function maintenance class E30
  • Function maintenance class E90
Technical data

Technical data

Breakable no
CO₂ Footprint (GWP) Cradle-to-Gate 1,7968 kg CO₂e / 1 Piece

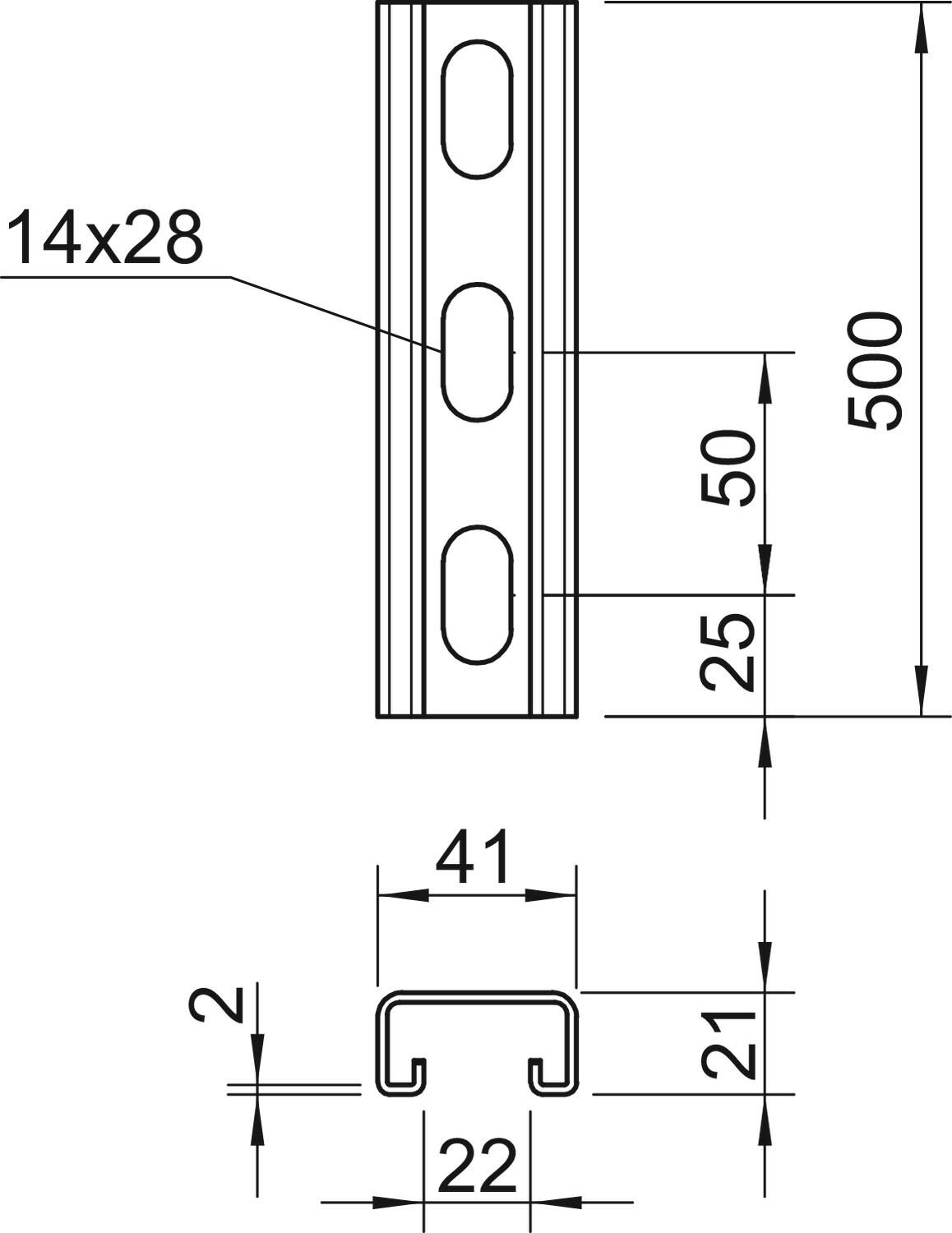

Dimension 500x41x21
Dimension L 500 mm
Drill hole spacing, centre 50 mm
Height 21 mm
Length 500 mm
Maintain electrical functions yes
Material Steel
Material thickness 2 mm
Profile shape C profile
Slot width 22 mm
Static value A 1,65 cm²
Static value ly 0,95 cm
Static value lz 4,51 cm
Static value Wy 0,89 cm²
Static value Wz 2,2 cm²
Surface Strip galvanized
Type of perforation Perforated back
Version for Single profile
Width 41 mm
With perforation yes
With toothing yes
All types

All types

Types Length Width Height Material thickness Surface Item no. Quantity SSU
MS4121P0200FS 200 mm 41 mm 21 mm 2 mm Strip galvanized 1122950
1 piece
MS4121P0300FS 300 mm 41 mm 21 mm 2 mm Strip galvanized 1122951
1 piece
MS4121P0400FS 400 mm 41 mm 21 mm 2 mm Strip galvanized 1122953
1 piece
MS4121P0500FS 500 mm 41 mm 21 mm 2 mm Strip galvanized 1122955
1 piece
MS4121P0600FS 600 mm 41 mm 21 mm 2 mm Strip galvanized 1122956
1 piece
MS4121P0800FS 800 mm 41 mm 21 mm 2 mm Strip galvanized 1122957
1 piece
MS4121P0700FS 700 mm 41 mm 21 mm 2 mm Strip galvanized 1122958
1 piece
MS4121P0900FS 900 mm 41 mm 21 mm 2 mm Strip galvanized 1122959
1 piece
Accessories

System accessories

Products Types Item no. Quantity SSU
Slide nut ZL Slide nut ZL MS41SN M10 ZL 1147214
50 piece
Hammer-head bolt ZL Hammer-head bolt ZL MS41HB M10x30 ZL 1148322
50 piece
Clamp clip, single, FT plastic pressure trough Clamp clip, single, FT plastic pressure trough 2056U 22 FT 1175211
100 piece
Clamp clip, single, FT plastic pressure trough Clamp clip, single, FT plastic pressure trough 2056U 28 FT 1175289
100 piece
