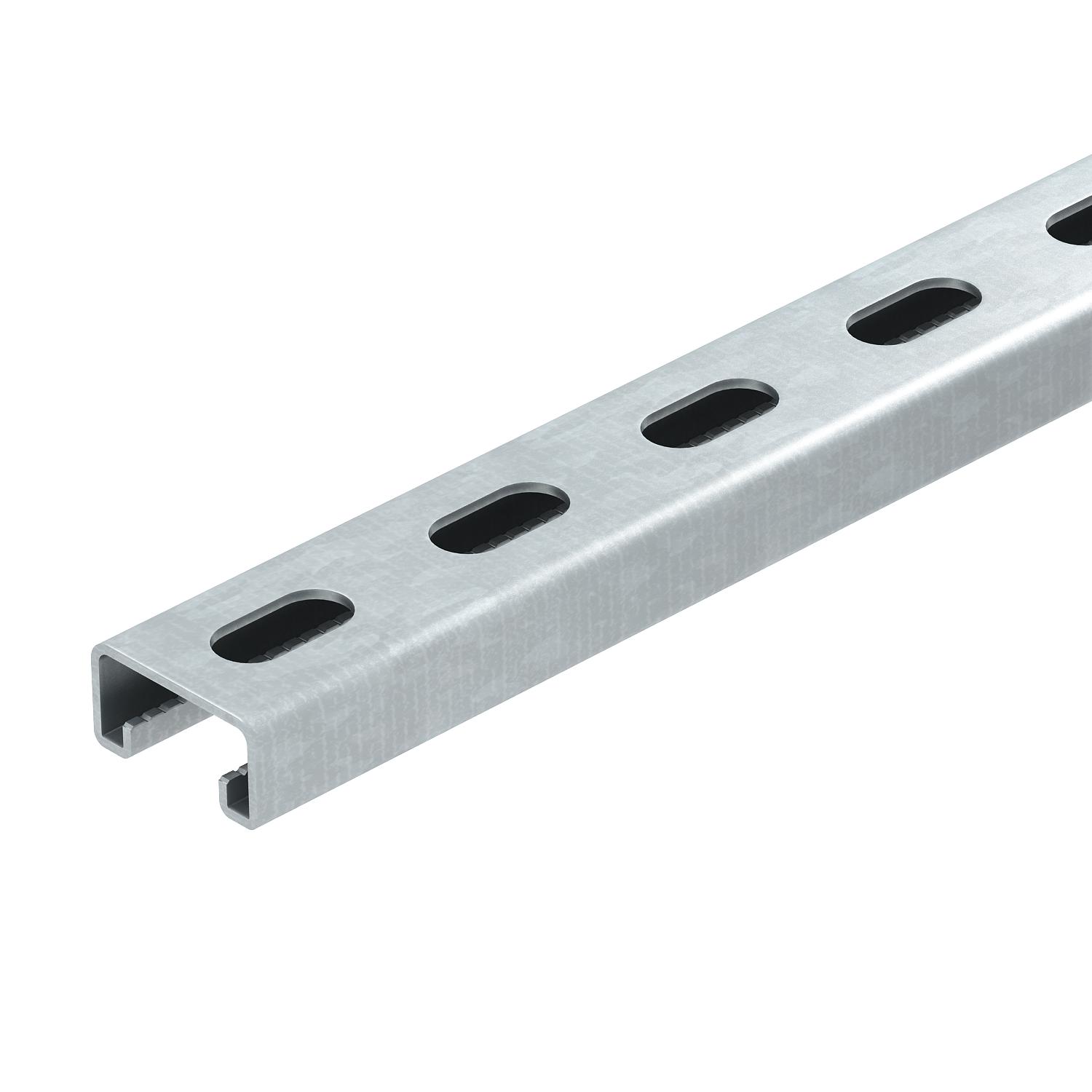

MS4121 mounting rail, slot 22 mm, FT, perforated
Item no. 1122926 | EAN 4012195686309
- Product description
-
Product descriptionHeavy-duty C profile rail for individual installation of support constructions, e.g. for cable trays or as a panel for switchgear cabinets. Can also be used for cable routing, in conjunction with clamp clips with a U foot.
-
- Technical data
-
Technical data

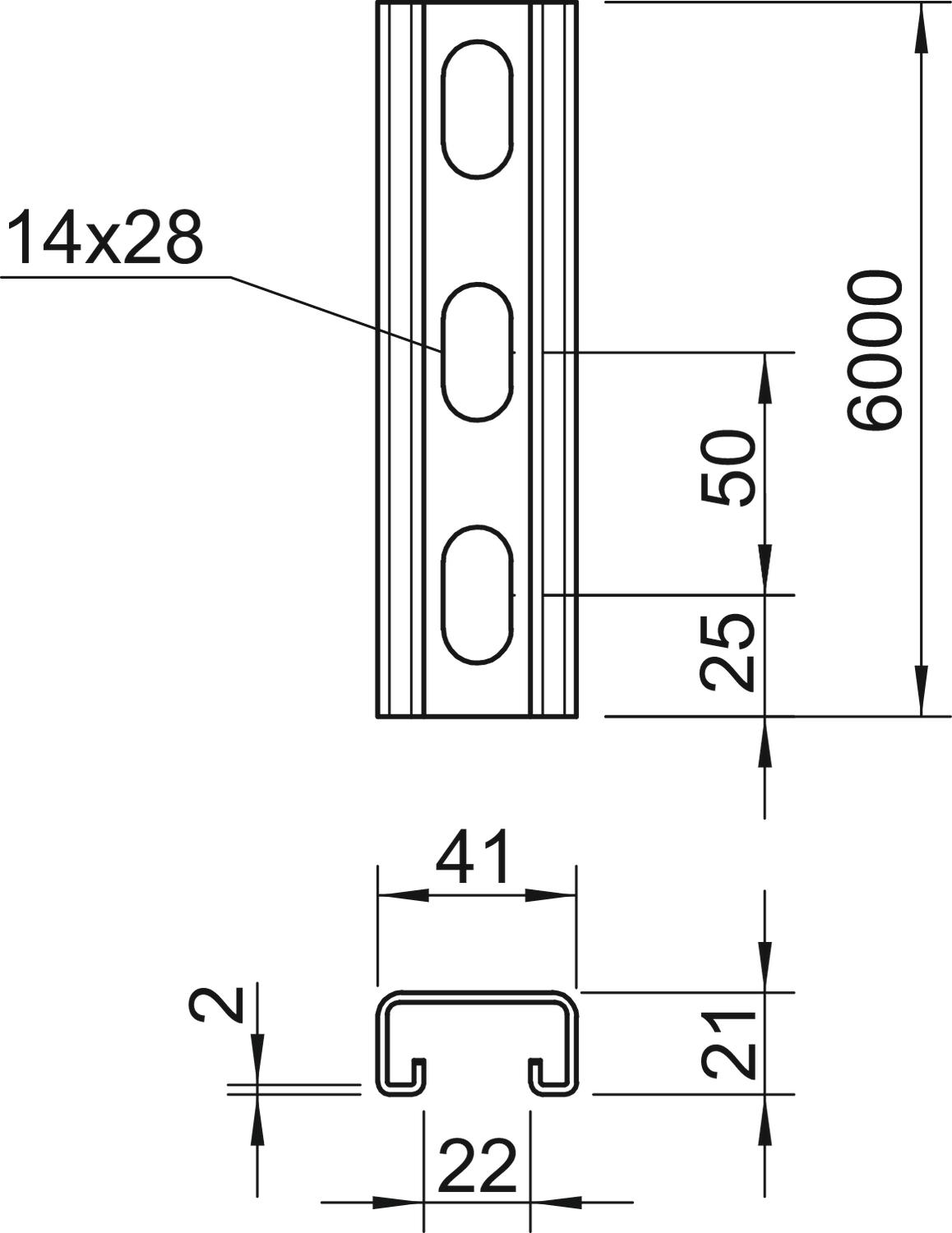

Breakable no CO₂ Footprint (GWP) Cradle-to-Gate 3,264 kg CO₂e / 1 Meter Dimension 6000x41x21 Dimension L 6000 mm Drill hole spacing, centre 50 mm Height 21 mm Hole size 14x28 mm Length 6000 mm Maintain electrical functions yes Material Steel Material thickness 2 mm Profile shape C profile Slot width 22 mm Static value A 1,65 cm² Static value ly 0,95 cm Static value lz 4,51 cm Static value Wy 0,89 cm² Static value Wz 2,2 cm² Surface Hot-dip galvanised Type of perforation Perforated back Version for Single profile Width 41 mm With perforation yes With toothing yes - All types
-
System accessories
Products Types Item no. Quantity SSU
Slide nut ZL
MS41SN M10 ZL 1147214 50 piece
Hammer-head bolt ZL
MS41HB M10x30 ZL 1148322 50 piece
Clamp clip, single, FT plastic pressure trough
2056U 22 FT 1175211 100 piece
Clamp clip, single, FT plastic pressure trough
2056U 28 FT 1175289 100 piece - Downloads
-
