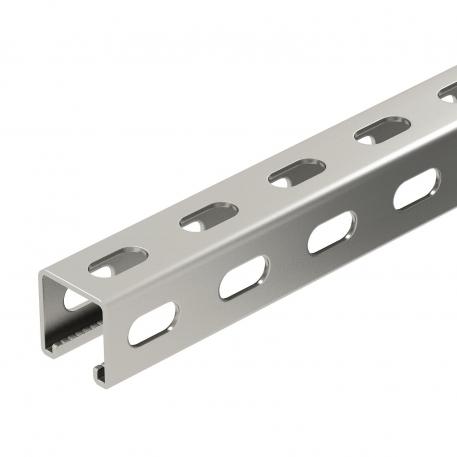

MS4141 mounting rail, slot 22 mm, A2, side perforation 6000 | 41 | 41 | 2 | Bright, treated

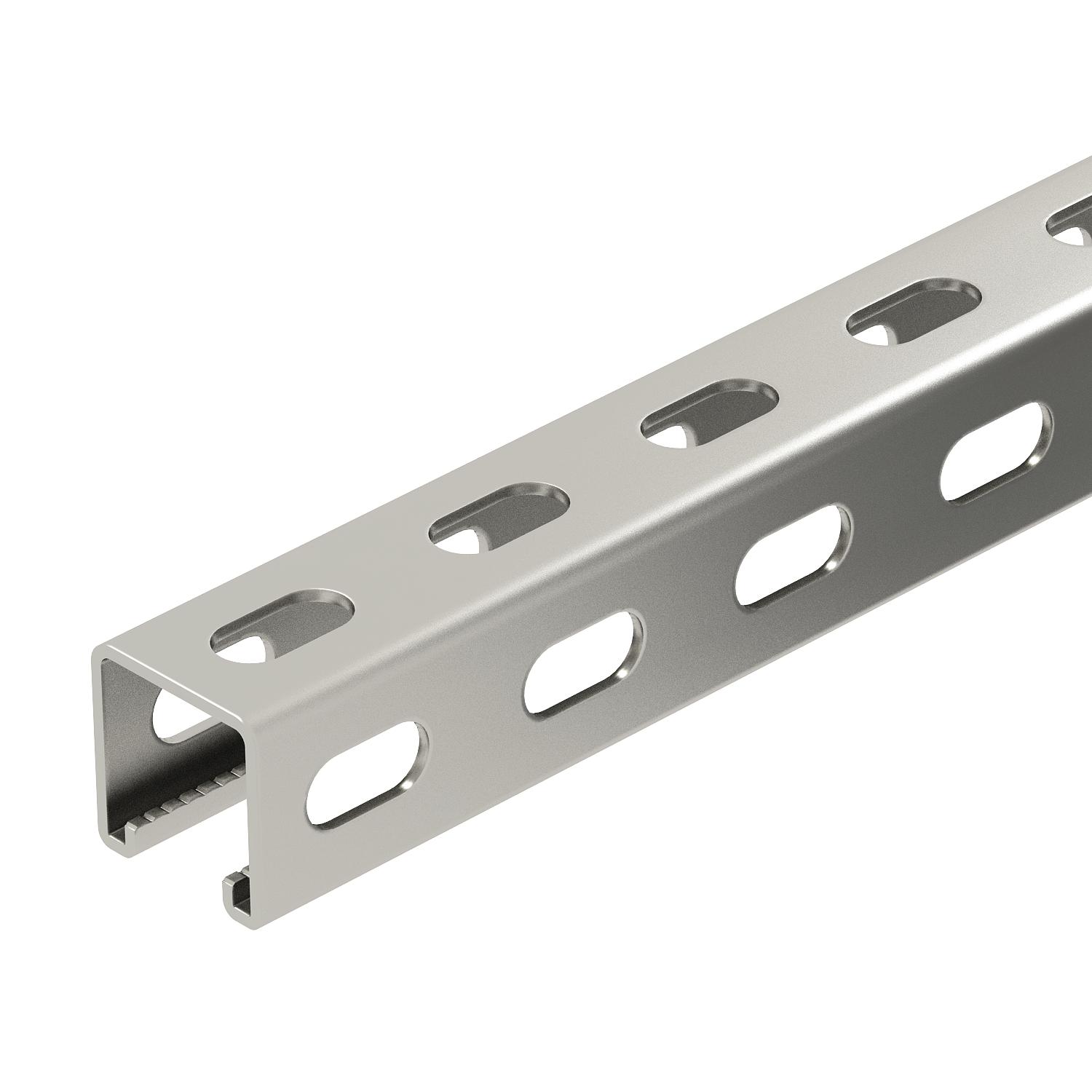

MS4141 mounting rail, slot 22 mm, A2, side perforation

Item no. 1123018 | EAN 4012195698388

Item no. / Types

Length

Width	41 mm

Height	41 mm

Material thickness	2 mm

Surface	Bright, treated

Product description

Product description

Heavy-duty C profile rail for individual installation of support constructions, e.g. for cable trays or as a panel for switchgear cabinets. Can also be used for cable routing, in conjunction with clamp clips with a U foot.

Technical data

Technical data

Breakable	no
Dimension	6000x41x41
Drill hole spacing, centre	50 mm
Hole size	14x28 mm
Maintain electrical functions	no
Material	Stainless steel
Material thickness	2 mm
Profile shape	C profile
Slot width	22 mm
Static value A	2,01 cm²

Static value ly	5,13 cm
Static value lz	5,88 cm
Static value Wy	2,51 cm²
Static value Wz	2,69 cm²
Surface	Bright, treated
Type of perforation	3 sides perforated
Version for	Single profile
With perforation	yes
With toothing	yes

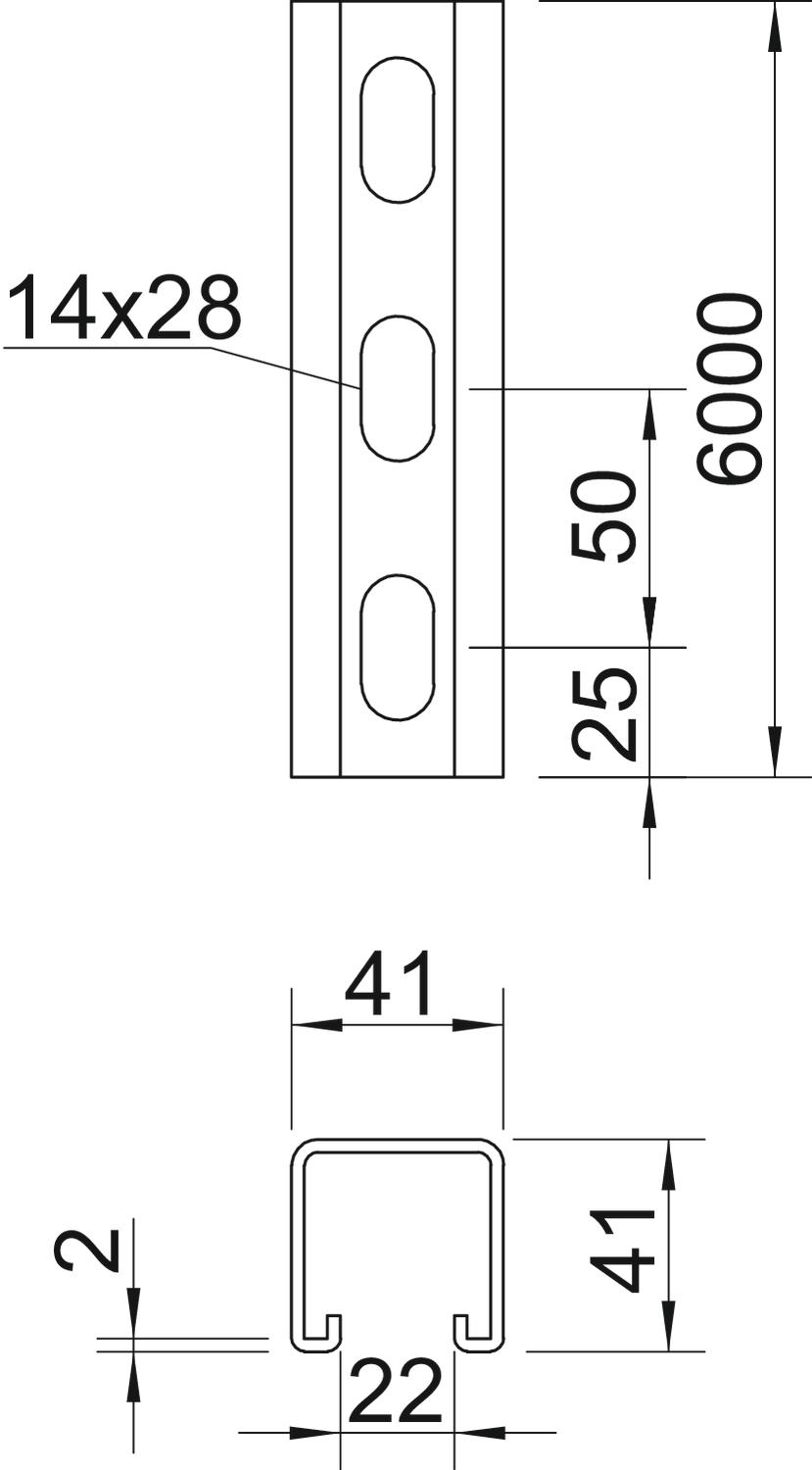

Dimensions

Dimension L	6000 mm
Height	41 mm

Length	6000 mm
Width	41 mm

All types

All types

Types	Length	Width	Height	Material thickness	Surface	Item no.	Quantity	SSU
MSL4141PP1000A2	1000 mm	41 mm	41 mm	2 mm	Bright, treated	1123014	m	1 m
MSL4141PP3000A2	3000 mm	41 mm	41 mm	2 mm	Bright, treated	1123016	m	3 m
MSL4141PP6000A2	6000 mm	41 mm	41 mm	2 mm	Bright, treated	1123018	m	6 m

Accessories

System accessories

Products	Types	Item no.	Quantity	SSU
Slide nut A4	MS41SN M10 A4	1147234	piece	50 piece
Hammer-head bolt A4	MS41HB M10x30 A4	1148422	piece	50 piece
Clamp clip, single, FT plastic pressure trough	2056U 22 FT	1175211	piece	100 piece
Clamp clip, single, FT plastic pressure trough	2056U 28 FT	1175289	piece	100 piece
Clamp clip, single, A2 plastic pressure trough	2056U 12 A2	1178504	piece	50 piece
