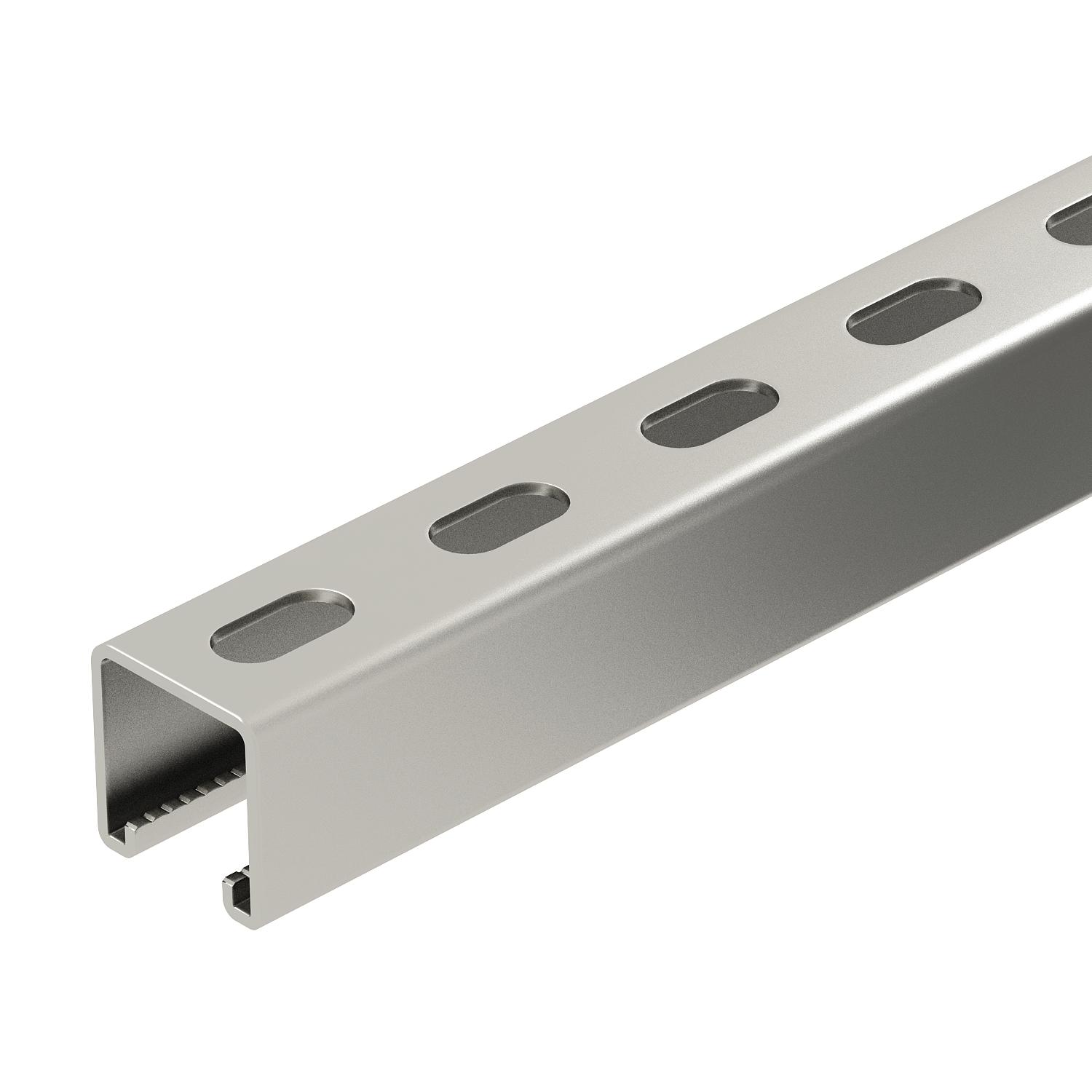

MS4141 mounting rail, slot 22 mm, A4, perforated 3000 | 41 | 41 | 2 | Bright, treated

MS4141 mounting rail, slot 22 mm, A4, perforated

Item no. 1122990 | EAN 4012195698272

Item no. / Types

Length

Width	41 mm

Height	41 mm

Material thickness	2 mm

Surface	Bright, treated

Product description

Product description

Heavy-duty C profile rail for individual installation of support constructions, e.g. for cable trays or as a panel for switchgear cabinets. Can also be used for cable routing, in conjunction with clamp clips with a U foot.

Technical data

Technical data

Breakable	no
Dimension	3000x41x41
Drill hole spacing, centre	50 mm
Hole size	14x28 mm
Maintain electrical functions	no
Material	Stainless steel
Material thickness	2 mm
Profile shape	C profile
Slot width	22 mm
Static value A	2,45 cm²

Static value ly	5,18 cm
Static value lz	7,56 cm
Static value Wy	2,51 cm²
Static value Wz	2,69 cm²
Surface	Bright, treated
Type of perforation	Perforated back
Version for	Single profile
With perforation	yes
With toothing	yes

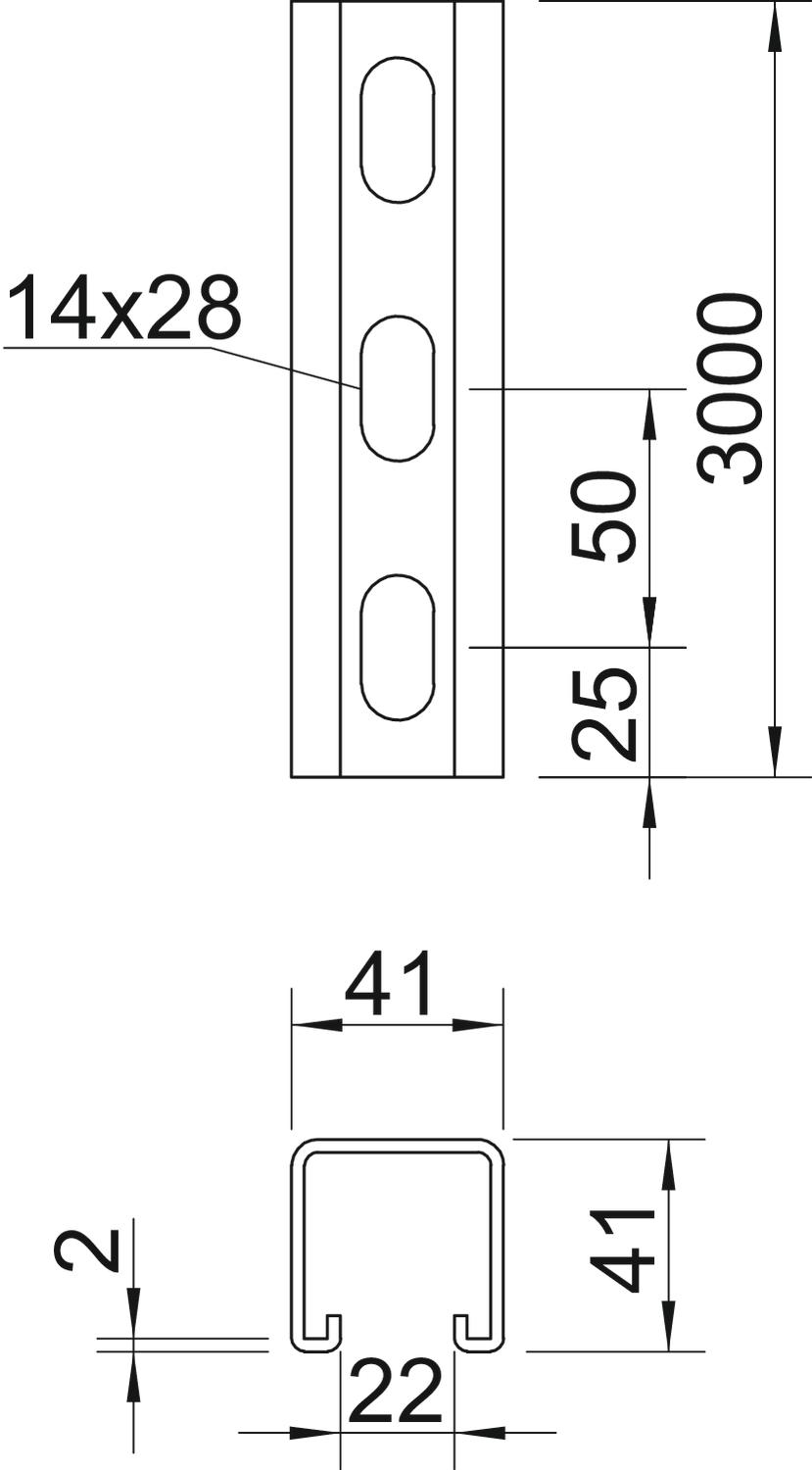

Dimensions

Dimension L	3000 mm
Height	41 mm

Length	3000 mm
Width	41 mm

All types

All types

Types	Length	Width	Height	Material thickness	Surface	Item no.	Quantity	SSU
MSL4141P1000A4	1000 mm	41 mm	41 mm	2 mm	Bright, treated	1122988	m	1 m
MSL4141P3000A4	3000 mm	41 mm	41 mm	2 mm	Bright, treated	1122990	m	3 m
MSL4141P6000A4	6000 mm	41 mm	41 mm	2 mm	Bright, treated	1122992	m	6 m
