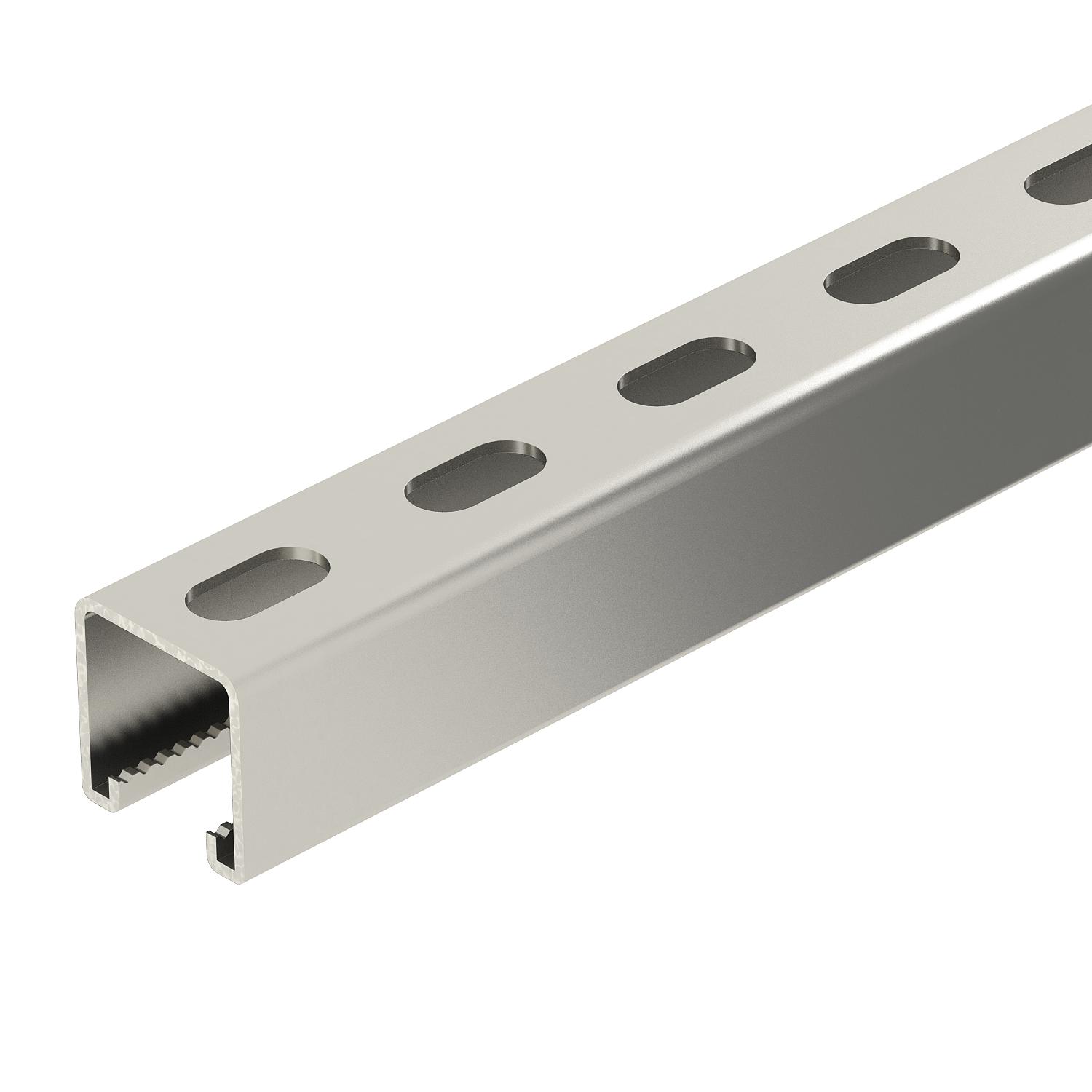

MS4141 mounting rail, slot 22 mm, perforated A4
Item no. 1123033 | EAN 4012195907138
- Product description
-
Product description
Heavy-duty C profile rail for individual installation of support constructions, e.g. for cable trays or as a panel for switchgear cabinets. Can also be used for cable routing, in conjunction with clamp clips with a U foot.
-
- Technical data
-
Technical data

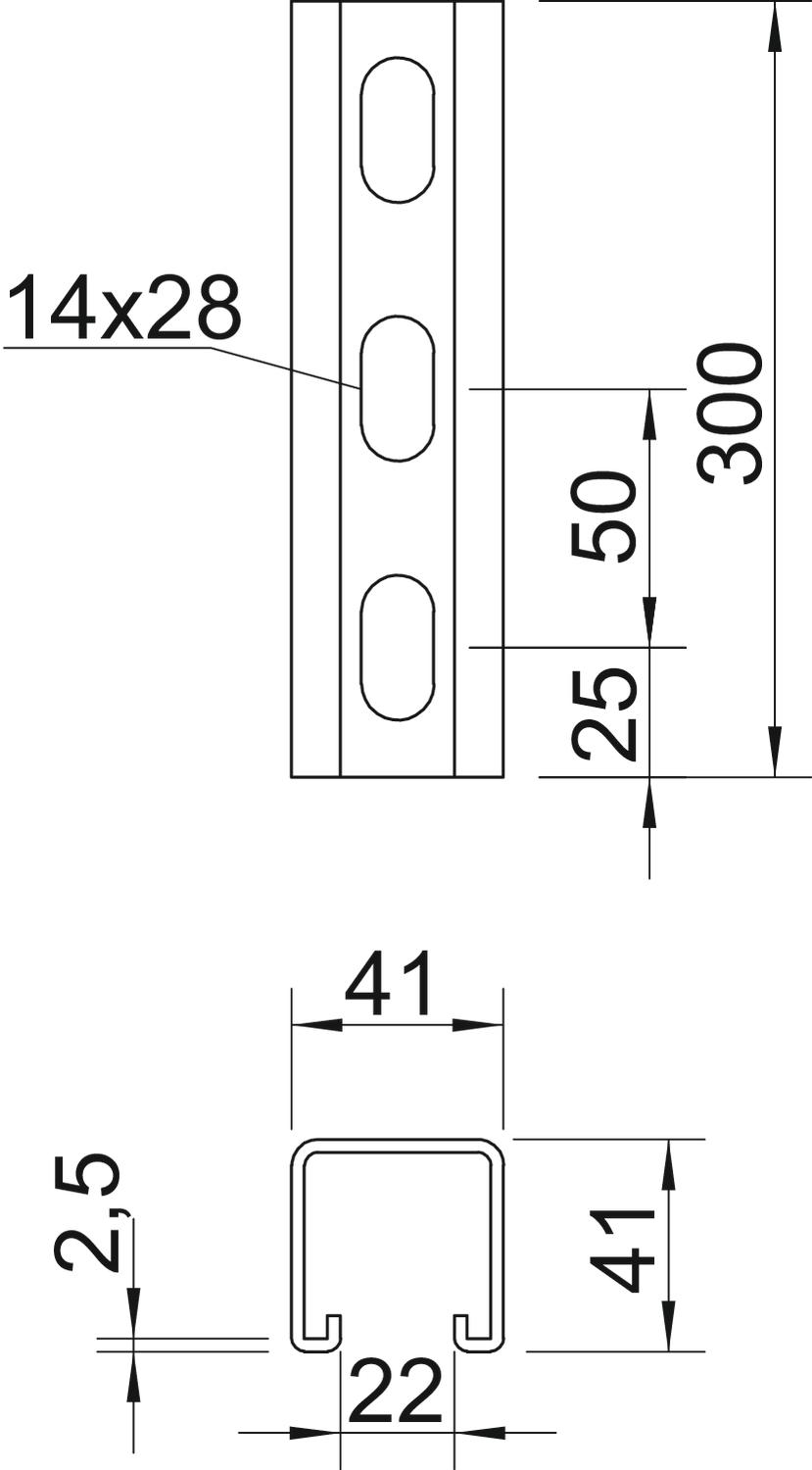

Breakable no Dimension 300x41x41 Drill hole spacing, centre 50 mm Hole size 14x28 mm Maintain electrical functions no Material Stainless steel Material thickness 2,5 mm Profile shape C profile Slot width 22 mm Static value A 2,97 cm² Static value ly 6,05 cm Static value lz 9,01 cm Static value Wy 2,91 cm² Static value Wz 4,4 cm² Surface Bright, treated Type of perforation Perforated back Version for Single profile With toothing yes Dimensions
Dimension L 300 mm Height 41 mm Length 300 mm Width 41 mm - All types
