MS5030 mounting rail, slot 22 mm 6000 | 50 | 30 | 3 | Bright

MS5030 mounting rail, slot 22 mm

Item no. 1121502 | EAN 4012195049395

Item no. / Types

Length

Width	50 mm

Height	30 mm

Material thickness	3 mm

Surface

Product description

Product description

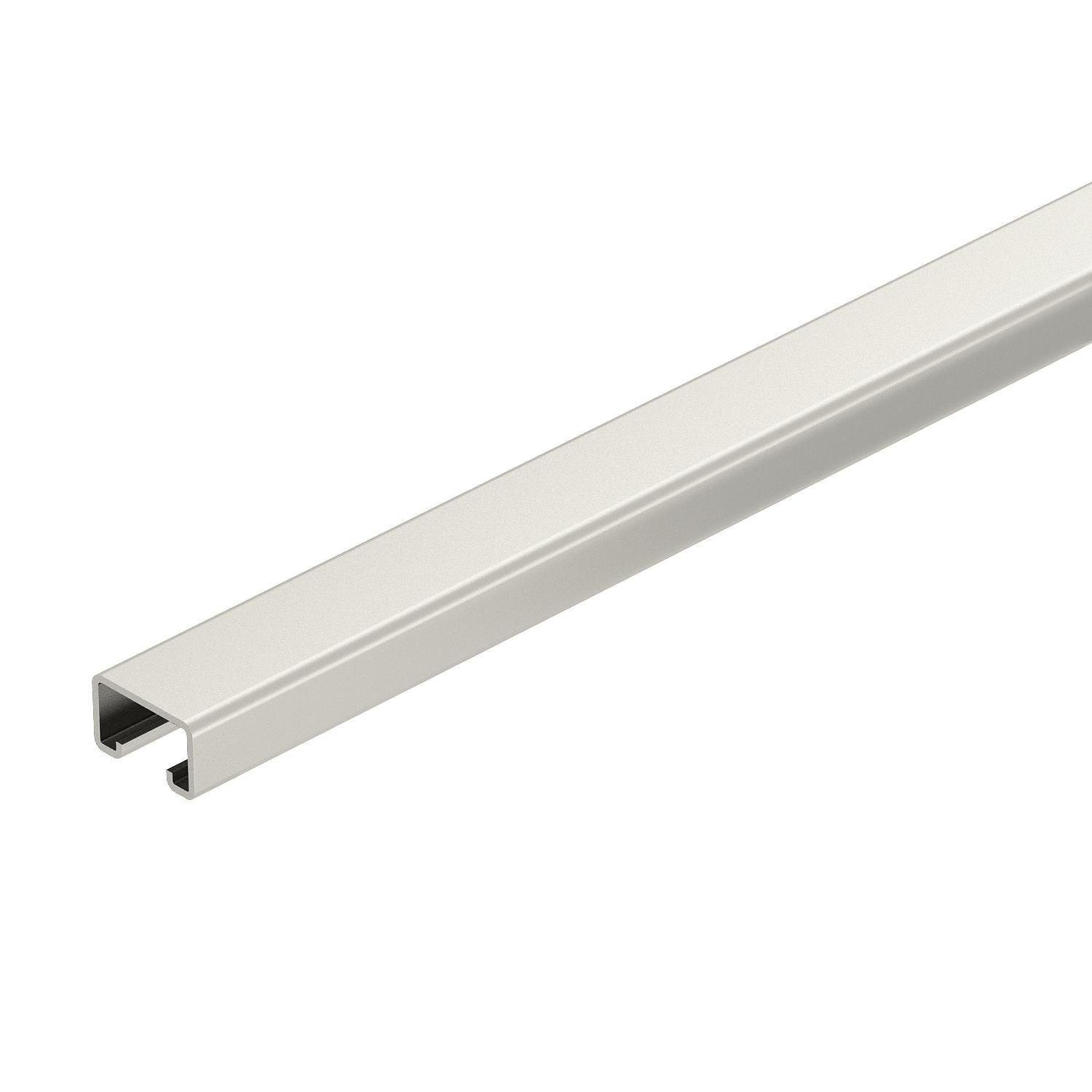

Heavy-duty C profile rail for individual installation of support constructions, e.g. for cable trays or as a panel for switchgear cabinets. Can also be used for cable routing, in conjunction with clamp clips with a U foot.

Technical data

Technical data

Breakable	no
Dimension	6000x50x30
Maintain electrical functions	no
Material	Steel
Material thickness	3 mm
Profile shape	C profile
Slot width	22 mm
Static value A	1,74 cm²
Static value ly	1,19 cm

Static value lz	4,46 cm
Static value Wy	1,05 cm²
Static value Wz	2,23 cm²
Surface	Bright
Type of perforation	Without
Version for	Single profile
With perforation	no
With toothing	no

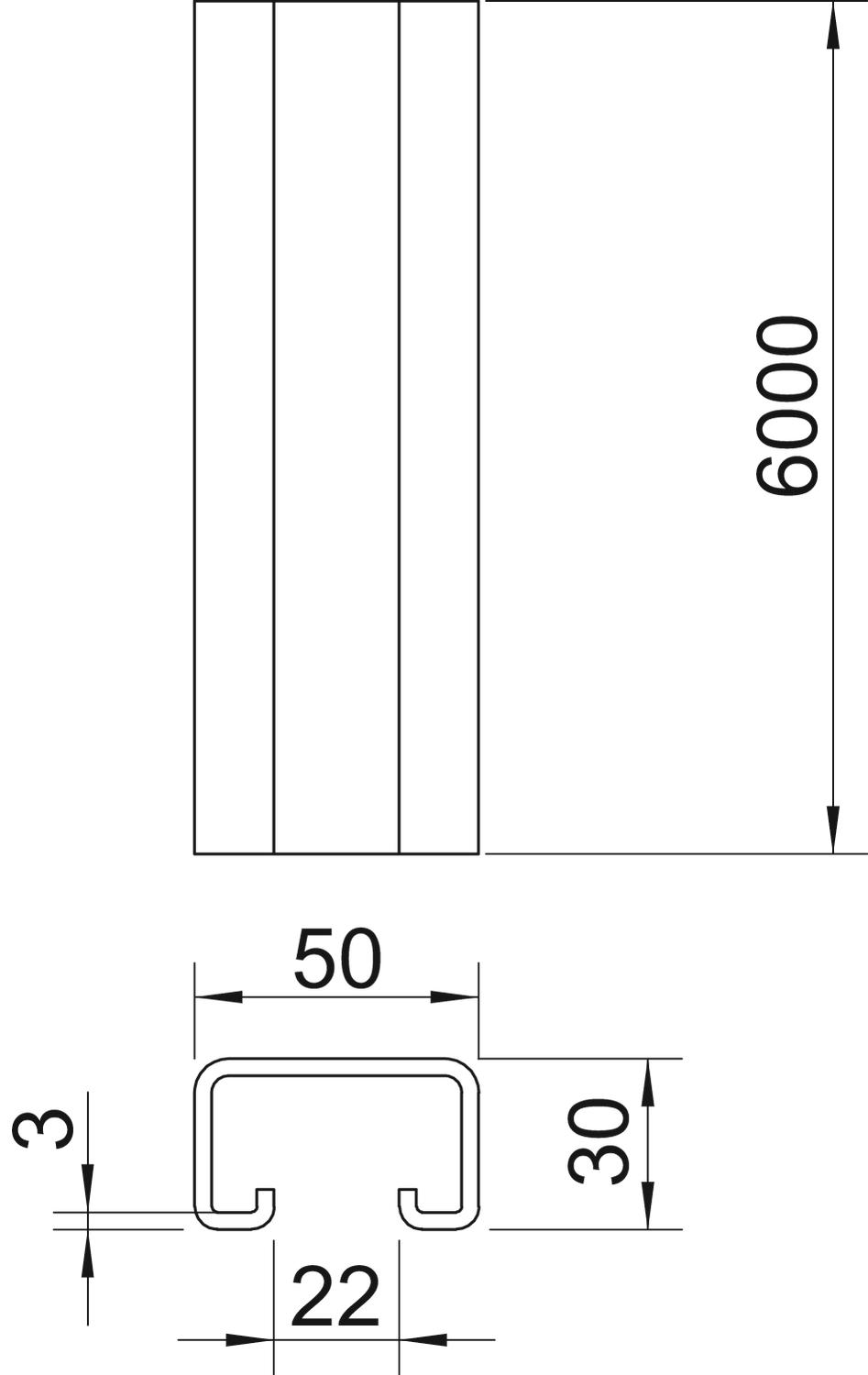

Dimensions

Dimension L	6000 mm
Height	30 mm

Length	6000 mm
Width	50 mm

All types

All types

Types	Length	Width	Height	Material thickness	Surface	Item no.	Quantity	SSU
MS5030UP6000BK	6000 mm	50 mm	30 mm	3 mm	Bright	1121502	m	6 m
MS5030UP2000FT	2000 mm	50 mm	30 mm	3 mm	Hot-dip galvanised	1121524	m	20 m
MS5030UP6000FT	6000 mm	50 mm	30 mm	3 mm	Hot-dip galvanised	1121529	m	6 m
