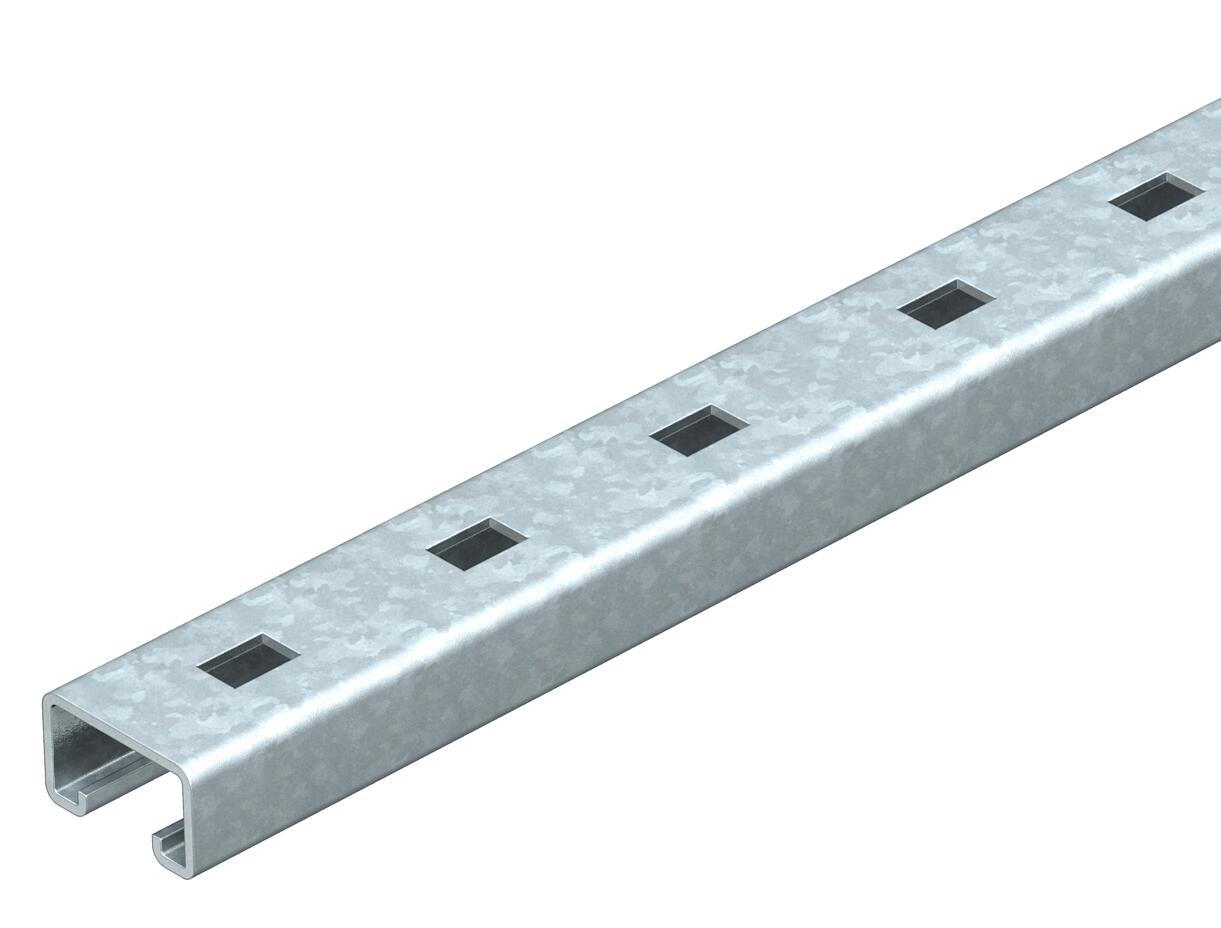

MS5030 mounting rail, slot 22 mm, FT, perforated 380 | 50 | 30 | 3 | Hot-dip galvanised

MS5030 mounting rail, slot 22 mm, FT, perforated

Item no. 6349463 | EAN 4012196191956

Item no. / Types

Length

Width	50 mm

Height	30 mm

Material thickness	3 mm

Surface	Hot-dip galvanised

Product description

Product description

Heavy-duty C profile rail for individual installation of support constructions, e.g. for cable trays or as a panel for switchgear cabinets. Can also be used for cable routing, in conjunction with clamp clips with a U foot.

Technical data

Technical data

Breakable	no

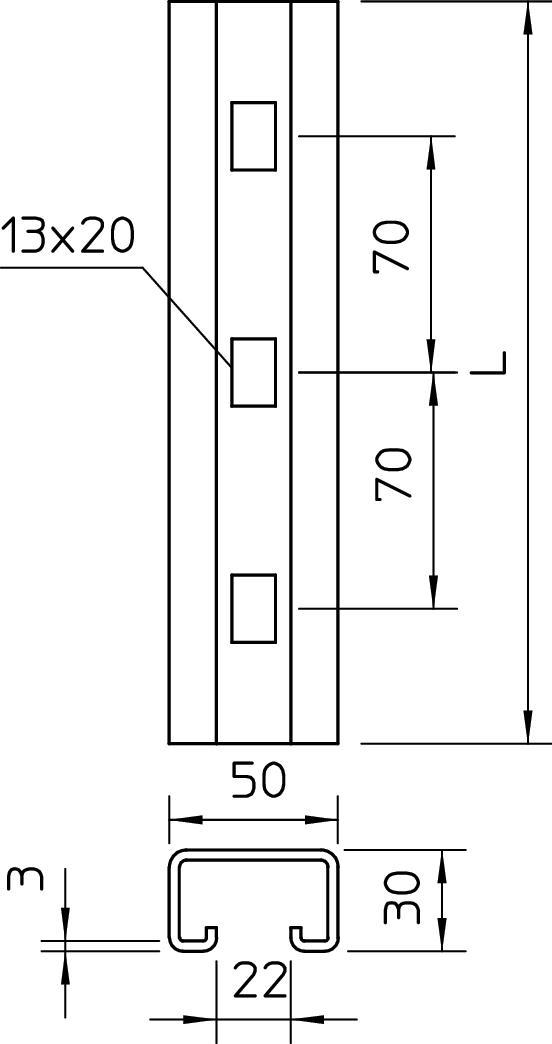

Dimension	380x50x30
Drill hole spacing, centre	70 mm
Maintain electrical functions	no
Material	Steel
Material thickness	3 mm
Profile shape	C profile
Slot width	22 mm
Static value A	3,39 cm²

Static value ly	3,99 cm
Static value lz	13,11 cm
Static value Wy	3,95 cm²
Static value Wz	6,38 cm²
Surface	Hot-dip galvanised
Type of perforation	Perforated back
Version for	Single profile
With perforation	yes
With toothing	no

Dimensions

Dimension L	380 mm
Height	30 mm

Length	380 mm
Width	50 mm

All types

All types

Types	Length	Width	Height	Material thickness	Surface	Item no.	Quantity	SSU
MS5030RP0220FT	220 mm	50 mm	30 mm	3 mm	Hot-dip galvanised	6349404	piece	1 piece
MS5030RP0260FT	260 mm	50 mm	30 mm	3 mm	Hot-dip galvanised	6349412	piece	1 piece
MS5030RP0300FT	300 mm	50 mm	30 mm	3 mm	Hot-dip galvanised	6349439	piece	1 piece
MS5030RP0340FT	340 mm	50 mm	30 mm	3 mm	Hot-dip galvanised	6349447	piece	1 piece
MS5030RP0380FT	380 mm	50 mm	30 mm	3 mm	Hot-dip galvanised	6349463	piece	1 piece

Accessories

System accessories

Products	Types	Item no.	Quantity	SSU
Slide nut ZL	MS50SN M10 ZL	1147164	piece	50 piece
Hook-head screw ZL	MS50HB M10x30 ZL	1148218	piece	50 piece
Clamp clip, single, FT plastic pressure trough	2056U 22 FT	1175211	piece	100 piece
Clamp clip, single, FT plastic pressure trough	2056U 28 FT	1175289	piece	100 piece
