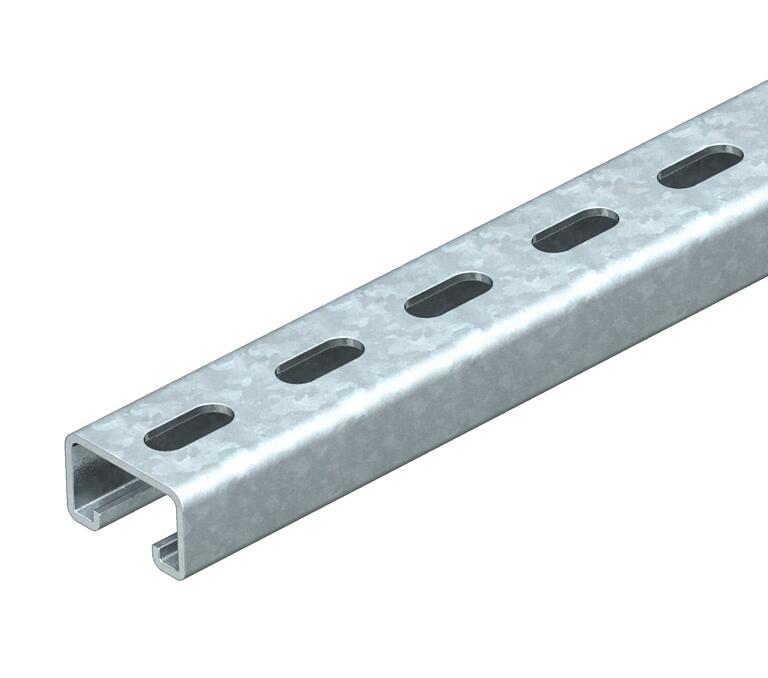

MS5030 mounting rail, slot 22 mm, FT, perforated 400 | 50 | 30 | 3 | Hot-dip galvanised

MS5030 mounting rail, slot 22 mm, FT, perforated

Item no. 1121278 | EAN 4012195672555

Item no. / Types

Length

Width	50 mm

Height	30 mm

Material thickness	3 mm

Surface	Hot-dip galvanised

Product description

Product description

Heavy-duty C profile rail for individual installation of support constructions, e.g. for cable trays or as a panel for switchgear cabinets. Can also be used for cable routing, in conjunction with clamp clips with a U foot.

Technical data

Technical data

Breakable	no

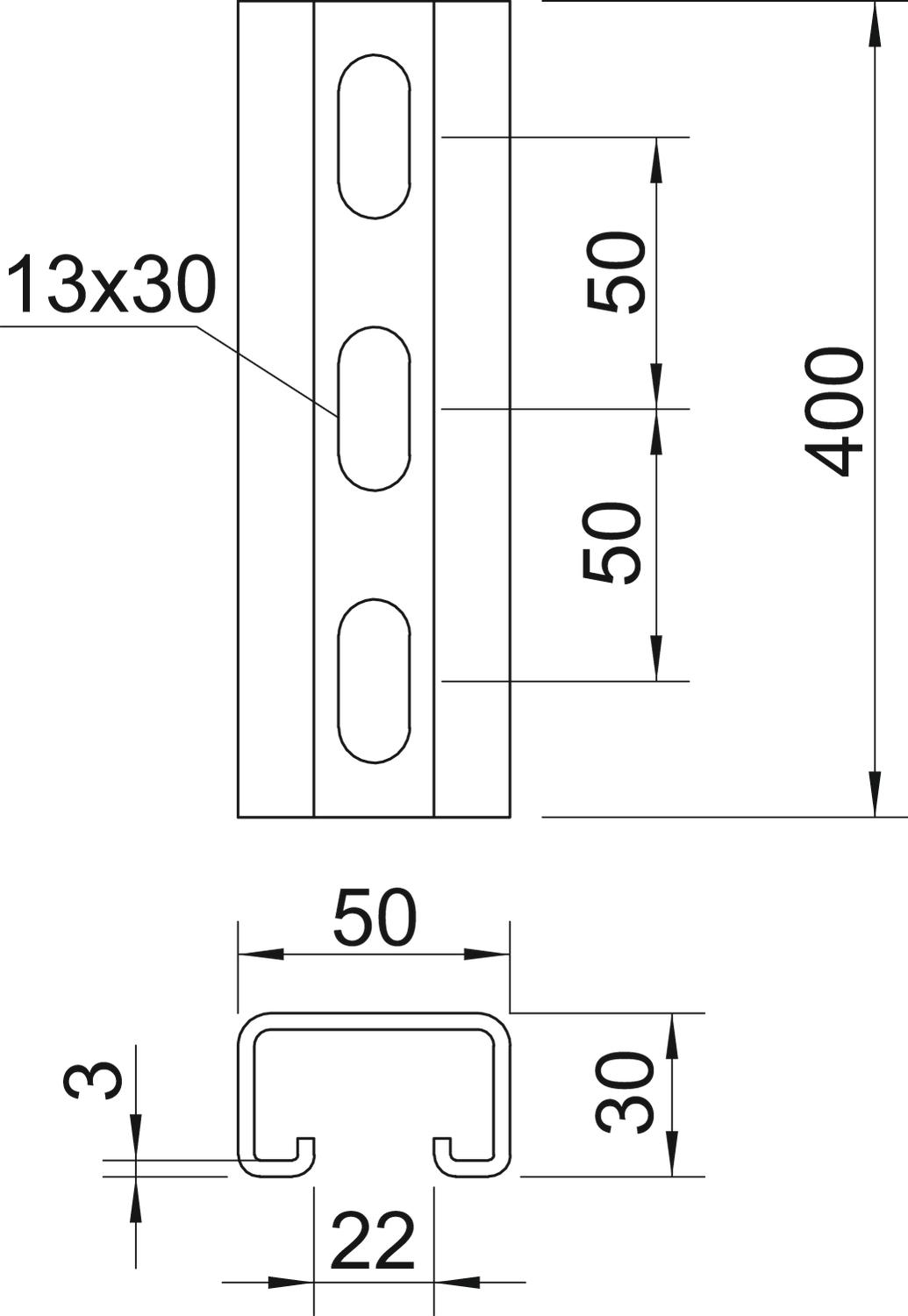

Dimension	400x50x30
Dimension L	400 mm
Drill hole spacing, centre	50 mm
Height	30 mm
Length	400 mm
Maintain electrical functions	yes
Material	Steel
Material thickness	3 mm
Profile shape	C profile
Slot width	22 mm

Static value A	3,39 cm²
Static value ly	3,99 cm
Static value lz	13,11 cm
Static value Wy	3,95 cm²
Static value Wz	6,38 cm²
Surface	Hot-dip galvanised
Type of perforation	Perforated back
Version for	Single profile
Width	50 mm
With perforation	yes
With toothing	no

All types

All types

Types	Length	Width	Height	Material thickness	Surface	Item no.	Quantity	SSU
MS5030P0300FT	300 mm	50 mm	30 mm	3 mm	Hot-dip galvanised	1121243	piece	1 piece
MS5030P0400FT	400 mm	50 mm	30 mm	3 mm	Hot-dip galvanised	1121278	piece	1 piece
MS5030P0600FT	600 mm	50 mm	30 mm	3 mm	Hot-dip galvanised	1121294	piece	1 piece
MS5030P0800FT	800 mm	50 mm	30 mm	3 mm	Hot-dip galvanised	1121308	piece	1 piece
MS5030P0700FT	700 mm	50 mm	30 mm	3 mm	Hot-dip galvanised	1121332	piece	1 piece
MS5030P0900FT	900 mm	50 mm	30 mm	3 mm	Hot-dip galvanised	1121336	piece	1 piece
MS5030P1500FT	1500 mm	50 mm	30 mm	3 mm	Hot-dip galvanised	1121363	piece	1 piece
MS5030P0200FT	200 mm	50 mm	30 mm	3 mm	Hot-dip galvanised	1121391	piece	1 piece
MS5030P0500FT	500 mm	50 mm	30 mm	3 mm	Hot-dip galvanised	1121405	piece	1 piece

Accessories

System accessories

Products	Types	Item no.	Quantity	SSU
Slide nut ZL	MS50SN M10 ZL	1147164	piece	50 piece
Hook-head screw ZL	MS50HB M10x30 ZL	1148218	piece	50 piece
Clamp clip, single, FT plastic pressure trough	2056U 22 FT	1175211	piece	100 piece
Clamp clip, single, FT plastic pressure trough	2056U 28 FT	1175289	piece	100 piece
