MSL4141 mounting rail, slot 22 mm, FS, perforated 200 | 41 | 41 | 2 | Strip galvanized
morepic-1 morepic-2 video-1

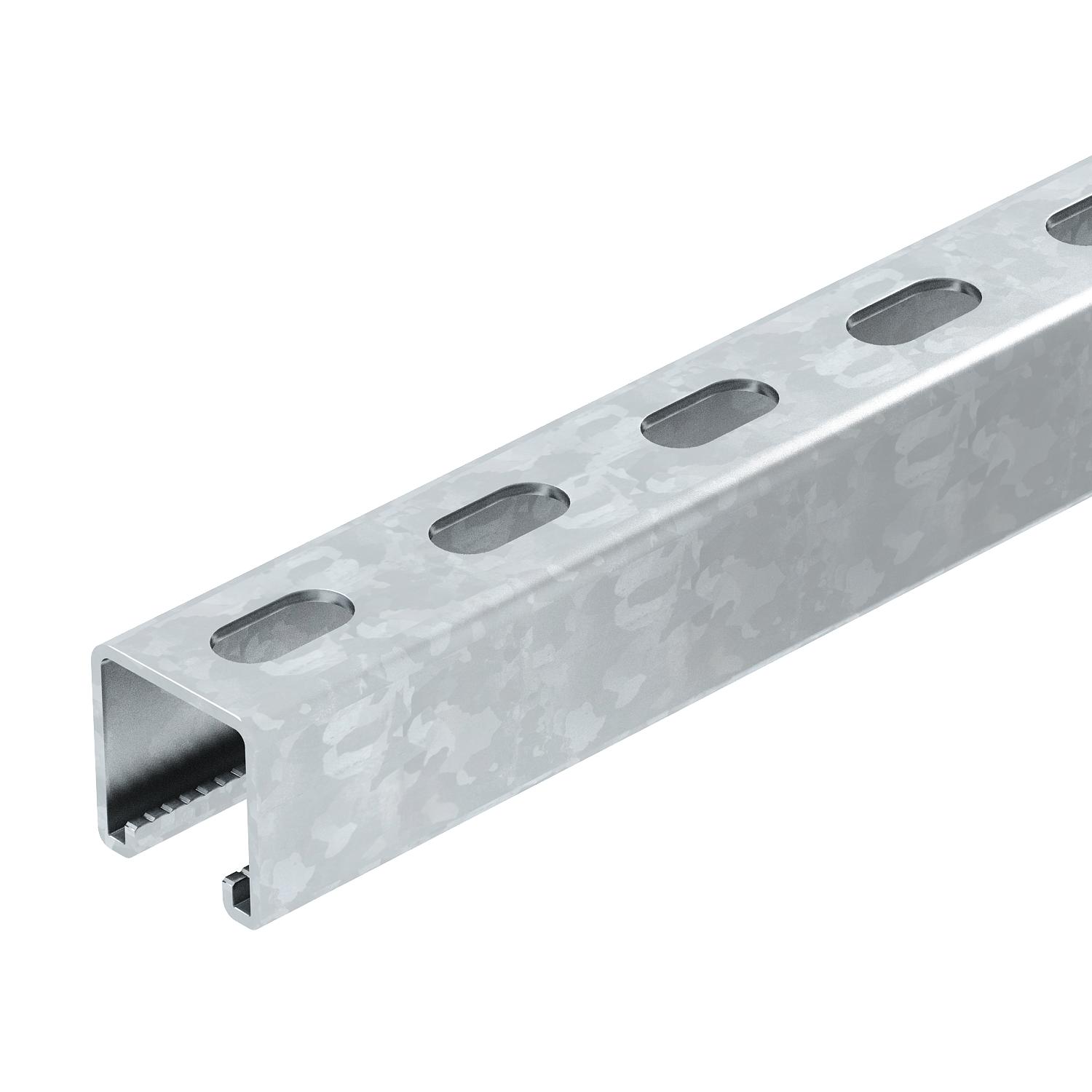

MSL4141 mounting rail, slot 22 mm, FS, perforated

Item no. 1123262 | EAN 4012196471232

41 mm
41 mm
2 mm
Strip galvanized
Product description

Product description

Heavy-duty C profile rail for individual installation of support constructions, e.g. for cable trays or as a panel for switchgear cabinets. Can also be used for cable routing, in conjunction with clamp clips with a U foot.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Clamp clip for C profile rail, slot width 18–22 mm
  • Slot width 22 mm
Technical data

Technical data

Breakable no
Dimension 200x41x41
Maintain electrical functions no
Material Steel
Material thickness 2 mm
Profile shape C profile
Slot width 22 mm
Static value A 2,45 cm²
Static value ly 5,18 cm
Static value lz 7,56 cm
Static value Wy 2,51 cm²
Static value Wz 2,69 cm²
Surface Strip galvanized
Type of perforation Perforated back
Version for Single profile
With perforation yes
With toothing yes

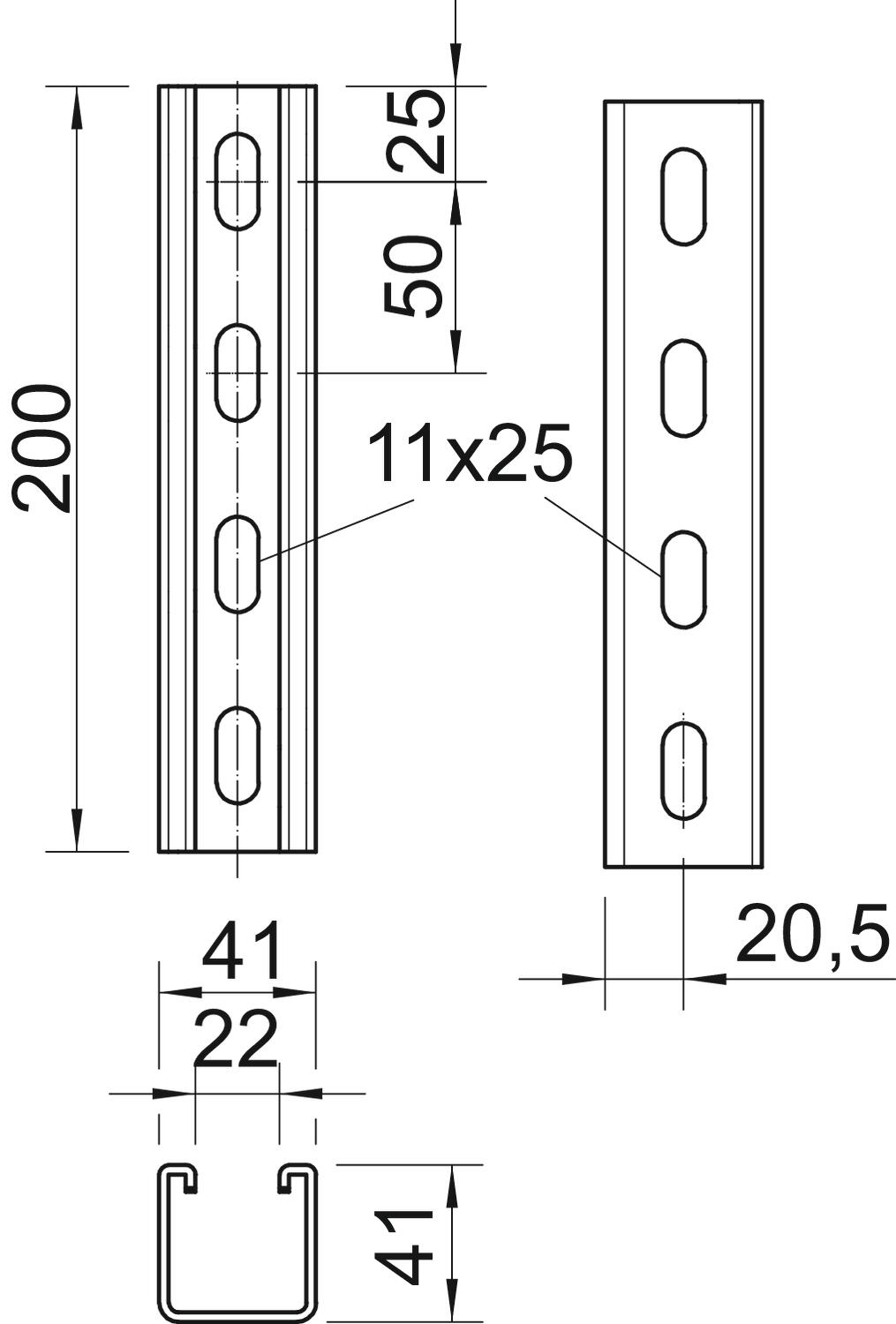

Dimensions

Dimension L 200 mm
Height 41 mm
Length 200 mm
Width 41 mm
All types

All types

Types Length Width Height Material thickness Surface Item no. Quantity SSU
MSL4141P0200FS 200 mm 41 mm 41 mm 2 mm Strip galvanized 1123262
1 piece
MSL4141P0300FS 300 mm 41 mm 41 mm 2 mm Strip galvanized 1123264
1 piece
MSL4141P0400FS 400 mm 41 mm 41 mm 2 mm Strip galvanized 1123266
1 piece
MSL4141P0500FS 500 mm 41 mm 41 mm 2 mm Strip galvanized 1123268
1 piece
MSL4141P0600FS 600 mm 41 mm 41 mm 2 mm Strip galvanized 1123270
1 piece
MSL4141P0700FS 700 mm 41 mm 41 mm 2 mm Strip galvanized 1123272
1 piece
MSL4141P0800FS 800 mm 41 mm 41 mm 2 mm Strip galvanized 1123274
1 piece
MSL4141P0900FS 900 mm 41 mm 41 mm 2 mm Strip galvanized 1123276
1 piece
Accessories

System accessories

Products Types Item no. Quantity SSU
Slide nut ZL Slide nut ZL MS41SN M10 ZL 1147214
50 piece
Hammer-head bolt ZL Hammer-head bolt ZL MS41HB M10x30 ZL 1148322
50 piece
Clamp clip, single, FT plastic pressure trough Clamp clip, single, FT plastic pressure trough 2056U 22 FT 1175211
100 piece
Clamp clip, single, FT plastic pressure trough Clamp clip, single, FT plastic pressure trough 2056U 28 FT 1175289
100 piece
